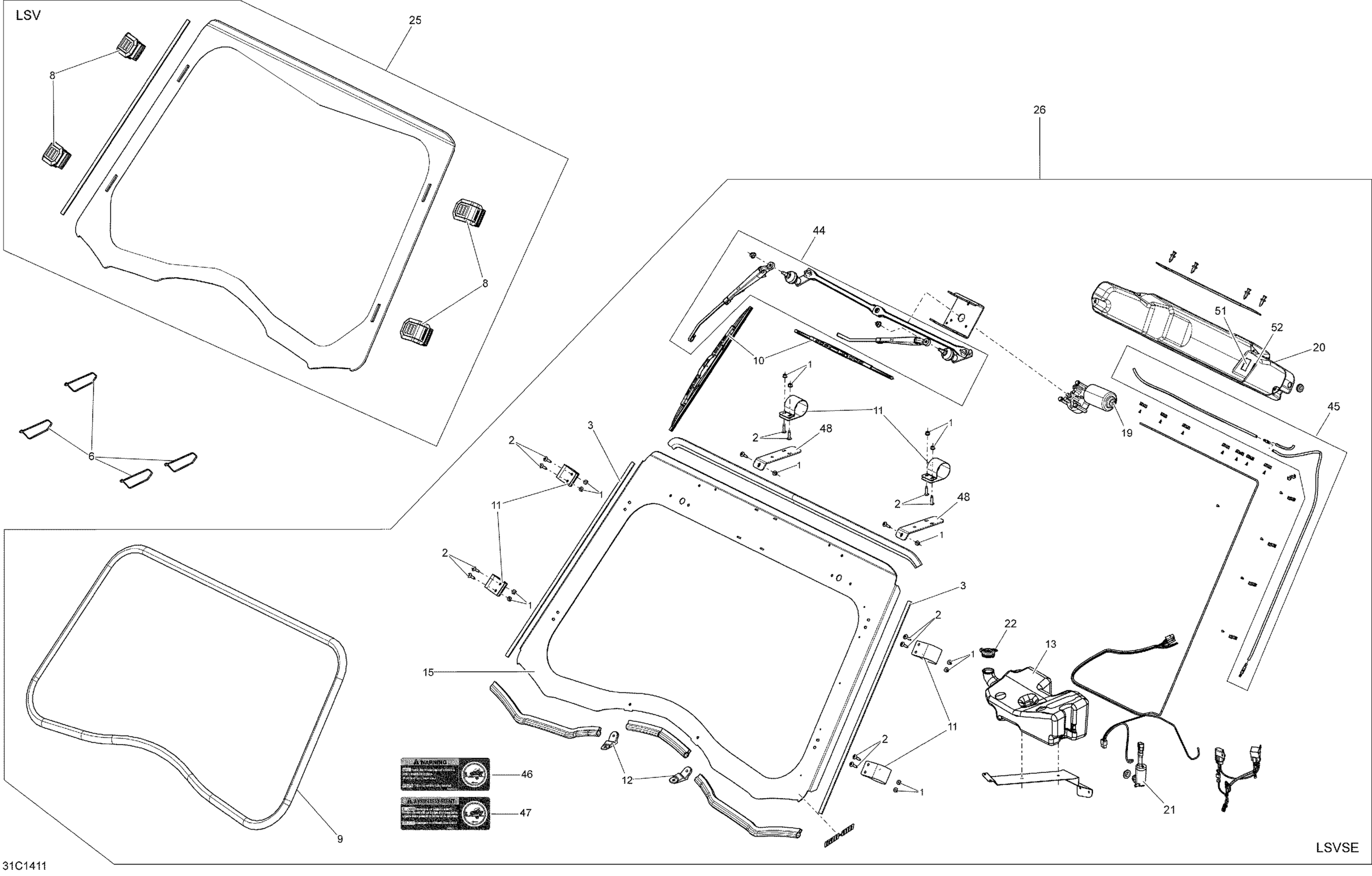

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2014 Body And Accessories Windshield_31C1411 Diagram

#

Description
Price

1

Hex. Flange Elastic Nut M6

233261494

$1.26

2

Torx Screw M6 X 25 | XT Models

250000728

$3.61

3

Gasket, Neoprene 2000Mm Long

219704476

$12.64

6

Tie Wrap 368 mm

293750008

$0.85

8

Retainer Velcro Perforated

705013420

$40.74

9

GLASS WINDSHIELD - Call your local BRP dealership | Package LSVSE

705004590

Unavailable

10

Wiper | Package LSVSE

705005144

$50.74

11

P-Bracket, 2" | Package LSVSE

705005606

$23.05

12

Windshield Support | LTD

705005776

$12.91

13

Wiper Fluid Tank | Package LSVSE

705006422

$166.12

15

Windshield Frame | Package LSVSE

705006968

Unavailable

19

Wiper Motor | Package LSVSE

705006977

$350.74

20

Linkage Wiper Cover | Package LSVSE

705006978

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

WIPER FLUID TANK CAP - Call your local BRP dealership | Package LSVSE

705006980

Unavailable

25

Windshield Ass'y, Polycarbonate | LSV With Polycarbonate Windshield

708200254

Unavailable

26

WINDSHIELD ASS'Y, GLASS - Call your local BRP dealership | LSV With Glass Windshield

715001678

Unavailable

44

WIPER ARM KIT - Call your local BRP dealership | Package LSVSE

703500820

Unavailable

45

WIPER FLUID HOSE KIT - Call your local BRP dealership | Package LSVSE

703500821

Unavailable

46

Warning Decal, Trailer | LSV

704902916

Unavailable

47

Warning Decal Trailer-French | Package LSVSE

704902918

Unavailable

48

WINDSHIELD STIFFNER - Call your local BRP dealership | Package LSVSE

705006969

Unavailable

51

WIPER SWITCH - Call your local BRP dealership | Package LSVSE

710003316

Unavailable

52

Fluid Wiper Switch | Package LSVSE

710003317

Unavailable
