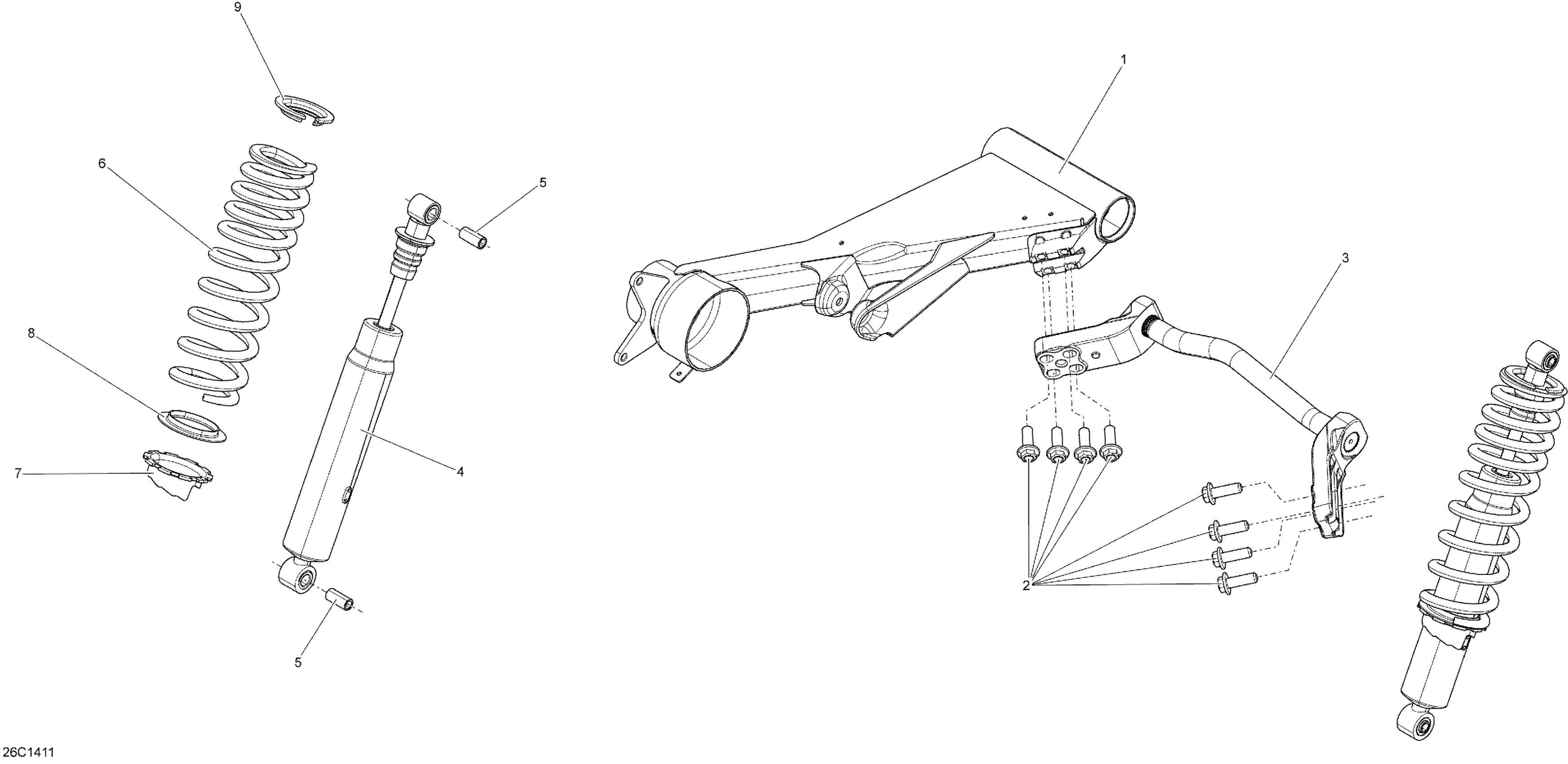

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2014 Rear Suspension _26C1411 Diagram

#

Description

Price

1

LH SWING ARM - Call your local BRP dealership

706001416

Unavailable

2

Hex. Flange Screw M12 X 35, Scotch Grip

207523544

$3.25

3

SWAY-BAR - Call your local BRP dealership

706002298

Unavailable

4

Rear Shock | STD, XT

706000615

$186.12

5

Bushing

715900122

$9.57

6

SPRING - Call your local BRP dealership

706001167

Unavailable

7

Adjustment Ring

706000910

$14.37

8

Protector Ring | STD, XT

706000911

$7.60

9

Spring Stopper

706000567

$15.35
