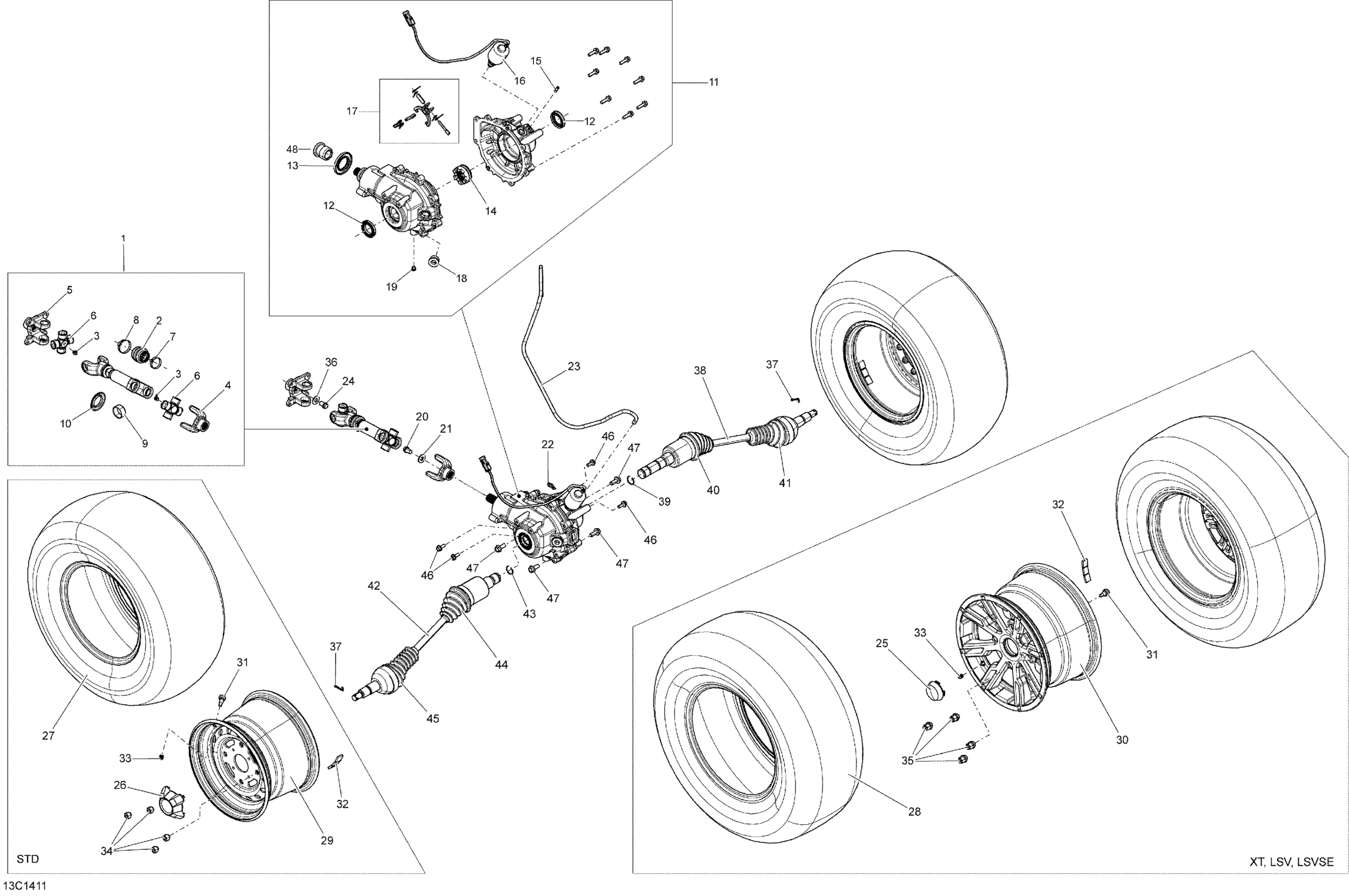

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2014 Drive System, Rear _13C1411 Diagram

#

Description
Price

1

Rear Propeller Shaft Kit | Includes 1 to 9

703500801

$396.99

2

Rubber Boot

715900118

$13.28

3

Grease Fitting

715900184

$4.09

4

Fixe Yoke

715900101

$26.84

5

FLANGE - Call your local BRP dealership

715900291

Unavailable

6

Universal Joint

715900326

$64.15

7

Oetiker Gear Clamp 36.1MM

509000045

$4.07

8

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

9

Wear Ring | 4X4

705400036

$24.60

10

Protector

705501123

$5.90

11

Rear Differential Ass'y | Includes 30 to 30j

705501942

$1,924.60

12

SEAL - Call your local BRP dealership | 4X4

705501824

Unavailable

13

SEAL - Call your local BRP dealership

705501975

Unavailable

14

GEAR - Call your local BRP dealership

705501825

Unavailable

15

VENT VALVE - Call your local BRP dealership

705501826

Unavailable

16

SOLENOID - Call your local BRP dealership

710003430

Unavailable

17

SHIFT YOKE KIT - Call your local BRP dealership

705501829

Unavailable

18

FILL PLUG - Call your local BRP dealership

705501828

Unavailable

19

Drain Plug

705501827

$13.03

20

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

21

Flat Washer M12

250200102

$2.00

22

Tie Wrap 142 mm

293750002

$1.01

23

Polyurethane Hose 10000Mm Long

219704410

$52.96

24

Hex Flange Screw M12 X 16

250001039

$2.00

25

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

26

Wheel Cap | STD

705400921

$4.36

27

TIRE_25X11R12 REAR - Call your local BRP dealership | STD

705501539

Unavailable

27

Rear Tire | STD Model Europe

705501434

$142.51

28

27X11R14 Rear Tire

705502665

$237.28

28

Rear Tire | XT Europe

705501295

$241.01

28

TIRE_26X11R14 REAR - Call your local BRP dealership | LSV

705501775

Unavailable

29

RIM_12 INCH X 8 - Call your local BRP dealership | STD

705501249

Unavailable

29

Black, Rear Rim

705501623

$191.01

30

RIM 14 INCH X 8,5 - Call your local BRP dealership | XT International Except Camo

705501812

Unavailable

30

Rear Rim

705501813

$188.78

31

Rim Valve With Cap

705400193

$6.49

32

1/2 Oz Weight

219704465

$4.22

33

Valve Cap

293000110

$1.15

34

Steel Wheel Nut

250100042

$3.07

35

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.15

36

Flat Washer M12

250200102

$2.00

37

Cotter Pin

250400036

$2.00

38

RH HALF SHAFT - Call your local BRP dealership | Includes 25 to 28

705501967

Unavailable

39

CIRCLIP - Call your local BRP dealership | 4X4

705501832

Unavailable

40

BOOT_CV JOINT KIT - Call your local BRP dealership

705501830

Unavailable

41

BOOT_CV JOINT KIT - Call your local BRP dealership | 4X4

705501831

Unavailable

42

LH HALF SHAFT - Call your local BRP dealership | Includes 240 to 240c

705501968

Unavailable

43

CIRCLIP - Call your local BRP dealership | 4X4

705501832

Unavailable

44

BOOT_CV JOINT KIT - Call your local BRP dealership

705501830

Unavailable

45

BOOT_CV JOINT KIT - Call your local BRP dealership | 4X4

705501831

Unavailable

46

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

47

Hex. Flange Screw M10 X 25

207502546

$2.00

48

SLEEVE - Call your local BRP dealership

705502247

Unavailable
