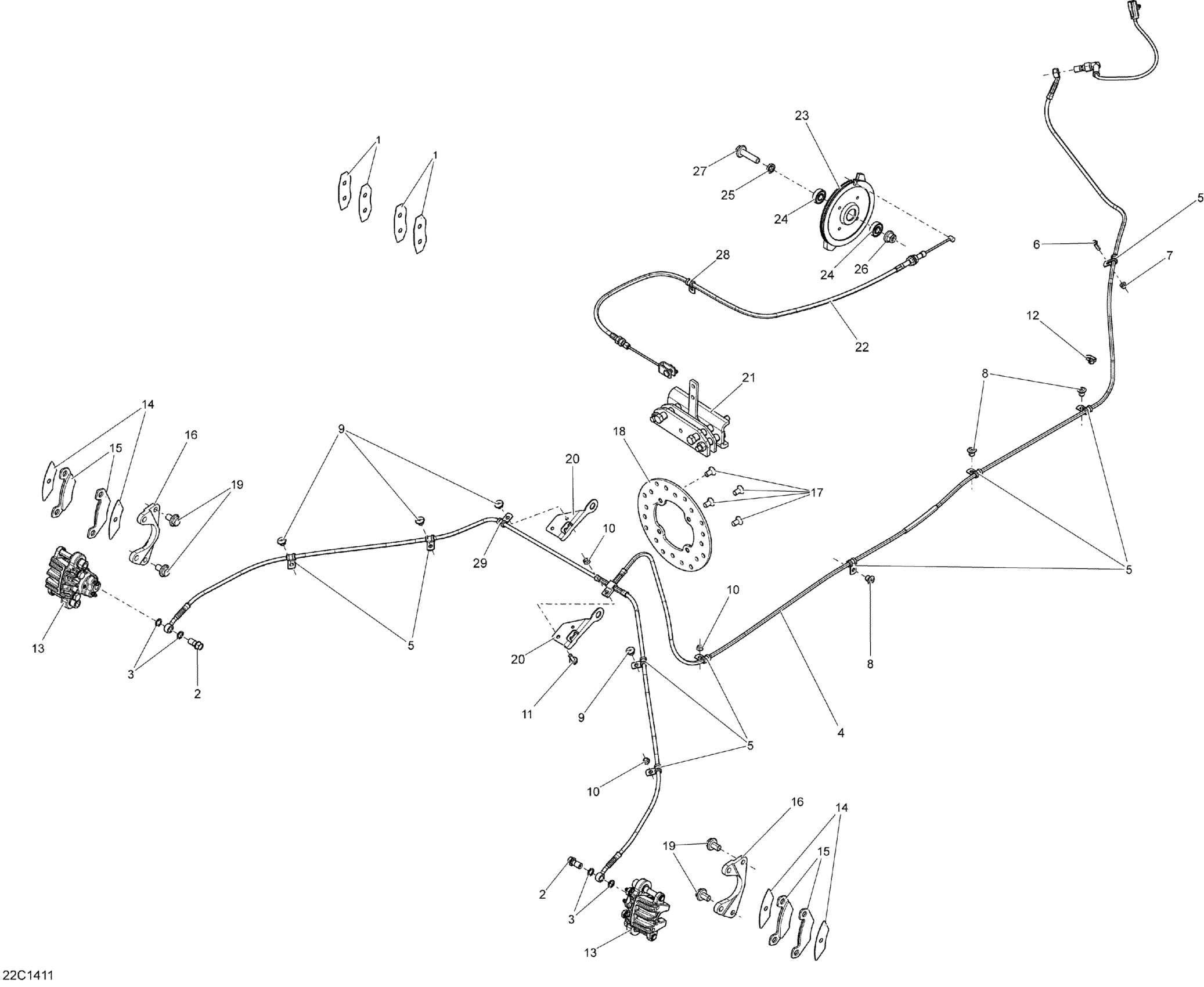

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2014 Brakes _22C1411 Diagram

#

Description
Price

1

BRAKE SHIM KIT - Call your local BRP dealership

705601232

Unavailable

2

Banjo Bolt

705600628

$11.05

3

Copper Washer

705601628

$4.34

4

FLEXIBLE HOSE - Call your local BRP dealership | Includes 85 to 85a

705601488

Unavailable

5

Clamp

293650256

$4.36

6

Hex. Forming Screw M5 X 16

210251650

$0.92

7

Elastic Flange Nut M5

233251494

$1.74

8

Pop Rivet 3/16"

293150123

$3.43

9

Pop Rivet 3/16"

390402200

$0.26

10

Elastic Stop Nut M6

232561434

$1.55

11

Hex. Flange Screw M6 X 16

207661644

$0.61

12

Tie-Rap 180 mm

414115200

$0.09

13

Rear Caliper | Model-Europe

705601303

Unavailable

13

REAR CALIPER - Call your local BRP dealership

705601056

Unavailable

14

BRAKE SHIM KIT - Call your local BRP dealership

705601231

Unavailable

15

Brake Pad Kit

705600711

$46.89

16

Rear Caliper Support

705601057

$161.51

17

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

18

Disk Brake

705600604

$56.89

19

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

20

Bracket

705601111

Unavailable

21

CALIPER - Call your local BRP dealership

705601112

Unavailable

22

BRAKE CABLE - Call your local BRP dealership

705601071

$17.66

23

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$87.66

24

Bearing

705600458

$7.03

25

Bushing

293900087

$7.60

26

Hex. Flange Elastic Nut M10

233201436

$1.74

27

Hex. Flange Screw M10 X 40

207604044

$2.06

28

Clamp

293650256

$4.36

29

Clamp

293650256

$4.36
