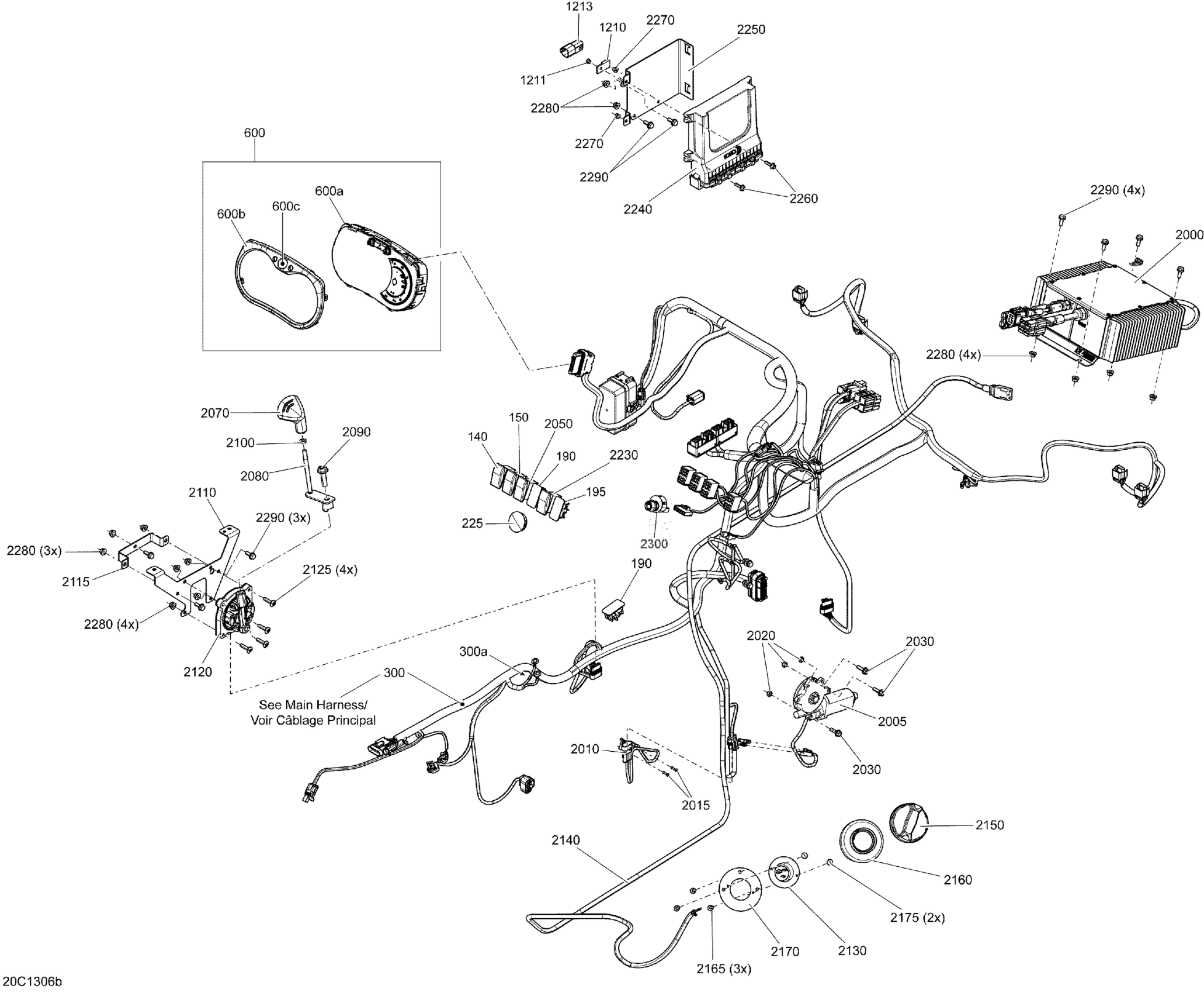

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2013 Electrical System 2 Diagram

#

Description
Price

140

Hi/Low Switch | Except Europe

710001725

$23.74

150

4X4 Switch

710001737

$32.28

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

195

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

225

Plug

710003284

Unavailable

300

WIRING HARNESS ASSY - Call your local BRP dealership

710003770

Unavailable

300a

CAPACITOR CABLE - Call your local BRP dealership

710003429

Unavailable

600

SPEEDOMETER ASS'Y - Call your local BRP dealership | Includes 600 to 600c

710002864

Unavailable

600a

CALIBRATED SPEEDOMETER - Call your local BRP dealership | LTD Model

710003290

Unavailable

600b

Trim Ring Ass'y

710001183

$18.43

600c

BRP Logo13 mm

704904615

$9.66

1210

Clip

270000141

$8.33

1211

Pop Rivet 3/16"

390402400

$0.25

1213

Diagnostic Connector

278002704

$15.57

2000

CHARGER, 48 VOLTS - Call your local BRP dealership

710002805

Unavailable

2005

Windshield Motor

278002579

$184.57

2010

Brake Pressure Switch Ass'y

710001379

$41.51

2015

Pop Rivet

293150150

$2.31

2020

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2030

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

2050

SWITCH - Call your local BRP dealership

710002879

Unavailable

2070

Lever Handle

707000284

$18.43

2080

UPPER SHIFTER ARM - Call your local BRP dealership

710002929

Unavailable

2090

Hex. Flange Screw M10 X 35

207503544

$7.17

2100

Hex. Jam Nut M8

232180491

$6.18

2110

Potentiometer Support

710002932

Unavailable

2115

Potentiomete Stifner

710003451

Unavailable

2120

SHIFTER POTENTIOMETER - Call your local BRP dealership

710002933

Unavailable

2125

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

2130

INLET, 15A 125V - Call your local BRP dealership

710002934

Unavailable

2140

Charging Cable

710002935

Unavailable

2150

Fuel Cap | Except Europe

709000529

$28.92

2160

Upper Inlet Support

710002936

$26.89

2165

Torx Screw K50 X 16

250000720

$1.39

2170

Lower Inlet Support

710003246

Unavailable

2175

Pop Rivet 5/32"

293150170

$3.02

2230

DIFFERENTIAL SWITCH - Call your local BRP dealership

710002958

Unavailable

2240

VCM MODULE - Call your local BRP dealership

710003777

Unavailable

2250

Support

710003323

Unavailable

2260

Hex.Flange Screw M5 X 20

207652044

$1.56

2270

Hex. Flange Elastic Nut M5

233251414

$1.66

2280

Hex. Flange Nut M6

233061414

$1.34

2290

Hex. Flange Screw M6 X 16

207661644

$0.61

2300

Ignition Switch

710008400

$78.43
