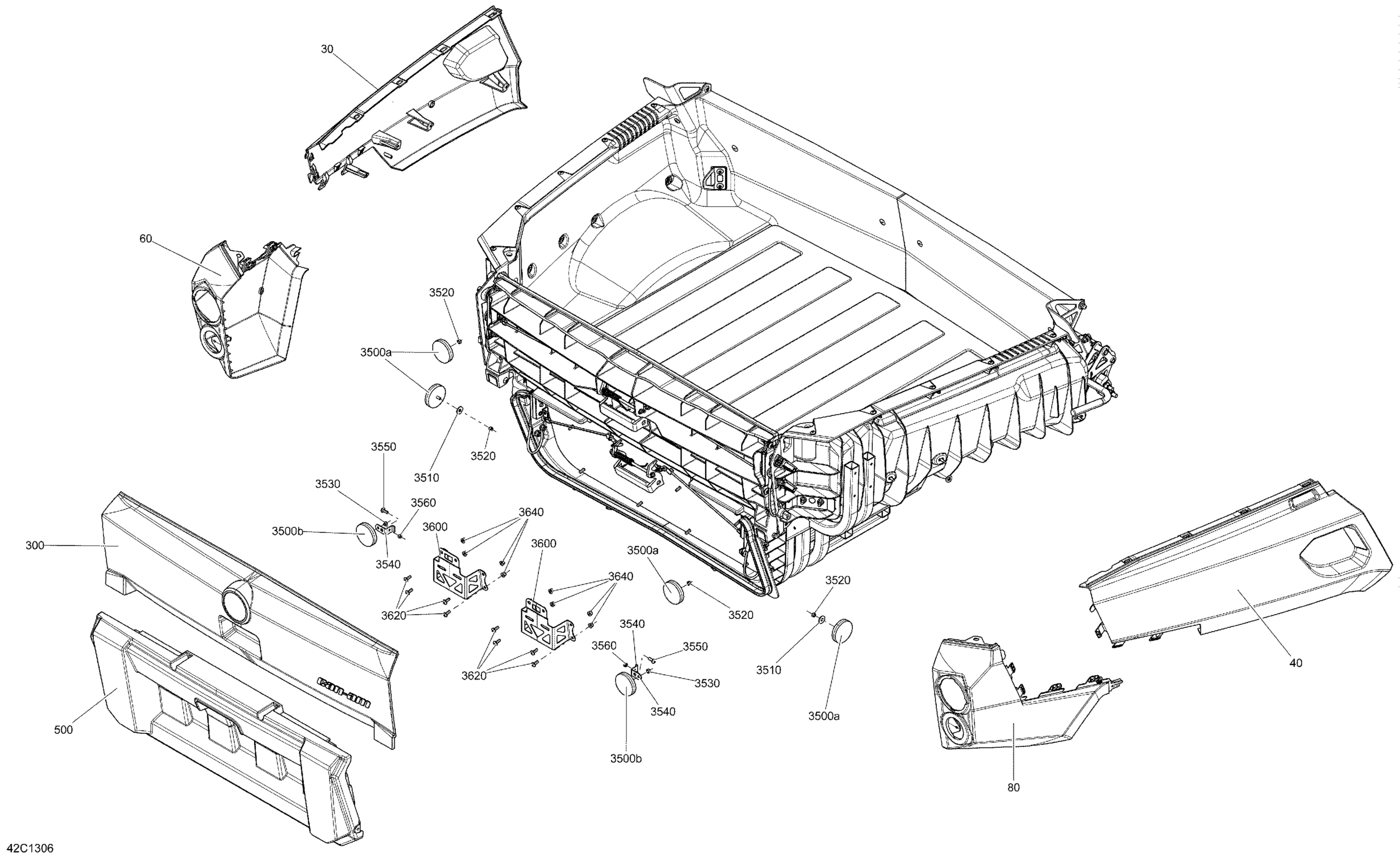

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2013 Rear Cargo Box Diagram

#

Description
Price

30

Yellow LH Rear Fender | STD

708301242

$124.60

30

LH REAR FENDER, BLACK - Call your local BRP dealership | XT, LSV

708300863

Unavailable

40

YELLOW RH REAR FENDER - Call your local BRP dealership | STD

708301243

Unavailable

40

RH REAR FENDER, BLACK - Call your local BRP dealership | XT, LSV

708300862

Unavailable

60

LH Rear Facia

708301383

$19.37

80

RH Rear Facia

708301384

$19.37

300

Yellow Outside Top Pannel | X, Yellow

708301256

$146.24

300

OUTSIDE TOP PANNEL, BLACK METAL - Call your local BRP dealership | XT, LSV

708300673

Unavailable

500

Outside Bottom Pannel Ass'y

715002365

$139.52

3500a

Red Reflector

705011221

$11.96

3500b

Red Reflector

705011221

$11.96

3510

Stainless Steel Flat Washer

234062670

$2.00

3520

Elastic Stop Nut M5

232551414

$0.82

3530

Elastic Stop Nut M5

232551414

$0.82

3540

REFLECTOR SUPPORT - Call your local BRP dealership | Europe

708300367

Unavailable

3550

Torx Screw M5 X 14

250000742

$1.37

3560

Elastic Stop Nut M5

232551414

$0.82

3600

Plate Support | Europe

708300349

$39.52

3620

Torx Screw M5 X 14

250000742

$1.37

3640

Hex. Flange Elastic Nut M5

233251414

$1.91
