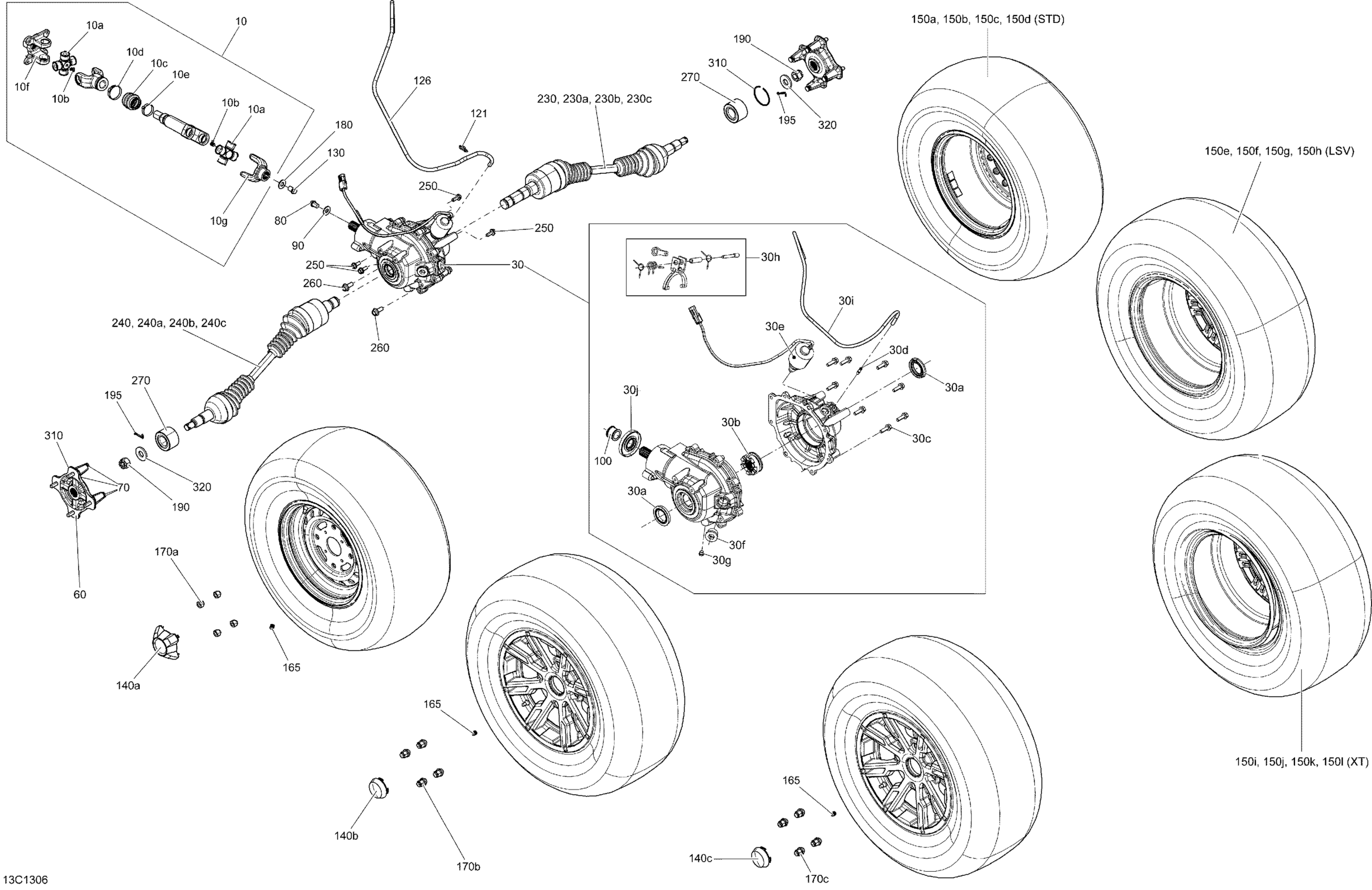

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2013 Drive System, Rear Diagram

#

Description
Price

10

Rear Propeller Shaft Kit | Includes 1 to 9

703500801

$415.35

10a

Universal Joint

715900326

$69.20

10b

GREASE FITTING - Call your local BRP dealership

705500841

Unavailable

10c

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

10d

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

10e

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

10f

DISC JOINT - Call your local BRP dealership

705500526

Unavailable

10g

Fixe Yoke

715900101

$27.66

30

Rear Differential Ass'y | Includes 30 to 30j

705501942

$2,007.66

30a

SEAL - Call your local BRP dealership | 4X4

705501824

Unavailable

30b

GEAR - Call your local BRP dealership

705501825

Unavailable

30c

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

30d

VENT VALVE - Call your local BRP dealership

705501826

$6.94

30e

SOLENOID - Call your local BRP dealership

710003430

Unavailable

30f

Drain Plug

705501827

$13.83

30g

FILL PLUG - Call your local BRP dealership

705501828

Unavailable

30h

SHIFT YOKE KIT - Call your local BRP dealership

705501829

Unavailable

30i

Polyurethane Hose 10000Mm Long

219704410

$46.12

30j

SEAL - Call your local BRP dealership

705501975

Unavailable

60

Wheel Hub

705401314

$129.20

70

Wheel Stud

705401964

$10.14

80

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

90

Flat Washer M12

250200102

$1.74

100

SLEEVE - Call your local BRP dealership

705502247

Unavailable

121

Tie Wrap 142 mm

293750002

$0.88

126

Polyurethane Hose 10000Mm Long

219704410

$46.12

130

Hex Flange Screw M12 X 16

250001039

$1.74

140a

Wheel Cap | STD

705400921

$12.91

140b

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

140c

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

150a

TIRE_25X11R12 REAR - Call your local BRP dealership | STD

705501539

Unavailable

150b

RIM_12 INCH X 8 - Call your local BRP dealership | STD

705501249

Unavailable

150c

Rim Valve With Cap

705400193

$6.69

150d

1/2 Oz Weight

219704465

$4.35

150e

TIRE_26X11R14 REAR - Call your local BRP dealership | LSV

705501775

Unavailable

150f

Rear Rim

705501813

$194.58

150g

Rim Valve With Cap

705400193

$6.69

150h

1/2 Oz Weight

219704465

$4.35

150i

27X11R14 Rear Tire

705502665

$244.58

150j

RIM 14 INCH X 8,5 - Call your local BRP dealership | XT International Except Camo

705501812

Unavailable

150k

Rim Valve With Cap

705400193

$6.69

150l

1/2 Oz Weight

219704465

$4.35

165

Valve Cap

293000110

$1.18

170a

Steel Wheel Nut

250100042

$2.48

170b

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

170c

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

180

Flat Washer M12

250200102

$1.74

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400036

$1.74

230

RH HALF SHAFT - Call your local BRP dealership | Includes 230 to 230c

705501630

Unavailable

230a

CIRCLIP - Call your local BRP dealership | 4X4

705501832

Unavailable

230b

BOOT_CV JOINT KIT - Call your local BRP dealership

705501830

Unavailable

230c

BOOT_CV JOINT KIT - Call your local BRP dealership | 4X4

705501831

Unavailable

240

LH HALF SHAFT - Call your local BRP dealership | Includes 240 to 240c

705501968

Unavailable

240a

CIRCLIP - Call your local BRP dealership | 4X4

705501832

Unavailable

240b

BOOT_CV JOINT KIT - Call your local BRP dealership

705501830

Unavailable

240c

BOOT_CV JOINT KIT - Call your local BRP dealership | 4X4

705501831

Unavailable

250

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

260

HEX. FLANGED SCREW M10 X 25, SCOTCH GRIP - Call your local BRP dealership

207502587

Unavailable

270

Ball Bearing

293350150

$51.93

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28
