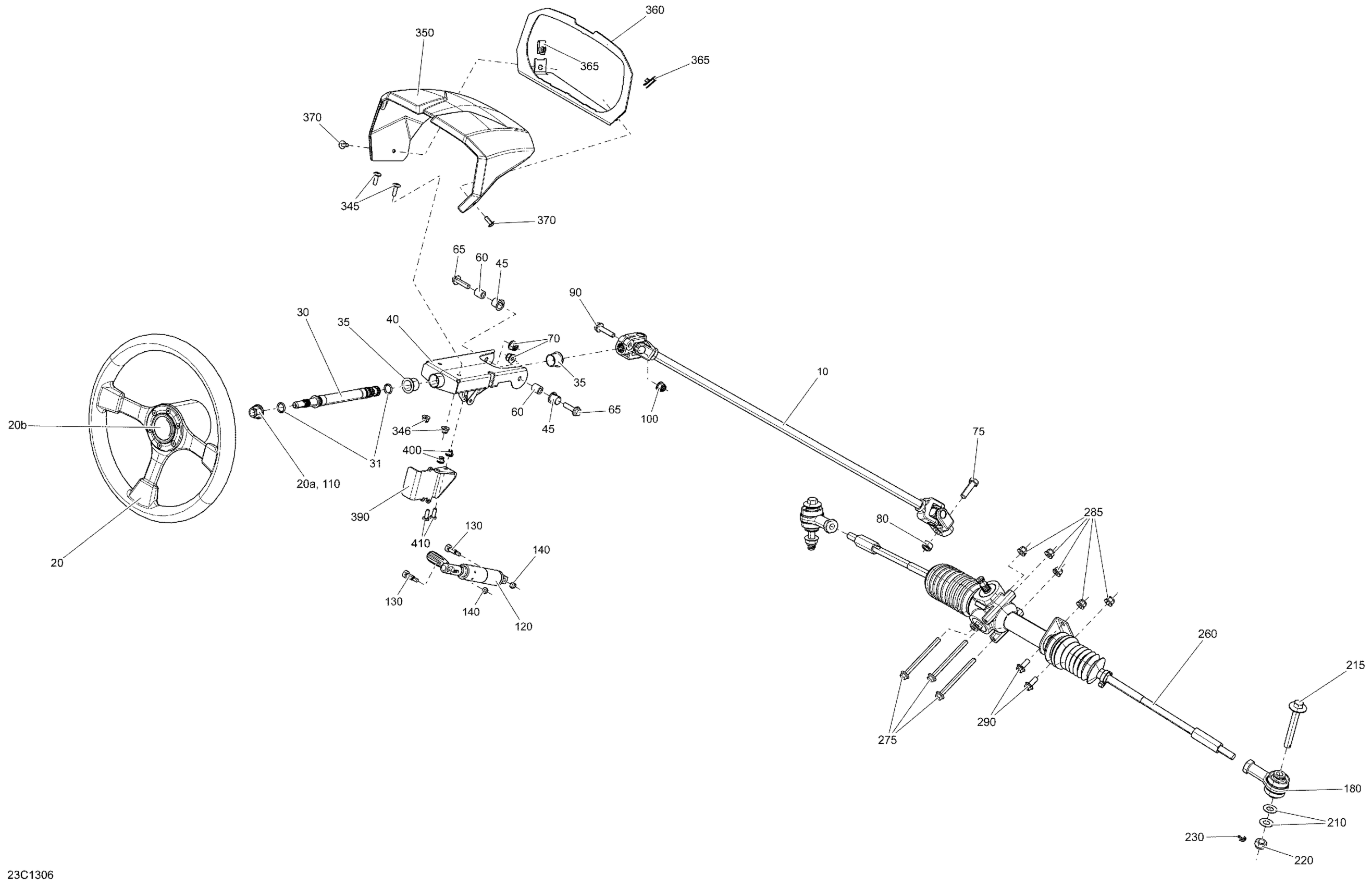

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2013 Steering Diagram

#

Description
Price

10

Steering Column

709401389

$189.20

20

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

Unavailable

20a

Hex. Flange Elastic Nut M12

233221414

$5.10

20b

Can-Am Logo

704904274

$10.00

30

Steering Shaft

709401167

$46.12

31

O-Ring

293300144

$3.98

35

Steering Bushing

709402725

$3.17

40

Painted Steering Wheel Support

709401391

$83.05

45

Bushing

705600799

$3.72

60

Bushing

293900106

$4.42

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

70

Hex. Flange Elastic Nut M8

233281414

$1.14

75

Hex. Screw M10 X 35

207103586

$0.83

80

Elastic Stop Nut M10

232500416

$1.56

90

Hex. Flange Screw M8 X 35

250000986

$1.74

100

Hex. Elastic Flange Nut M8

233281416

$1.25

110

Hex. Flange Elastic Nut M12

233221414

$5.10

120

Adjustment Cylinder

709402506

$69.20

130

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000649

Unavailable

140

Elastic Stop Nut M6

232561414

$1.55

180

Ball Joint

709401134

$50.34

210

Hardened Washer

706200281

$2.34

215

Hexagonal Screw M12 X 88

250000657

$5.19

220

Elastic Stop Nut M12

232521416

$1.40

230

Cotter Pin

211400017

$0.25

260

Steering Ass'y | Includes 29 to 31

709401185

$350.74

275

Hex. Flange Screw M8 X 95

207689534

$3.48

285

Hex. Flange Elastic Nut M8

233281414

$1.14

290

Hex. Flange Screw M8 X 20

207682044

$0.92

345

Torx Truss Screw M6 X 20

250000350

$4.39

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

350

Upper Cluster Cover | X, XT

707900124

$15.35

360

Cluster Support | X, XT

707900013

$15.35

365

Panel Nut M6 X 1.0

250100198

$1.73

370

Torx Truss Screw M6 X 16

250000721

$1.39

390

Flasher Arm Support | Europe

709400810

$27.66

400

Threaded Insert M6 X 1.0

250100242

Unavailable

410

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82
