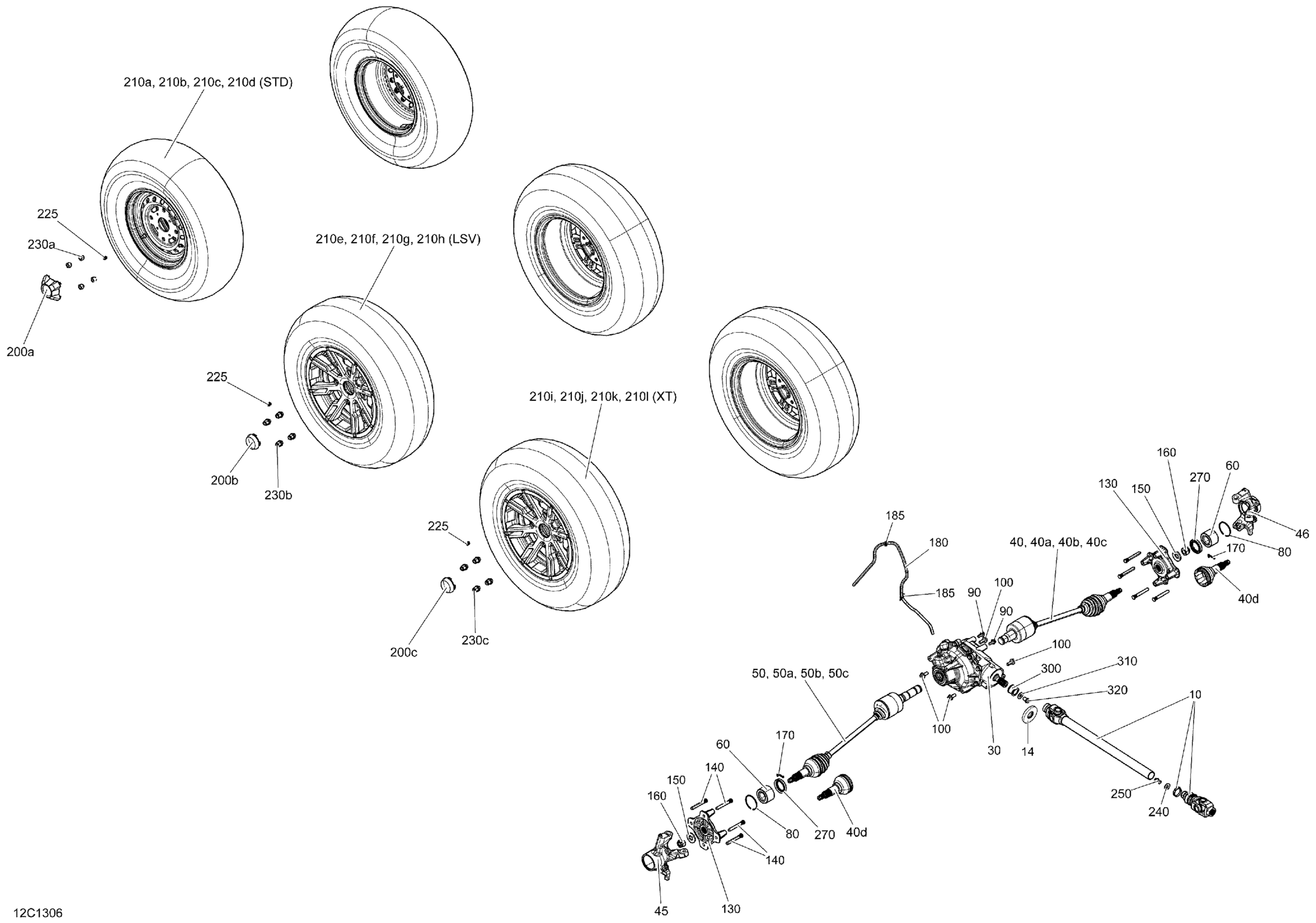

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2013 Drive System, Front Diagram

#

Description
Price

10

Axle Drive Ass'y | Includes 1 to 7

705400915

$299.97

14

Seal

705502443

Unavailable

30

Front Differential Ass'y | 4X4

705401172

Unavailable

40

RH HALF SHAFT - Call your local BRP dealership | 4X4, Inclus 40 to 40c

705401224

Unavailable

40a

CIRCLIP - Call your local BRP dealership | 4X4

705501832

Unavailable

40b

Boot Differential Kit | 4X4

705401401

Unavailable

40c

BOOT_CV JOINT KIT - Call your local BRP dealership | 4X4

705501831

Unavailable

40d

AXLE - Call your local BRP dealership | LSV 2X4

705401340

Unavailable

45

LH Front Knuckle

705401548

$129.20

46

RH Front Knuckle

705401549

$106.12

50

LH HALF SHAFT - Call your local BRP dealership | 4X4, Inclus 50 to 50c

705401225

Unavailable

50a

CIRCLIP - Call your local BRP dealership | 4X4

705501832

Unavailable

50b

Boot Differential Kit | 4X4

705401401

Unavailable

50c

BOOT_CV JOINT KIT - Call your local BRP dealership | 4X4

705501831

Unavailable

60

Ball Bearing

293350150

$51.93

80

Circlip

293370019

$4.98

90

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

100

HEX. FLANGED SCREW M10 X 25, SCOTCH GRIP - Call your local BRP dealership

207502587

Unavailable

130

Wheel Hub

705401314

$129.20

140

Wheel Stud

705401964

$10.14

150

Conical Spring Washer M18

250200171

$5.28

160

Hex. Flange Castellated Nut M18

232291413

$2.82

170

Cotter Pin

250400036

$1.74

180

Polyurethane Hose 10000Mm Long

219704410

$46.12

185

Tie Wrap 142 mm

293750002

$0.88

200a

Wheel Cap | STD

705400921

$12.91

200b

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

200c

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

210a

Front Tire | STD

705401158

Unavailable

210b

RIM_12 INCH X 6 - Call your local BRP dealership | STD

705400910

Unavailable

210c

Rim Valve With Cap

705400193

$6.69

210d

1/2 Oz Weight

219704465

$4.35

210e

TIRE_26X9R14 F - Call your local BRP dealership | LSV

705401343

Unavailable

210f

RIM_14 INCH X 7 - Call your local BRP dealership

705401380

Unavailable

210g

Rim Valve With Cap

705400193

$6.69

210h

1/2 Oz Weight

219704465

$4.35

210i

Front Tire

705402168

$235.35

210j

Front Rim | XT International Except CAMO

705401378

$179.97

210k

Rim Valve With Cap

705400193

$6.69

210l

1/2 Oz Weight

219704465

$4.35

225

Valve Cap

293000110

$1.18

230a

Steel Wheel Nut

250100042

$2.48

230b

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

230c

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

240

Flat Washer M12

250200102

$1.74

250

Hex Flange Screw M12 X 16

250001039

$1.74

270

O-Ring

293250246

$7.37

300

Spacer | 4X4

705501629

Unavailable

310

Flat Washer M12

250200102

$1.74

320

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

325

Seal | 4X4

705501823

Unavailable

330

SEAL - Call your local BRP dealership | 4X4

705501824

Unavailable
