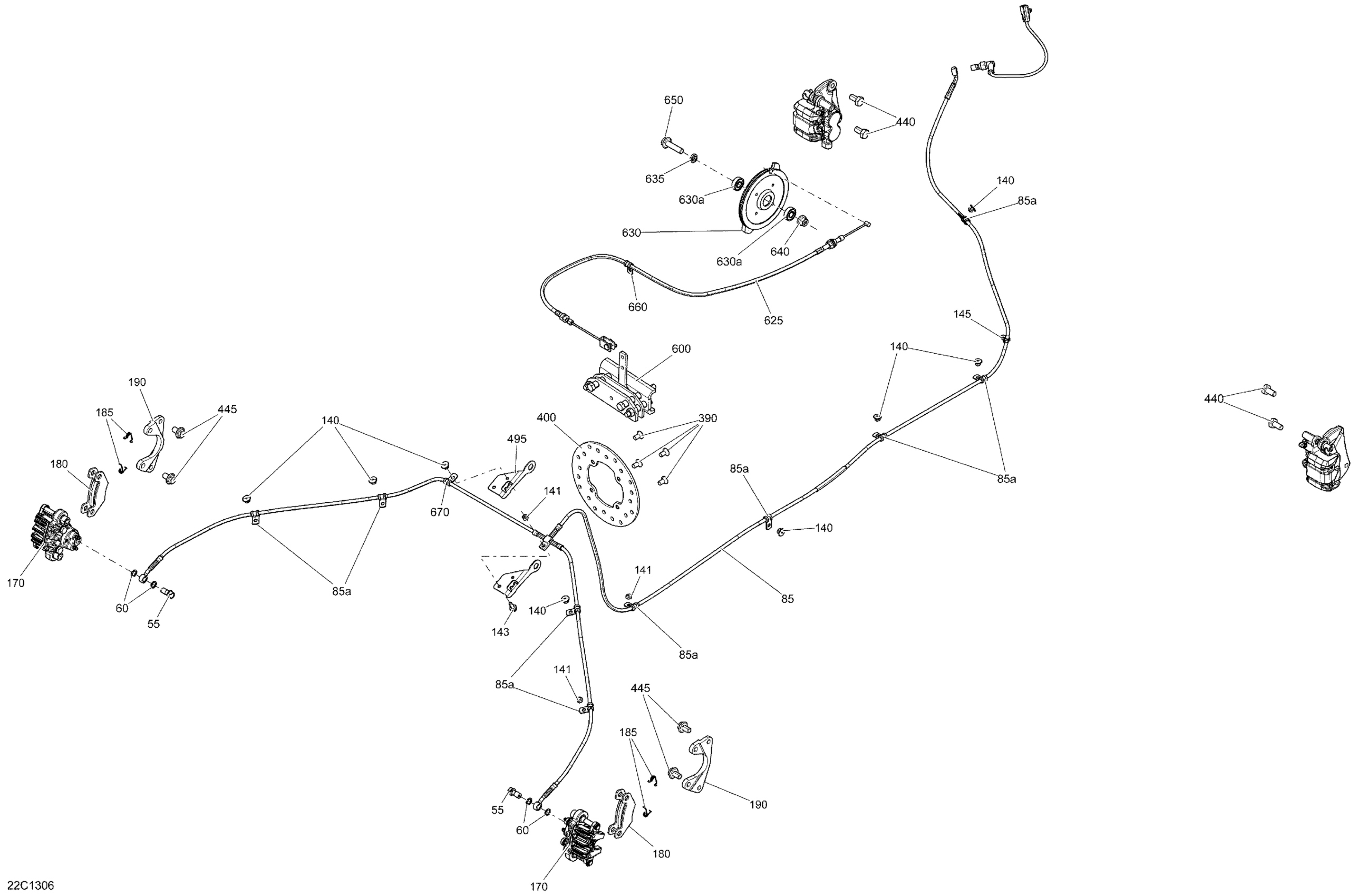

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2013 Brakes Diagram

Banjo Bolt

705600628

$11.05

Copper Washer

705601628

$4.34

FLEXIBLE HOSE - Call your local BRP dealership | Includes 85 to 85a

705601488

Unavailable

Clamp

293650256

$4.36

Pop Rivet 3/16"

390406500

$0.70

Elastic Stop Nut M6

232561414

$1.55

Hex. Flange Screw M6 X 16

207661644

$0.61

Tie-Rap 180 mm

414115200

$0.09

REAR CALIPER - Call your local BRP dealership

705601056

Unavailable

Brake Pad Kit

705600711

$46.89

SPRING - Call your local BRP dealership

705601167

Unavailable

Rear Caliper Support

705601057

$161.51

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

Disk Brake

705600604

$56.89

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.98

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

Bracket

705601111

Unavailable

CALIPER - Call your local BRP dealership

705601112

Unavailable

BRAKE CABLE - Call your local BRP dealership

705601071

$17.66

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$87.66

Bearing

705600458

$7.03

Bushing

293900087

$7.60

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Flange Screw M10 X 40

207604044

$2.06

Clamp

293650256

$4.36

Clamp

293650256

$4.36
