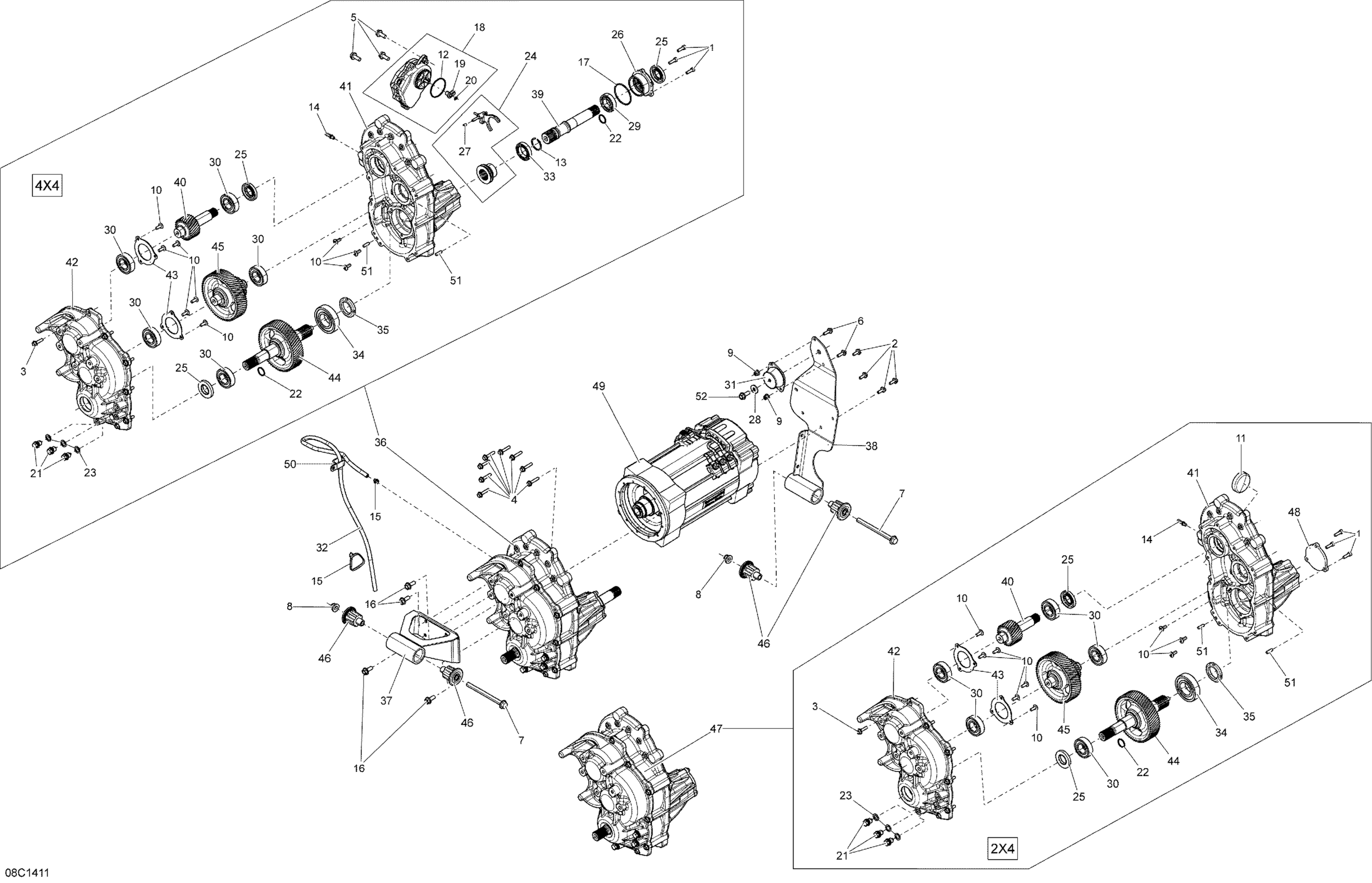

Can-Am Commander (Electric 9Kw) STD, XT, LSV, 2013 Engine _08C1411 Diagram

#

Description
Price

1

Socket Head Screw M6 X 20

205062044

$1.07

2

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

3

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

4

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

5

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

6

Hex. Flange Screw M6 X 20

207662044

$1.66

7

Hex. Flange Screw M10 X 125

230602546

$6.08

8

Hex. Flange Elastic Nut M10

233201436

$1.74

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

Torx Truss Screw M6 X 16

250000348

$1.74

11

CORE PLUG - Call your local BRP dealership | Package-2X4

293000115

Unavailable

12

O-Ring

293300117

$4.28

13

Circlip | 4X4

293370030

$2.75

14

MALE CONNECTOR - Call your local BRP dealership | Package-2X4, 4X4

293700050

Unavailable

15

Tie Wrap 142 mm

293750002

$0.88

16

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

17

O-Ring | Package-4X4

414536600

$2.06

18

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

$263.05

19

Shifting Fork

415129175

$14.37

20

Circlip | 4X4

293370042

$3.11

21

Magnetic Drain Plug M12

420241787

$16.89

22

Circlip

420245010

$5.52

23

Copper Washer

420250640

$0.81

24

Shifting Sleeve Kit | Includes 26a to 29

420257676

Unavailable

25

Oil Seal

420430580

$23.05

26

Bearing Cover

420611223

$32.28

27

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

Unavailable

28

Yellow, Washer

503183200

$3.00

29

Ball Bearing | Package-4X4

503193165

Unavailable

30

Ball Bearing | Package-2X4, 4X4

504153165

$15.35

31

Rubber Mount

512060729

$69.97

32

Polyurethane Hose 10000Mm Long

219704410

$46.12

33

BALL BEARING - Call your local BRP dealership | Package-4X4

705401180

Unavailable

34

BALL BEARING - Call your local BRP dealership | Package-2X4, 4X4

705501589

Unavailable

35

Nut | Package-2X4, 4X4

706000547

Unavailable

36

Gearbox Ass'y | Package-4X4

707001106

Unavailable

37

Rear Engine Bracket

707001107

Unavailable

38

Front Engine Bracket

707001108

Unavailable

39

FRONT SHAFT - Call your local BRP dealership | Package-4X4

707001111

Unavailable

40

GEAR, 28 TEETH - Call your local BRP dealership | Package-2X4, 4X4

707001113

Unavailable

41

Gearcase | Package-2X4, 4X4

707001131

Unavailable

42

Cover | Package-2X4, 4X4

707001132

Unavailable

43

Flange | Package-2X4, 4X4

707001134

Unavailable

44

Rear Shaft | Package-2X4, 4X4

707001138

Unavailable

45

INTERMEDIATE SHAFT - Call your local BRP dealership | Package-2X4, 4X4

707001139

Unavailable

46

Vibration Damper

707001169

$41.51

47

Gearbox Ass'y | Package-2X4

707001257

Unavailable

48

COVER - Call your local BRP dealership | Package-2X4

707001259

Unavailable

49

ELECTRIC MOTOR - Call your local BRP dealership

707001501

Unavailable

50

Open Clamp

709000057

$5.52

51

CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4

732620001

Unavailable

52

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39
