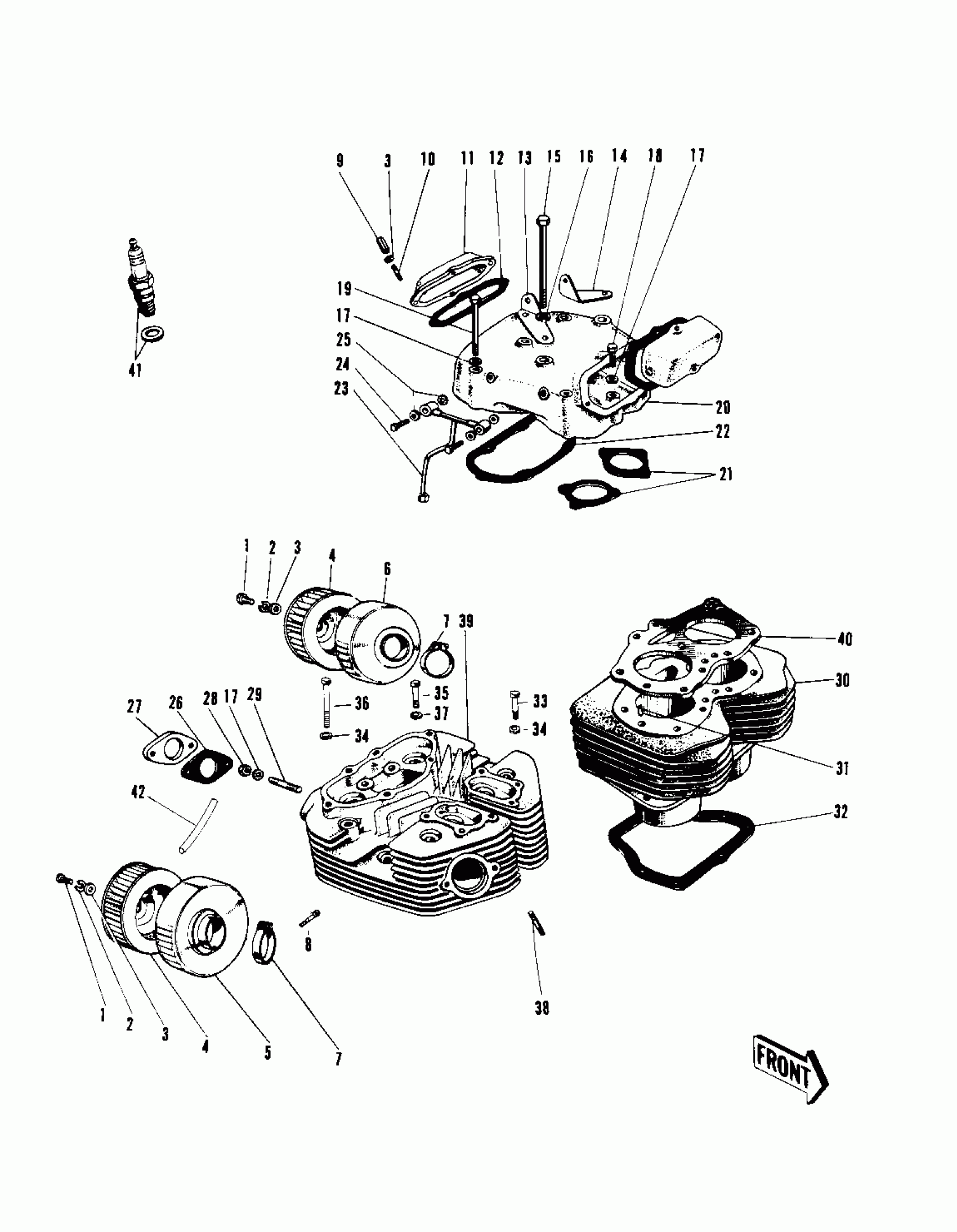

Kawasaki Commander CYLINDER HEAD/CYLINDER (W2SS/W2TT) Diagram

#

Description
Price

1~5

AIR CLEANER ASSY-R.H

11010-053

Unavailable

1~46

AIR CLEANER ASSY-L.H.

11010-054

Unavailable

1

SCREW-PAN-CROS,6X16

220B0616

$2.84

2

WASHER SPRING 6MM

461F0600

$0.69

3

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

4

ELEMENT,AIR CLNR

11013-014

Unavailable

5

CAP AIR CLEANER R.H

11012-009

Unavailable

6

CAP AIR CLEANER L.H

11012-010

Unavailable

7

CLAMP

92037-030

$4.27

8

SCREW FLT FIL HD 6X25

210E0625

Unavailable

8

SCREW PAN HEAD 6X25

220B0625

$2.60

9

NUT ROCKER COVER

92017-005

$2.03

10

BOLT-STUD,6X14

172G0614

$1.74

11

COVER ROCKER

11027-002

Unavailable

12

GASKET ROCKER COVER

11023-004

Unavailable

13

PLATE SUPPORT A

14052-003

$4.80

14

PLATE B,SUPPORT

14052-008

$8.99

15

BOLT, HEX HEAD, 8X90

115B0890

Unavailable

16

WASHER SPRING 8MM

461F0800

$0.40

17

WASHER PLAIN 8MM

410B0800

$0.93

18

BOLT

114G0836

Unavailable

19

BOLT HEX HEAD 8X63

114G0863

$3.06

20

CASE ROCKER

11022-001

Unavailable

21

GASKET ROCKER CASE B

11023-002

Unavailable

22

GASKET ROCKER CASE A

11023-001

Unavailable

23

PIPE-ROCKER CASE OIL

16122-002

$97.49

24

BOLT BANJO

92001-058

$3.58

25

WASHER PLAIN 87M

92022-154

$6.70

26

GASKET INTAKE FLANGE

16062-004

$3.61

27

INSULATOR HEAT

16061-007

$34.71

28

NUT-HEX-SMALL,8MM

317G0800

$1.63

29

STUD 8X22

171G0822

Unavailable

30

CYLINDER

11005-065

Unavailable

31

PIN DOWEL 8X16

551A0816

$1.25

32

GASKET CYLINDER BASE

11009-016

Unavailable

33

BOLT,HEX HEAD,10X50

92003-090

$8.66

34

WASHER,10X22X3.2

92022-176

$4.78

35

BOLT,HEX HEAD,10X42

92003-091

$7.46

36

BOLT,HEX HEAD,10X78

92003-089

$9.74

37

WASHER CYL HEAD BOLT

92022-099

Unavailable

38

STUD,8X25

92004-1008

$3.70

39

UNAVAILABLE IN PRICE BOOK

11002-005

$261.22

40

GASKET,CYLINDER HEAD

11004-054

Unavailable

41

SPARK PLUG B7ES

B7ES

Unavailable

42

PIPE

92059-069

$4.44
