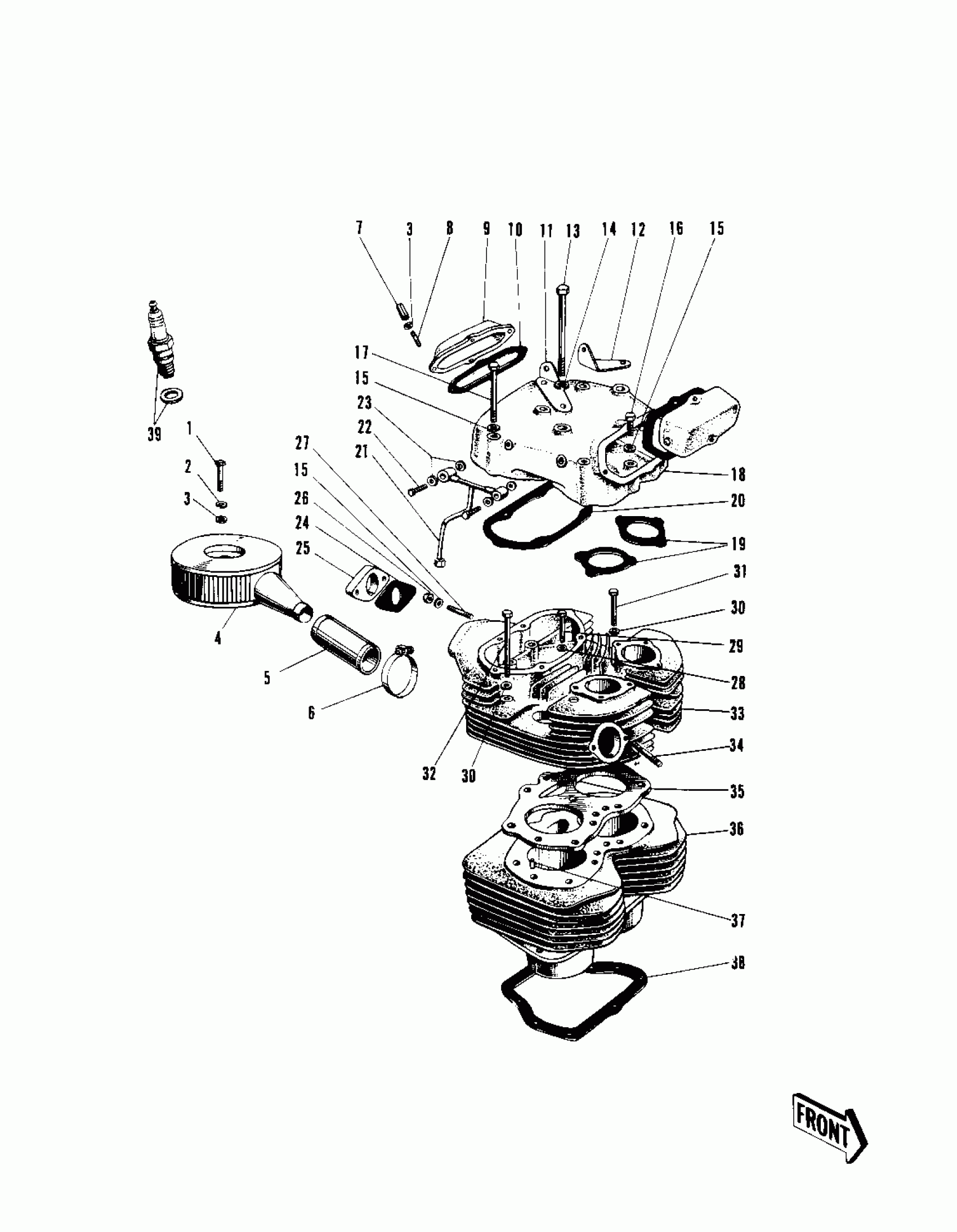

Kawasaki Commander CYLINDER HEAD/CYLINDER (W1/W1SS) Diagram
#
1
BOLT-UPSET
112G0660
Unavailable
2
WASHER SPRING 6MM
461F0600
$0.69
3
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
4
AIR CLEANER ASSY
11010-026
Unavailable
5
INLET PIPE
11015-010
Unavailable
6
CLAMP AIR CLEANER
92037-023
$3.56
7
NUT ROCKER COVER
92017-005
$2.03
8
BOLT-STUD,6X14
172G0614
$1.74
9
COVER ROCKER
11027-002
Unavailable
10
GASKET ROCKER COVER
11023-004
Unavailable
11
PLATE SUPPORT A
14052-003
$4.80
12
PLATE B,SUPPORT
14052-008
$8.99
13
BOLT, HEX HEAD, 8X90
115B0890
Unavailable
14
WASHER SPRING 8MM
461F0800
$0.40
15
WASHER PLAIN 8MM
410B0800
$0.93
16
BOLT
114G0836
Unavailable
17
BOLT HEX HEAD 8X63
114G0863
$3.06
18
CASE ROCKER
11022-001
Unavailable
19
GASKET ROCKER CASE B
11023-002
Unavailable
20
GASKET ROCKER CASE A
11023-001
Unavailable
21
PIPE-ROCKER CASE OIL
16122-002
$97.49
22
BOLT BANJO
92001-058
$3.58
23
WASHER PLAIN 87M
92022-154
$6.70
24
GASKET INTAKE FLANGE
16062-004
$3.61
25
INSULATOR HEAT
16061-007
$34.71
26
NUT-HEX-SMALL,8MM
317G0800
$1.63
27
STUD 8X22
171G0822
Unavailable
28
UNAVAILABLE IN PRICE BOOK
92022-088
Unavailable
28
WASHER CYL HEAD BOLT
92022-099
Unavailable
29
BOLT,HEX HEAD 10X40
92001-1253
Unavailable
29
BOLT,HEX HEAD,10X42
92003-091
$7.46
30
WASHER-PLAIN,10MM
411B1000
Unavailable
30
WASHER,10X22X3.2
92022-176
$4.78
31
BOLT,HEX HEAD,10X50
92001-1254
Unavailable
31
BOLT,HEX HEAD,10X50
92003-090
$8.66
32
BOLT HEX HEAD 10X75
113G1075
Unavailable
32
BOLT,HEX HEAD,10X78
92003-089
$9.74
33
CYLINDER HEAD
11002-004
Unavailable
34
STUD,8X25
92004-1008
$3.70
35
GASKET,CYLINDER HEAD
11004-054
Unavailable
35
GASKET,CYLINDER HEAD
11004-054
Unavailable
36
CYLINDER
11005-065
Unavailable
36
CYLINDER
11005-065
Unavailable
37
PIN DOWEL 8X16
551A0816
$1.25
38
GASKET CYLINDER BASE
11009-016
Unavailable
39
SPARK PLUG B7ES
B7ES
Unavailable
