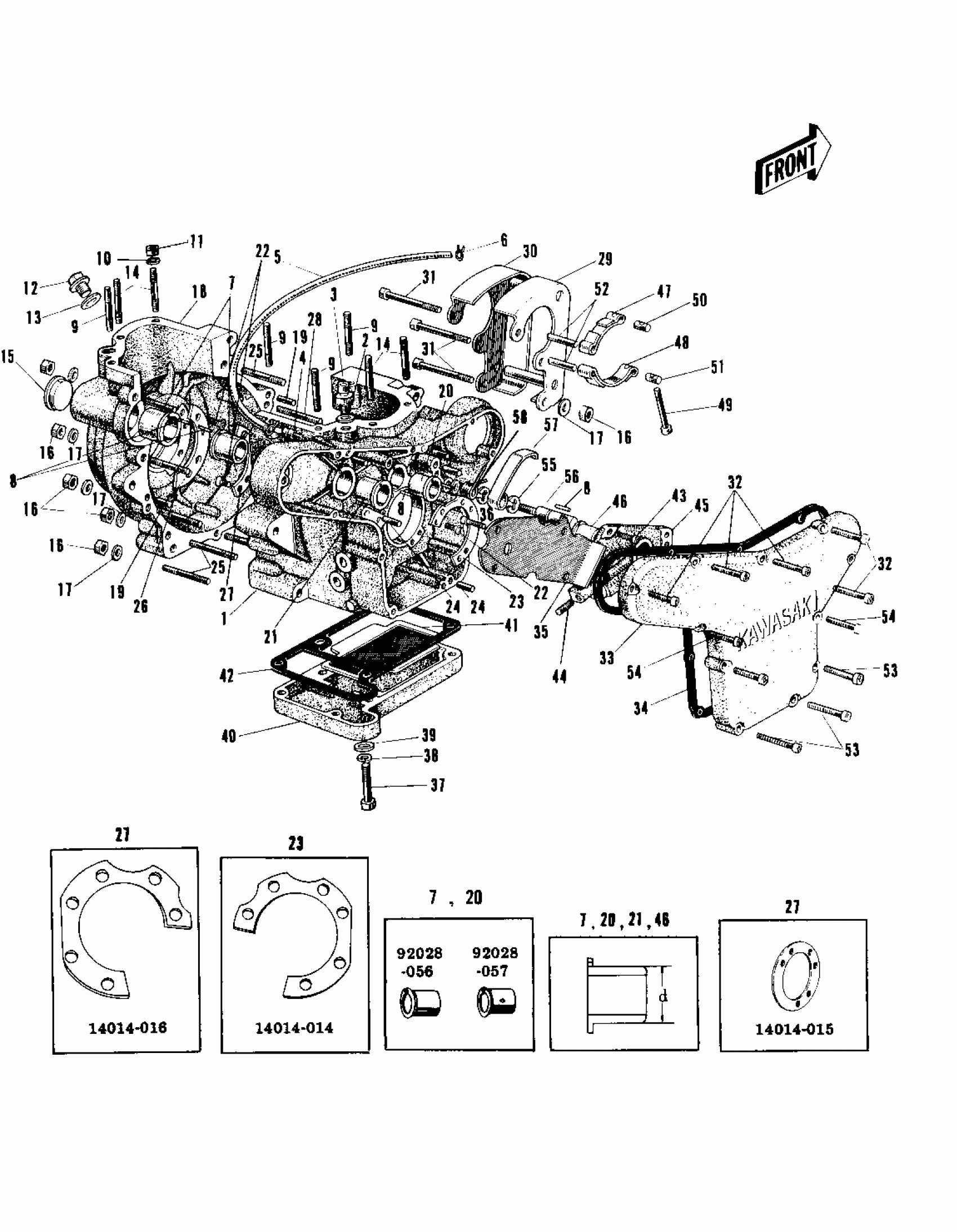

Kawasaki Commander CRANKCASE Diagram
#
1,7,8,
CRANKCASE SET
14001-018
Unavailable
1,7,8,
CRANKCASE SET
14001-019
Unavailable
2
GASKET CROWN NUT
92065-050
$1.34
3
NIPPLE OIL PIPE FIT
16124-001
$7.51
4
VALVE-BREATHER
14070-002
$17.68
5
PIPE,BREATHER
92059-091
Unavailable
6
CLAMP BREATHER PIPE
92037-028
Unavailable
7
BUSH CAM SHAFT A
92028-056
$8.68
7
BUSH CAM SHAFT B
92028-057
$16.40
8
PIN DOWEL 3X5
551A0305
$0.39
9
STUD 10X22
92004-021
Unavailable
9
STUD 10X22
92004-021
$24.85
10
WASHER PLAIN 10MM
410B1000
$0.58
11
NUT,10M/M
314G1000
$0.90
12
PLUG DRAIN 16MM
755C1600
Unavailable
12
PLUG 16MM
92067-004
$4.64
13
O RING,14MM
670B2014
$1.19
14
STUD 10X28
92004-022
Unavailable
14
STUD 10X28
92004-022
$4.34
15
CAP L.H ENGINE COVER
92073-004
Unavailable
16
NUT-HEX-SMALL,8MM
317G0800
$1.63
17
WASHER PLAIN 8MM
410B0800
$0.93
19
PIN DOWEL 8X16
551A0816
$1.25
20
BUSH CAM SHAFT B
92028-057
$16.40
21
BUSH IDLE SHAFT A
92028-058
$12.92
22
SCREW-CSK-CROS,6X12
221B0612
$2.06
23
HOLDER CRANK BEARING
14014-012
Unavailable
23
HOLDER BEARING A
14014-013
Unavailable
23
HOLDER CRNK BEARING A
14014-014
Unavailable
24
PIN,DOWEL,6.3X8X14
92042-007
$5.70
25
BOLT-STUD,8X30
172G0830
$2.56
26
HOLDER CRANK BEARING
14014-012
Unavailable
27
HOLDER CRANK BEARING
14014-012
Unavailable
27
HOLDER BEARING B
14014-015
Unavailable
27
HOLDER BEARING C
14014-016
Unavailable
28
STUD 8X50
172G0850
Unavailable
29
UNAVAILABLE IN PRICE BOOK
14052-001
$22.30
30
BRACKET L.H ENGINE
14052-002
$22.32
31
BOLT HEX HEAD 8X95
114G0895
Unavailable
31
BOLT,HEX HEAD,8X95
92003-044
$5.45
3
SCREW PAN HEAD 6X28
220B0628
$3.41
33
EQ PANT FLGRN/BU/GY28
14032-028A
$172.88
34
GASKET-ENGINE COVER
14046-009
Unavailable
35
PLATE BREATHER
14068-001
$3.87
36
UNAVAILABLE IN PRICE BOOK
220A0612
Unavailable
36
SCREW PAN HEAD 6X12
220B0612
Unavailable
37
BOLT 6X35
110R0635
Unavailable
37
BOLT-HEX HEAD,6X32
110N0632
Unavailable
38
WASHER SPRING 6MM
461F0600
$0.69
39
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
40
PAN OIL
16110-001
$25.65
41
STRAINER OIL
16111-001
$3.66
42
GASKET OIL PAN
16112-001
Unavailable
43
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
44
SCREW SLOTTED
291H0610
$2.69
45
HOLDER IDLE SHAFT
14018-002
Unavailable
46
BUSH IDLE SHAFT B
92028-059
$15.97
47
BAND DYNAMO CLAMP B
21063-002
$16.78
48
BAND DYNAMO CLAMP A
21063-001
$16.78
49
BOLT HEX HEAD 8X50
114G0850
$4.69
50
BAND END A
21056-002
$26.52
51
BAND END B
21056-003
$26.52
52
PIN DYNAMO CLAMP BAND
21056-004
$3.47
53
SCREW PAN HEAD 6X40
220B0640
Unavailable
54
SCREW PAN HEAD 6X25
220B0625
$2.60
55
CIRCLIP 8MM
482J8000
$1.50
56
PIN CHAIN TENSIONER
21056-005
Unavailable
57
TENSIONER CHAIN
21062-002
Unavailable
57
TENSIONER CHAIN
21062-002
Unavailable
58
SPRING CHAIN TENSION
21065-001
Unavailable
