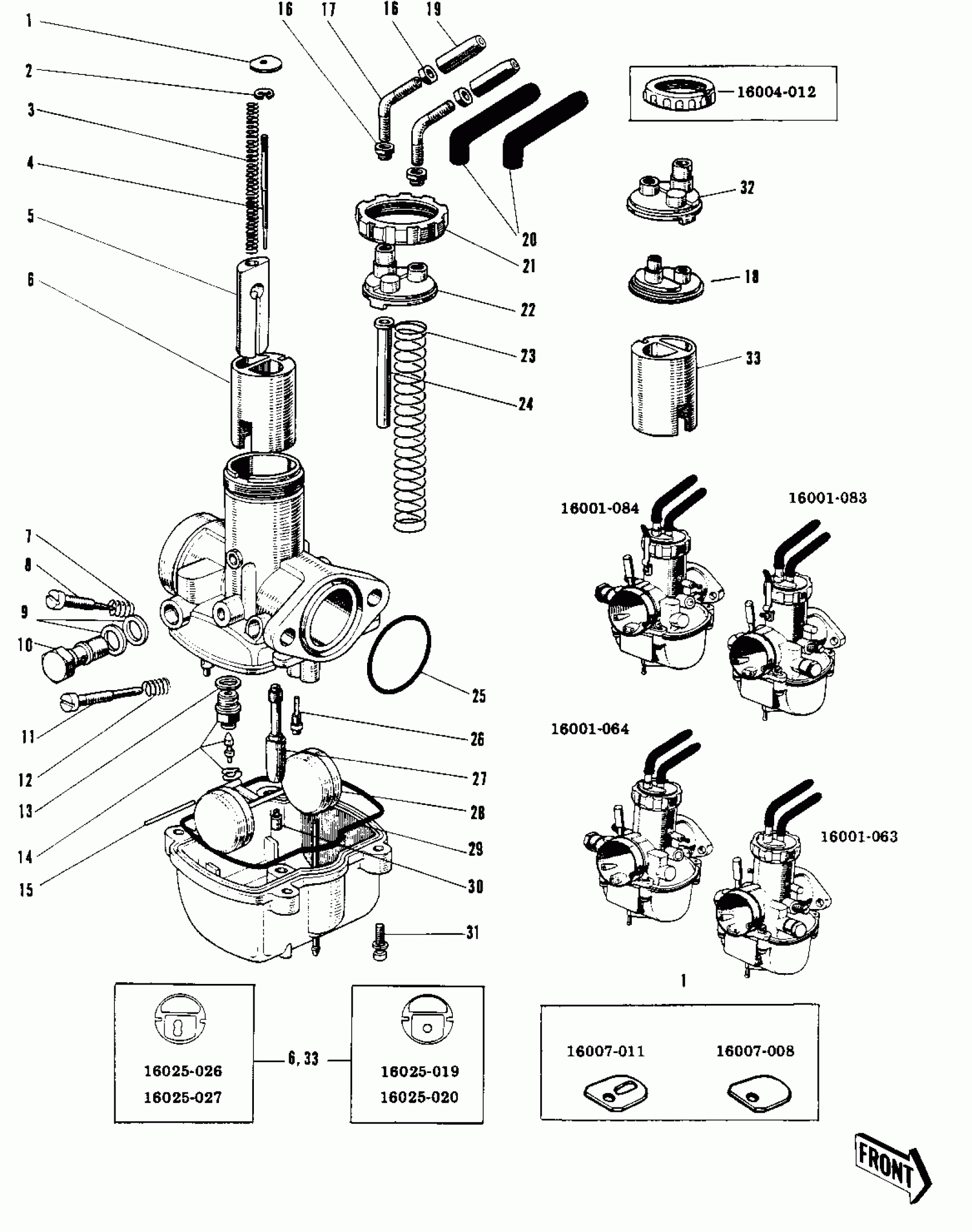

Kawasaki Commander CARBURETORS (W2SS/W2TT) Diagram

#

Description
Price

1~33

CARBURETOR ASSY. R.H

16001-167

$334.21

1~33

CARBURETOR ASSY. R.H

16001-167

$334.21

1~33

CARBURETOR ASSY,L.H

16001-168

$334.21

1~33

CARBURETOR ASSY,L.H

16001-168

$334.21

1

SPRING SEAT THRTL VLV

16007-011

Unavailable

1

SPRING SEAT THRTL VLV

16007-011

$2.25

2

CLAMP,E-TYPE

16008-010

$9.21

3

SPRING AIR SHUTTER

16040-003

$1.05

4

JET NEEDLE 5L1

16009-017

$10.86

5

SHUTTER AIR

16041-003

$5.70

6

VALVE THROTTLE R.H

16025-027

Unavailable

6

VALVE THROTTLE R.H

16025-027

$66.01

7

SPRING,THROTTLE STOP SCREW

16022-005

$8.68

8

SCREW THROTTLE STOP

16021-007

$5.66

9

GASKET,10,2X15X1.5T

11009-1146

Unavailable

10

BOLT BANJO

92060-006

Unavailable

10

BOLT BANJO

92060-011

$18.29

11

SCREW PILOT AIR ADJST

16014-007

$5.84

12

SPRING,THROTTLE ADJST

16022-010

Unavailable

13

WASHER FLOAT VLV SEAT

16029-005

$0.69

14

FLOAT VALVE ASSY

16030-006

$12.53

15

PIN,FLOAT

16032-003

$6.57

16

NUT,CABLE ADJUST LOCK

16003-004

$7.34

17

CABLE GUIDE

16077-001

$9.02

18

TOP MIXING CHAMBER

16005-019

$12.72

19

CABLE ADJUSTER

16002-004

Unavailable

20

CAP RUBBER

16037-003

Unavailable

21

CAP MIXING CHAMBER

16004-007

$7.09

21

CAP MIXING CHAMBER

16004-012

$7.25

22

UNAVAILABLE IN PRICE BOOK

16005-014

Unavailable

22

TOP MIXING CHAMBER RH

16005-017

$6.20

23

SPRING THROTTLE VALVE

16006-011

$5.81

24

GUIDE AIR SHUTTER

16045-002

$5.17

25

"O" RING,MANIFOLD

16038-006

Unavailable

26

PILOT JET NO.25

92064-030

Unavailable

26

PILOT JET #30

92064-029

$7.35

27

NEEDLE JET O-6

16017-023

Unavailable

27

NEEDLE JET O-6

16017-038

Unavailable

27

UNAVAILABLE IN PRICE BOOK

16017-033

Unavailable

28

FLOAT

16031-011

$77.86

29

GASKET FLOAT CHAMBER

16019-009

$25.33

30

JET-MAIN,#220

92063-024

$16.50

31

SCREW FLOAT CHAMBER

16033-007

$1.05

31

SCREW FLOAT CHAMBER

16033-011

Unavailable

32

UNAVAILABLE IN PRICE BOOK

16005-015

Unavailable

32

TOP MIXING CHAMBER LH

16005-018

$5.76

33

VALVE THROTTLE L.H

16025-020

Unavailable

33

VALVE THROTTLE L.H

16025-026

$35.14
