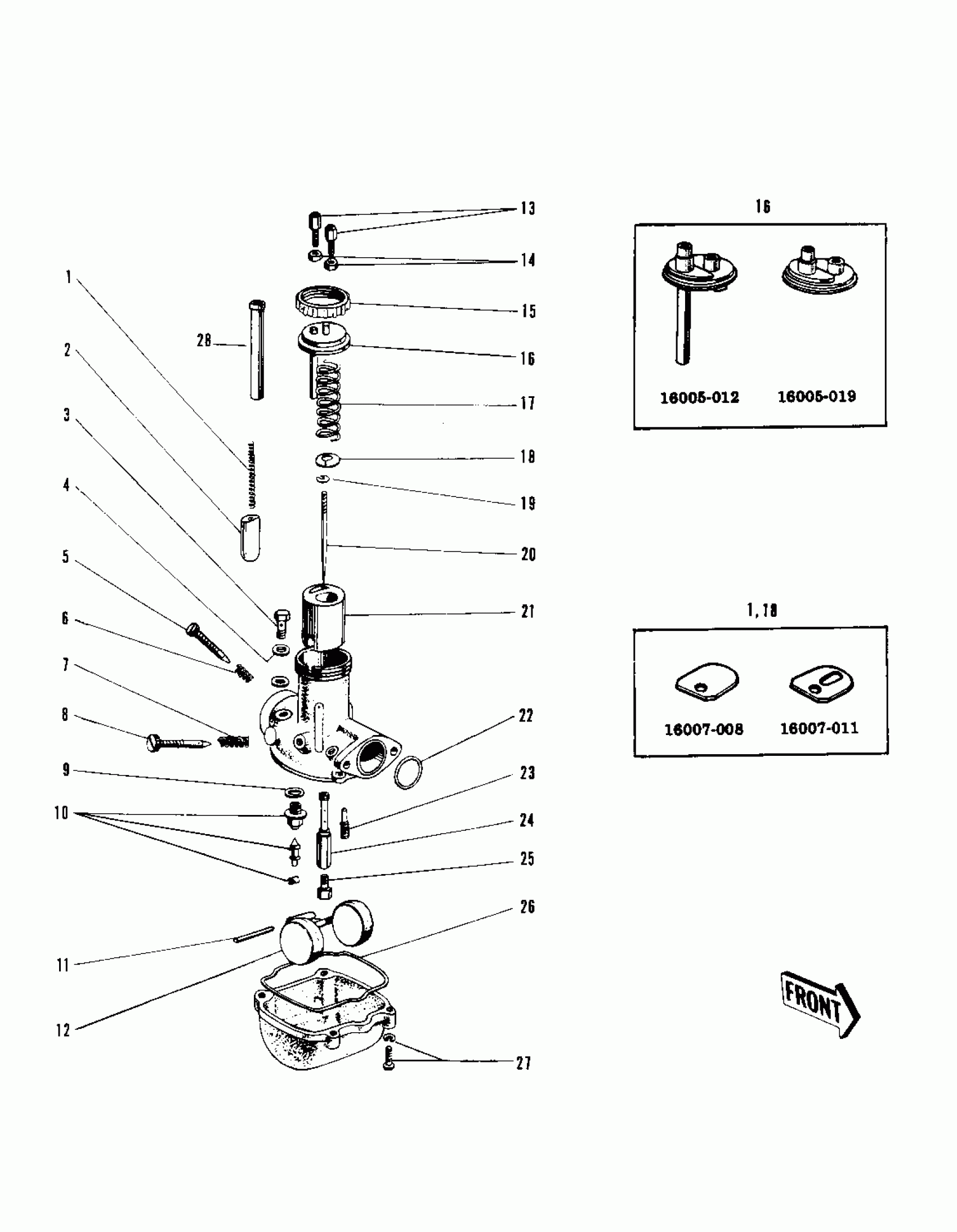

Kawasaki Commander CARBURETOR (W1/W1SS) Diagram

#

Description
Price

1~28

CARBURETOR ASSY

16001-057

Unavailable

1

SPRING AIR SHUTTER

16040-003

$1.05

2

SHUTTER AIR

16041-003

$5.70

3

BOLT BANJO

92060-006

Unavailable

4

GASKET,10,2X15X1.5T

11009-1146

Unavailable

5

SCREW PILOT AIR ADJST

16014-008

$4.39

6

SPRING,THROTTLE ADJST

16022-010

Unavailable

7

SPRING,THROTTLE STOP SCREW

16022-005

$8.68

8

SCREW THROTTLE STOP

16021-007

$5.66

9

WASHER FLOAT VLV SEAT

16029-005

$0.69

10

FLOAT VALVE ASSY

16030-006

$12.53

11

PIN,FLOAT

16032-003

$6.57

12

FLOAT

16031-009

$8.20

13

CABLE ADJUSTER

16002-002

$11.83

14

NUT,CABLE ADJUST LOCK

16003-004

$7.34

15

CAP MIXING CHAMBER

16004-007

$7.09

16

TOP MIXING CHAMBER

16005-012

$3.72

16

TOP MIXING CHAMBER

16005-019

$12.72

17

SPRING THROTTLE VALVE

16006-009

$3.25

18

SPRING SEAT THRTL VLV

16007-011

Unavailable

18

SPRING SEAT THRTL VLV

16007-011

$2.25

19

CLAMP,E-TYPE

16008-010

$9.21

20

JET NEEDLE 5L1

16009-017

$10.86

21

VALVE THROTTLE CA 2.0

16025-017

$34.54

22

"O" RING,MANIFOLD

16038-006

Unavailable

23

PILOT JET #50

92064-007

$7.81

24

NEEDLE JET P-O

16017-021

$15.31

25

MAIN JET NO 440A

92063-039

$5.67

26

GASKET FLOAT CHAMBER

16019-009

$25.33

27

SCREW FLOAT CHAMBER

16033-007

$1.05

28

GUIDE AIR SHUTTER

16045-002

$5.17
