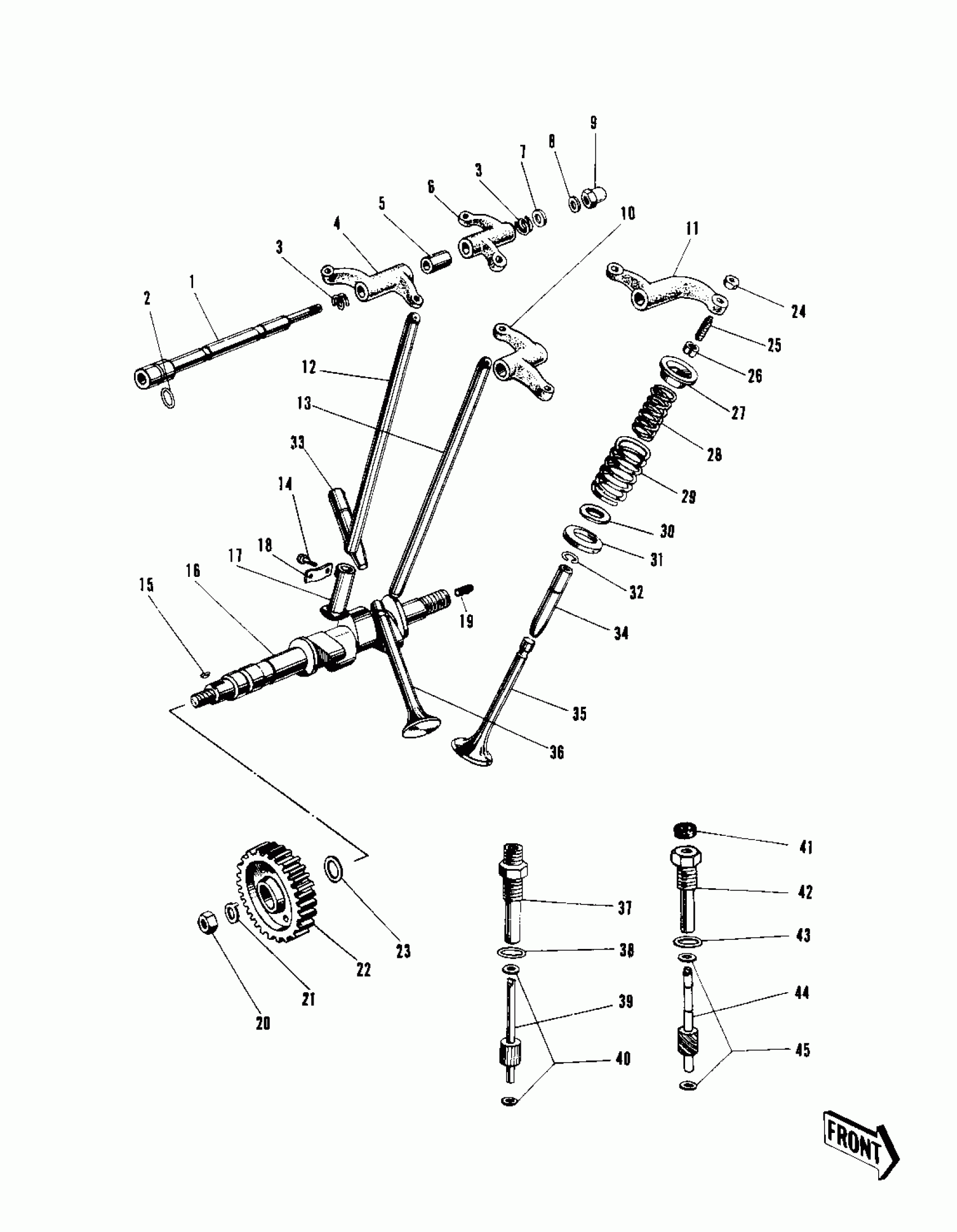

Kawasaki Commander CAMSHAFT/ROCKER ARMS/VALVES Diagram

#

Description
Price

1

SHAFT ROCKER ARM

12020-002

Unavailable

2

O RING,14MM

670B2014

$1.19

3

SPRING ROCKER SHAFT

92081-041

$1.00

4

ARM R.H INLET ROCKER

12016-002

Unavailable

5

BUSH ROCKER ARM SHAFT

92028-048

$15.17

6

ARM L.H INLET ROCKER

12016-006

Unavailable

7

WASHER PLAIN 10MM

410B1000

$0.58

8

GASKET CROWN NUT

92065-050

$1.34

9

NUT CROWN 10MM

92020-013

$8.94

10

ARM R.H EXH ROCKER

12016-001

Unavailable

11

ARM L.H EXH ROCKER

12016-010

Unavailable

12

ROD INLET PUSH

12038-003

Unavailable

13

ROD EXHAUST PUSH

12038-004

Unavailable

14

BOLT TAPPET FITTING

92003-033

$11.18

15

WOODRUFF KEY CAM SHT

92038-009

$1.74

16

SHAFT CAM

12044-003

Unavailable

17

TAPPET

12032-003

Unavailable

18

WASHER TAPPET LOCK

92022-110

$10.17

19

PLUG CAM SHAFT

92066-012

$2.93

20

NUT CAM GEAR

92016-038

$1.23

21

WASHER LOCK 14MM

420B1410

$3.55

22

GEAR CAM SHAFT

12045-002

Unavailable

23

UNAVAILABLE IN PRICE BOOK

92025-036

Unavailable

23

UNAVAILABLE IN PRICE BOOK

92025-037

Unavailable

23

UNAVAILABLE IN PRICE BOOK

92025-038

Unavailable

23

UNAVAILABLE IN PRICE BOOK

92025-039

Unavailable

23

UNAVAILABLE IN PRICE BOOK

92025-040

Unavailable

23

UNAVAILABLE IN PRICE BOOK

92025-041

Unavailable

23

UNAVAILABLE IN PRICE BOOK

92025-042

Unavailable

24

NUT LOCK

92016-030

$0.71

25

SCREW

92014-005

$6.70

26

COLLAR-VALVE SPRING

12011-001

Unavailable

27

RETAINER VALVE SPRING

12009-003

Unavailable

28

SPRING INNER VALVE

12007-004

Unavailable

28

SPRING INNER VALVE

12007-004

Unavailable

29

SPRING OUTER VALVE

12007-007

Unavailable

29

SPRING OUTER VALVE

12007-008

Unavailable

30

GASKET

92065-049

$2.37

31

SEAT SPRING

12010-002

Unavailable

32

CIRCLIP

92036-012

Unavailable

33

GUIDE INLET VALVE

12006-002

Unavailable

33

VALVE GUIDE

12012-001

Unavailable

34

GUIDE EXHAUST VALVE

12006-004

Unavailable

34

VALVE GUIDE

12012-001

Unavailable

35

VALVE EXHAUST

12005-003

Unavailable

35

VALVE EXH 0.01' O.S

12031-002

Unavailable

36

VALVE INLET

12004-009

Unavailable

36

VALVE INLET 0.01' O.S

12030-002

Unavailable

37

GUIDE TACHOMETER

92087-002

$16.73

38

O RING,16MM

670B2016

$1.36

39

GEAR TACHOMETER

13223-001

Unavailable

40

SPACER TCHOMETER GEAR

92026-031

$2.25

41

OIL SEAL

92054-004

Unavailable

42

GUIDE TACHOMETER

92087-004

$144.97

43

RING-O,17.5X1.5

92055-022

$6.22

44

GEAR TACHOMETER

13223-002

Unavailable

45

SPACER TACHMETER GEAR

92026-045

$3.85
