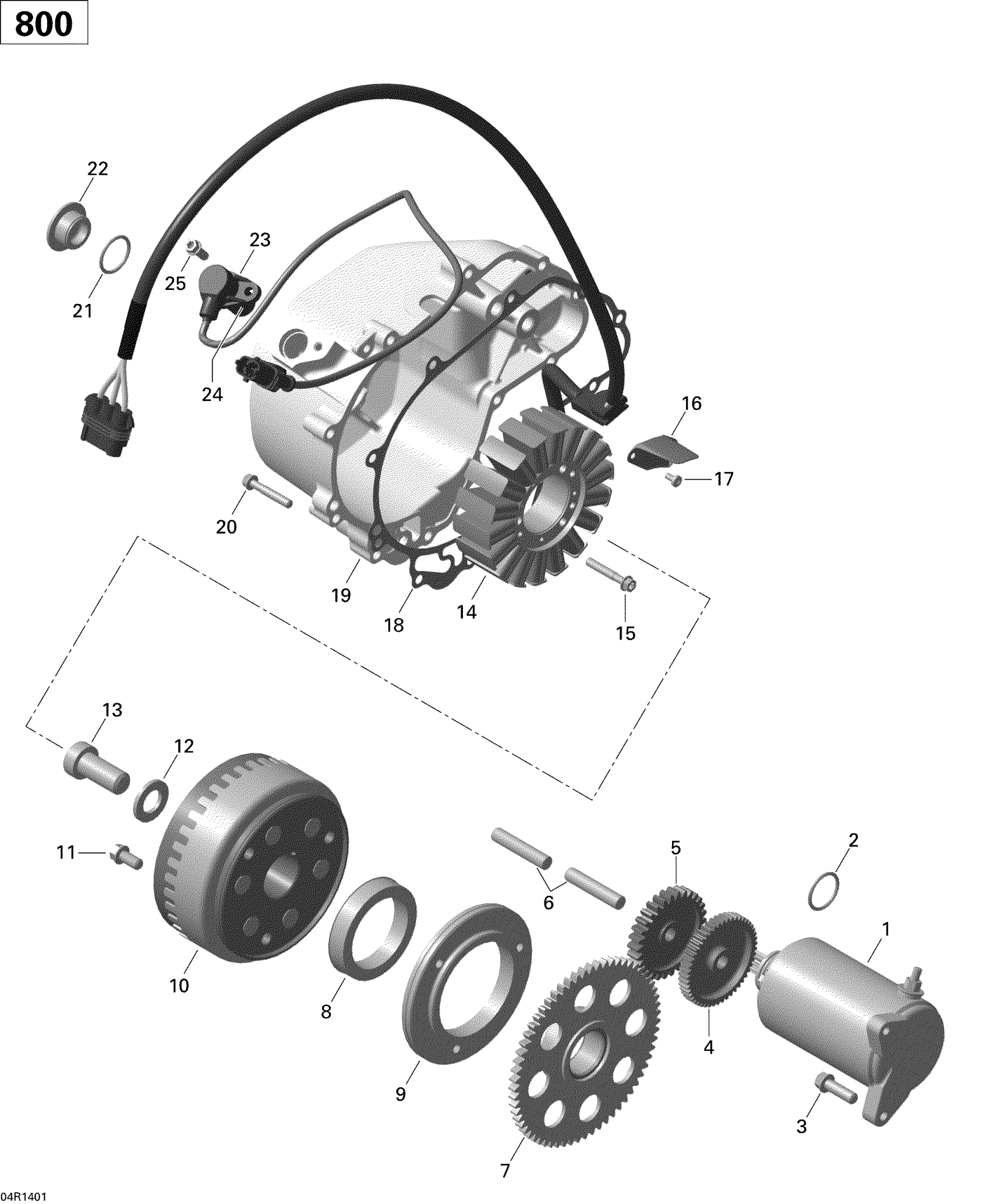

Can-Am Commander 800 STD, DPS, XT, 2014 Magneto And Electric Starter Diagram

#

Description
Price

1

Electric starter Ass'y

420684566

$252.69

2

O-Ring

420250140

$8.09

3

Torx Flange Screw M8 X 25

420440372

$3.88

4

Starter Double Gear 11/49 T

420634741

$179.07

5

Starter Intermediate Gear, 30 Teeth

420634605

$76.84

6

Location Pin 10 M6x50

420229302

$3.01

7

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$173.85

8

Sprag Clutch

420659111

$235.04

9

Sparg Clutch Housing

420659263

$141.01

10

Flywheel | With DPS, European Community, T3

420685649

$541.01

11

Torx Flange Screw M8 X 16

420440852

$3.88

12

Shim

420627270

$3.88

13

Socket Head Screw M16 X 35

420241549

$8.09

14

Stator Plate, 650W | XT, XTP

420685632

$291.01

15

Torx Flange Screw M6 X 35

420440274

$0.96

16

Interior Cable Support Ass'y

420251889

$13.28

17

Phillips Screw M4 X 8

420240196

Unavailable

18

Gasket

420651203

$34.30

19

Ignition Cover

420212225

$178.33

20

Torx Flange Screw M6 X 35

420440274

$0.96

21

O-Ring

420430782

$5.06

22

Plug Screw M24X 1.5

420241633

$7.01

23

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

24

O-Ring

420431580

$14.10

25

Torx Flange Screw M6 X 16

420641048

$2.82
