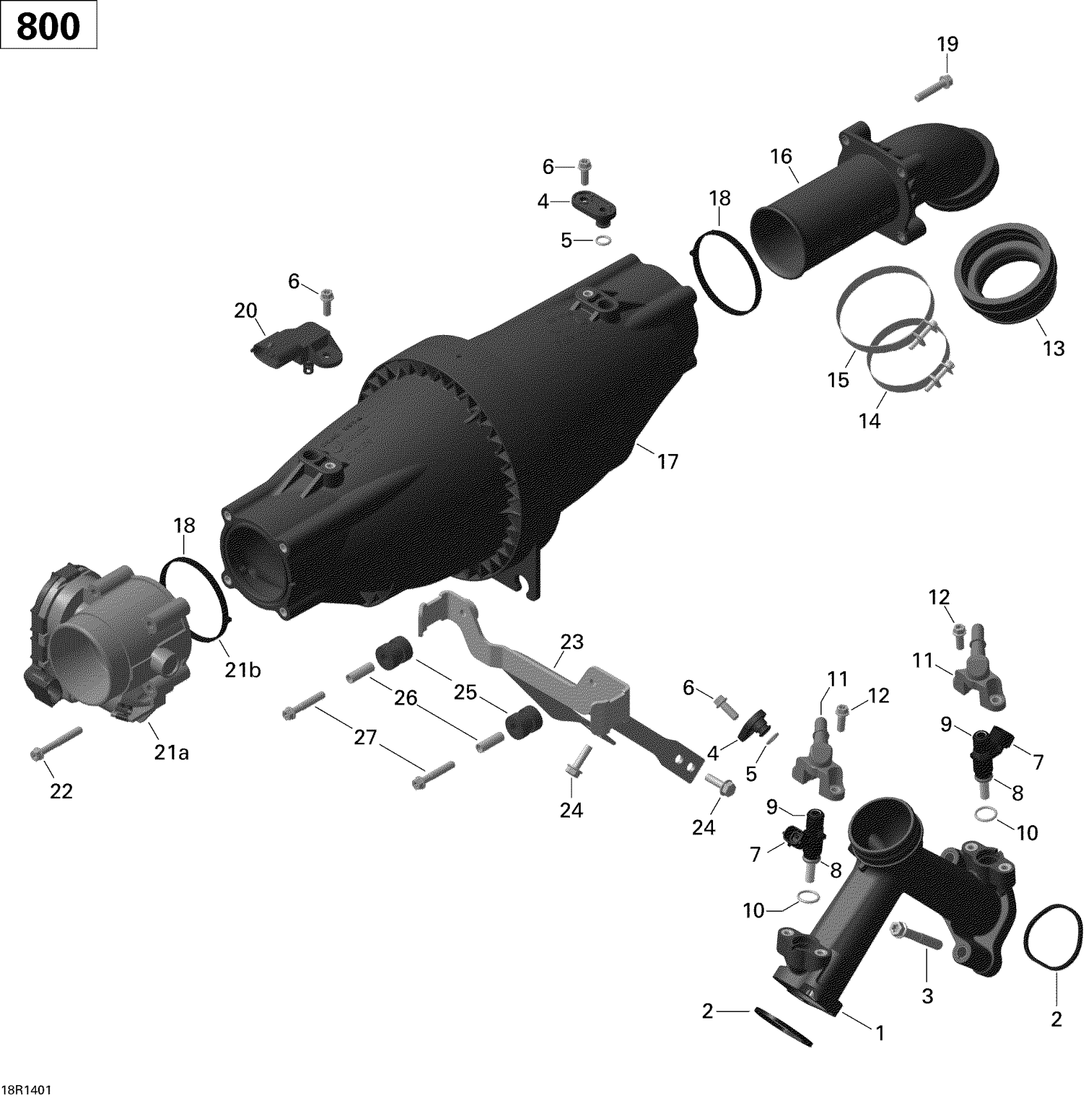

Can-Am Commander 800 STD, DPS, XT, 2014 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667581

$133.82

2

Gasket

420630642

$5.22

3

Torx Flange Screw M8 X 55

420641213

$6.11

4

Cover

420460980

$2.75

5

O-Ring

420230461

$0.91

6

Hex. Flange Screw M6 X 12

420440149

$2.06

7

Injection Valve Ass'y | Includes no. 7-9

420874886

Unavailable

8

O-Ring

420431890

$4.95

9

O-Ring

420631220

$11.48

10

O-Ring

420631296

$0.74

11

Fuel Rail

420874901

$23.05

12

Torx Flange Screw M6 X 16

420641048

$2.46

13

Intake Neck

420267045

$10.98

14

Clamp

420251480

$13.58

15

Clamp

420251209

$8.34

16

Air Inlet Manifold

420667522

$32.28

17

Air Inlet Manifold Ass'y | Includes 16 to 17

420667526

$175.35

18

Gasket | Included in gasket kit

420431900

$5.52

19

Hex. Screw M6 X 30

420241947

$3.95

20

Pressure And Temperature Sensor

707000995

$70.82

21a

Throttle Body Socket Ass'y

420892596

$446.89

21b

Gasket | Included in gasket kit

420431900

$5.52

22

Torx Flange Screw M6 X 45

420641198

$3.38

23

Support

420651521

$78.43

24

Hex.Screw M6 X 20

420441311

$4.24

25

Rubber Bracket

420660090

$3.38

26

Spacer

420847971

$6.08

27

Hex. Screw M6 X 35

420441457

$3.25
