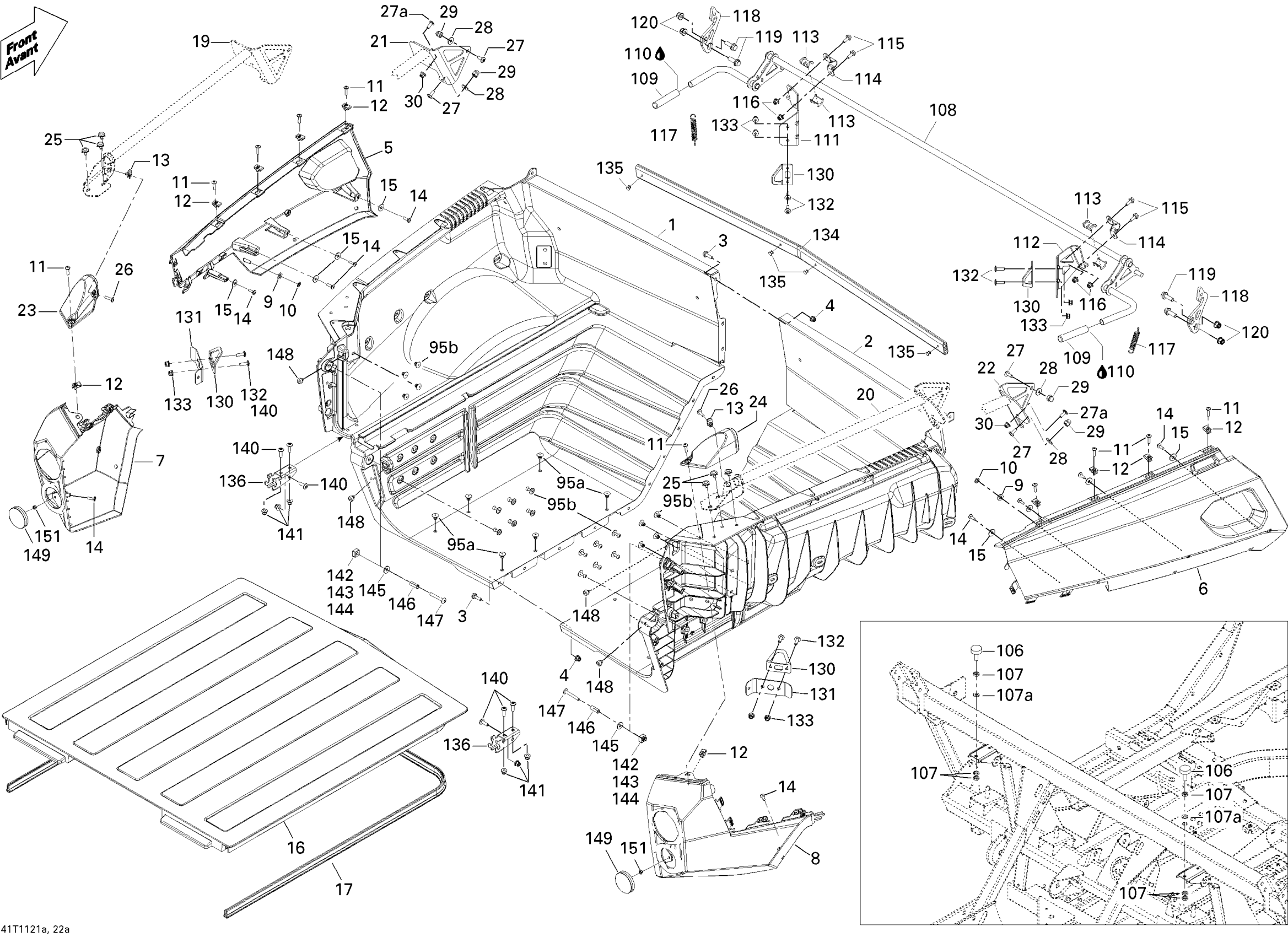

Can-Am Commander 800, 2011 Rear Cargo Box 1 Diagram

#

Description
Price

1

Left Box Kit

715002361

$229.97

2

RH Box Ass'y

715001257

$229.97

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5

Yellow LH Rear Fender | STD

708301242

$128.43

5

Yellow LH Rear Fender | STD

708301242

$128.43

5

FENDER REAR L B-005 - Call your local BRP dealership | XT Camo

708300834

Unavailable

6

YELLOW RH REAR FENDER - Call your local BRP dealership | STD

708301243

Unavailable

6

YELLOW RH REAR FENDER - Call your local BRP dealership | STD

708301243

Unavailable

6

FENDER REAR R B-005 - Call your local BRP dealership | XT Camo

708300835

Unavailable

7

LH Rear Facia

708301383

$19.97

8

RH Rear Facia

708301384

$19.97

9

Flat Washer 8 mm, Nylon

234081100

$1.00

10

Push Nut

732610072

$1.72

11

Torx Screw M5 X 20

250000724

$1.39

12

Panel Nut M5 X 0.8

250000958

$3.48

13

Panel Nut M5 X 0.8

250000958

$3.48

14

Torx Screw K50 X 16

250000720

$1.39

15

Stainless Steel Flat Washer

234062670

$1.74

16

Separator Pannel Ass'y | Includes 16 to 17

708300131

$263.05

17

Was 293250240 Neoprene Seal

219704451

$49.37

19

LH Welded Rail | XT

708300231

$73.82

20

RH Welded Rail | XT

708300232

$73.82

21

LH Painted Rail Cap | Except XT

708300333

$15.35

22

RH Painted Rail Cap | Except XT

708300334

$15.22

23

LH RAIL COVER - Call your local BRP dealership | XT

708300233

Unavailable

24

RH RAIL COVER - Call your local BRP dealership | XT

708300234

Unavailable

25

Pop Rivet 3/16 | XT

293150190

$4.60

26

Torx Screw M5 X 20

250000724

$1.39

27

Torx Truss Screw M6 X 16

250000721

$1.39

27a

Torx Screw M6 X 20

250000722

$1.34

28

Stainless Steel Flat Washer

234062670

$1.74

29

Domed Nut M6

232361493

$1.77

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

95a

Pop Rivet 3/16"

293150100

$1.08

95b

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

106

Frame Rubber Bumper

293720091

$8.45

107

Hex. Jam Nut M8

232180600

$0.56

107a

Lock Washer 8 mm

234181401

$0.89

108

LATCH LEVER ASS'Y - Call your local BRP dealership

708300491

Unavailable

109

Cap Latch Lever

708300358

$5.38

110

Loctite 406, 7 Oz

293800100

$36.99

111

LH Latch Lever Support

708300278

$8.45

112

RH Latch Lever Support

708300351

$8.45

113

Half Ring

705500033

$4.92

114

Clamp Reatiner

708300392

$2.75

115

Hex. Flange Screw M6 X 16

207661644

$0.61

116

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

117

Spring

708300454

$3.85

118

Box Retainer

708300136

$7.60

119

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

120

Hex. Flange Elastic Nut M8

233281414

$1.14

130

Retaining Plate

708300183

$8.45

131

Retaining Plate Support

708300206

$3.98

132

Torx Screw M6 x 25

250000284

$1.74

133

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

134

Front Support

708301633

$27.66

135

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

136

Upper Pivot Support

708300345

$3.85

140

Torx Screw M6 X 20

250000722

$1.34

141

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

142

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

143

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

144

Hex. Elastic Stop Nut M6

232561600

$0.92

145

Stainless Steel Flat Washer

234062670

$1.74

146

SPACER - Call your local BRP dealership

517304852

Unavailable

147

Torx Screw M6 X 45

250000215

$1.56

148

Rubber Bumper

293830005

$5.33

149

Red Reflector

705011221

$12.32

151

Elastic Stop Nut M5

232551414

$0.72
