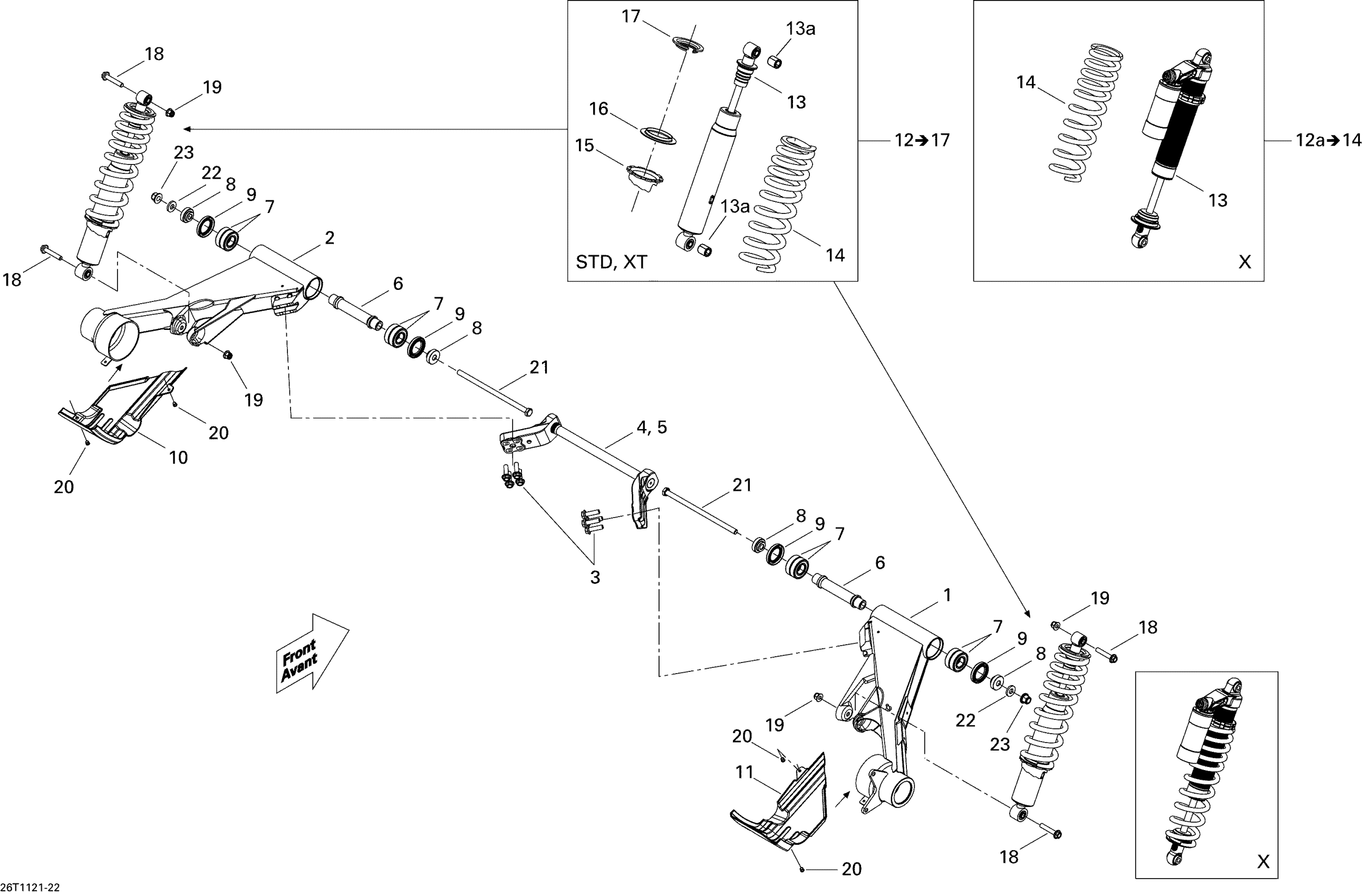

Can-Am Commander 800, 2011 Rear Suspension Diagram

#

Description
Price

1

RH Swing Arm

703500965

$184.58

2

LH Swing Arm

706001177

$184.58

3

Hex. Flange Screw M10 X 35

207503544

$7.17

4

Sway Bar Ass'y | STD, XT

706001500

$179.97

5

Not Available As Spare Parts

XXX

Unavailable

6

Bushing

706001529

$32.28

7

Ball Bearing

293350115

$11.15

8

Spacer

706001350

$9.29

9

Seal

293200094

$9.31

10

LH Joint Protector

706000630

$8.45

11

RH Joint Protector

706000814

$8.45

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Rear Shock | STD, XT

706000615

$186.12

13a

Bushing

715900122

$9.57

14

Yellow Rear Spring | STD, XT Yellow Model

706000667

$101.51

14

RED REAR SPRING - Call your local BRP dealership | XT Red Model

706002466

Unavailable

14

Black Rear Spring | XT Camo Model

706001045

$96.89

15

Adjustment Ring

706000910

$14.37

16

Protector Ring | STD, XT

706000911

$7.60

17

Spring Stopper

706000567

$15.35

18

Hex. Flange Screw M10 X 55

207605544

$2.78

19

Hex. Flange Elastic Nut M10

233201436

$1.74

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

21

Hex. Cap Screw M12 X 241

250001031

$3.16

22

Flat Washer M12

250200120

$2.31

23

Elastic Flange Nut M12

233221416

$2.33
