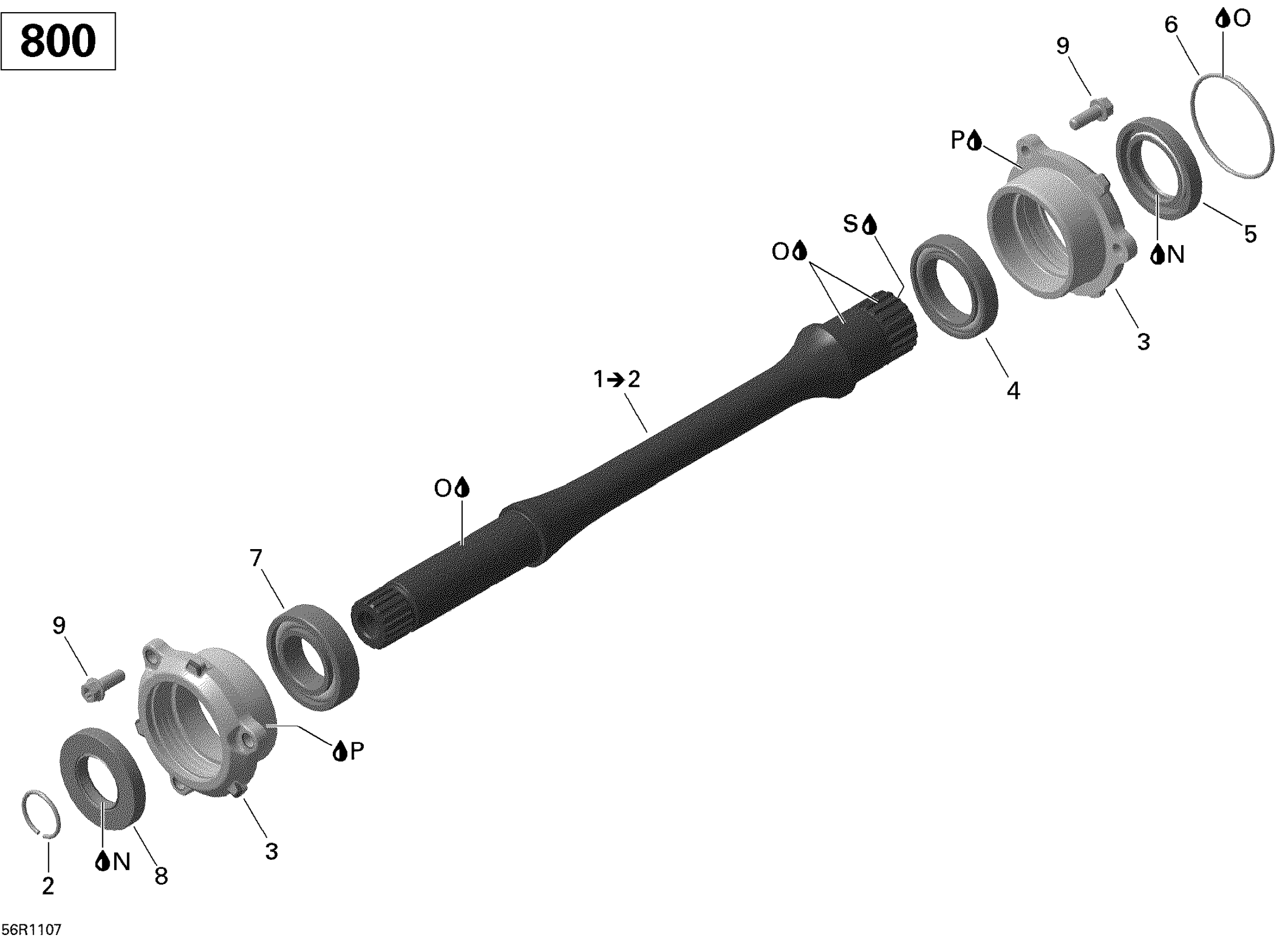

Can-Am Commander 800, 2011 Drive Shaft Diagram

#

Description

Price

1

Drive Shaft Ass'y | Includes 1 to 2

420620511

$301.99

2

Circlip

420245010

$5.50

3

Bearing Cover

420611223

$31.99

4

Ball Bearing

420632275

$43.49

5

Oil Seal

420850055

$17.58

6

O-Ring

420230306

$12.11

7

Ball Bearing

420232342

$26.49

8

Oil Seal

420430580

$21.99

9

Torx Flange Screw M6 X 16

420641048

$2.96

N

Grease, Super Lube

293550030

$28.99

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99

S

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
