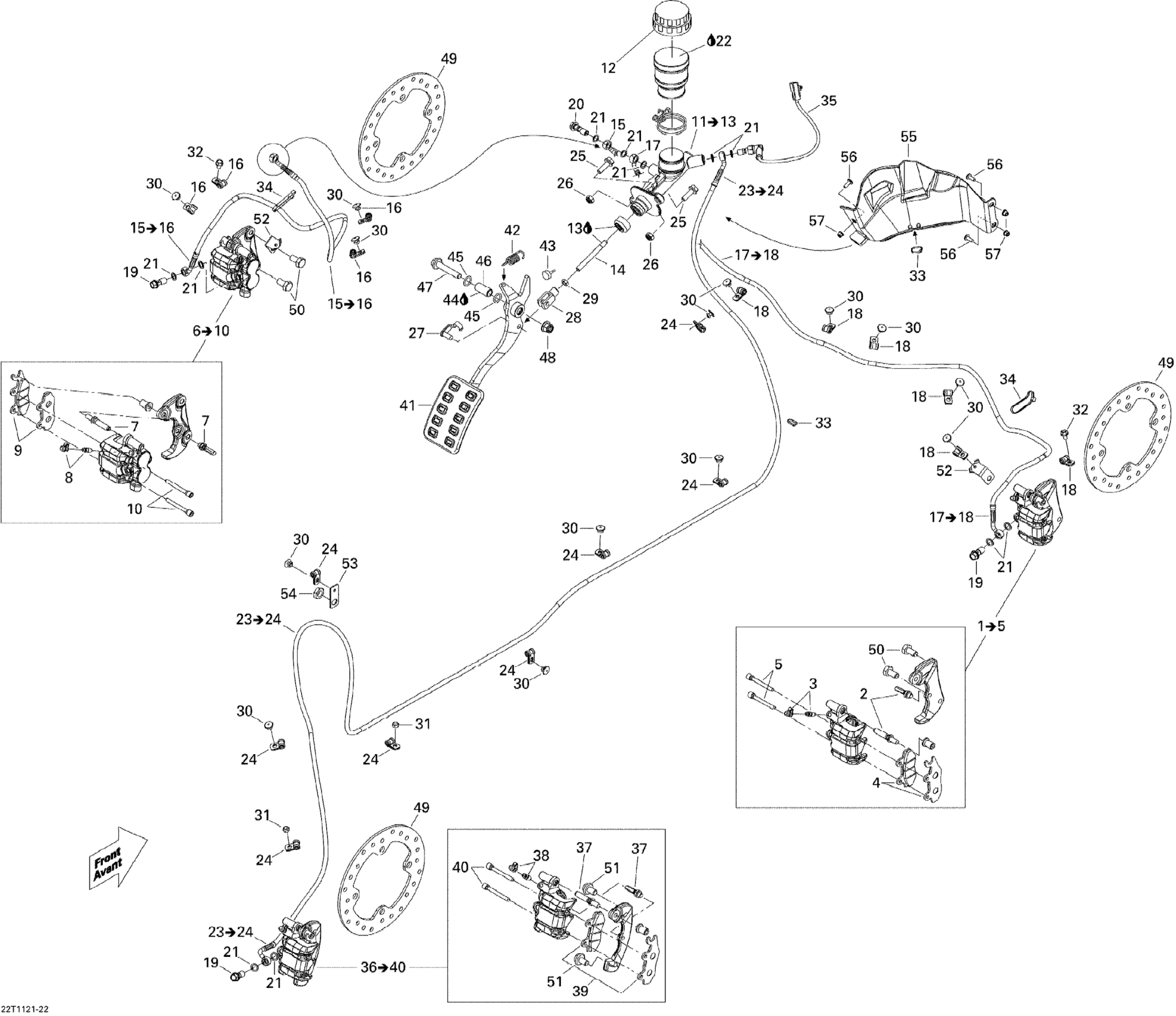

Can-Am Commander 800, 2011 Brakes Diagram

#

Description
Price

1

RH Caliper | Includes 1 to 5

705600678

$219.97

2

Spring Boot Bolt Kit

715500383

$17.66

3

Bleeding Screw

705600080

$15.22

4

RH Brake Pad Kit

715500336

$49.39

5

Sliding Pin Kit

715500337

$18.43

6

LH Caliper | Includes 6 to 10

705600679

$218.49

7

Spring Boot Bolt Kit

715500383

$17.66

8

Bleeding Screw

705600080

$15.22

9

LH Brake Pad Kit

715500335

Unavailable

10

Sliding Pin Kit

715500337

$18.43

11

Master Cylinder Ass'y | Includes 11 to 13

705601505

$230.74

12

Diaphragm Cap Kit

715500332

$27.66

13

Grease

293550055

$4.92

14

Master Cylinder Rod

705600833

$18.43

15

LH Front Hose | Includes 15 to 16

705600943

$78.43

16

Clamp

293650256

$4.36

17

RH Front Hose | Includes 17 to 18

705601265

$83.05

18

Clamp

293650256

$4.36

19

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

20

Banjo Bolt

705600958

$7.60

21

Copper Washer

705601628

$4.34

22

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

23

Rear Flexible Hose | Includes 23 to 24

705600945

$143.05

24

Clamp

293650256

$4.36

25

Hex. Flange Screw M8 X 25

207682544

$0.90

26

Hex. Elastic Stop Nut M8

232581414

$0.47

27

Pin Kit

219702305

$26.62

28

Yoke

705600100

Unavailable

29

Hex. Nut M8

232081414

$0.60

30

Pop Rivet 3/16"

390406500

$0.70

31

Elastic Stop Nut M6

232561414

$1.55

32

Hex. Flange Screw M6 X 10

210261040

$1.25

33

Tie-Rap 180 mm

414115200

$0.09

34

Tie-Rap 180 mm

414115200

$0.09

35

Brake Switch

705601250

$59.97

36

Rear Caliper | Includes 36 to 40

705600872

$219.97

37

Spring Boot Bolt Kit

715500383

$17.66

38

Bleeding Screw

705600080

$15.22

39

RH Brake Pad Kit

715500336

$49.39

40

Sliding Pin Kit

715500337

$18.43

41

Brake Pedal

705600724

$55.35

42

Brake Pedal Spring

705600792

$9.22

43

Rubber Stopper

708000759

$3.61

44

Synthetic Grease, 400 G

293550010

Unavailable

45

O-Ring

293300144

$3.98

46

Inner Spacer

705600815

$10.98

47

Hex. Flange Screw M10 X 55

207605544

$2.78

48

Hex. Flange Elastic Nut M10

233201414

$1.26

49

Brake Disc

705600684

$66.49

50

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.98

51

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

52

Bracket

705601337

$2.69

53

Plate

705600918

Unavailable

54

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

55

LH Front Deflector

705600917

$7.60

56

Torx Screw M5 X 14

250000742

$1.20

57

Elastic Flange Nut M5

233251494

$1.74
