Description

Price

1

Fuel Tank

709000753

$749.99

2

Rollover Valve

709000413

$55.99

3

Ring

709000274

$15.99

4

O-Ring

709000275

$18.10

5

Fuel Pump | Includes 5 to 6

709000759

$372.49

6

Fuel Pre-Filter Kit

709000389

$79.49

7

Neoprene Pad

709000288

$13.99

8

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

9

Fuel Cap | Except Europe

709000529

$28.49

10

Not Available As Spare Parts

XXX

Unavailable

11

Was 709000163 Fuel Line

219704440

$28.99

12

Was 709000163 Fuel Line

219704440

$28.99

13

Was 709000163 Fuel Line

219704440

$28.99

14

Oetiker Clamp

293650046

$2.89

15

Not Available As Spare Parts

XXX

Unavailable

16

Tie-Rap 180 mm

414115200

$0.11

17

Threaded Insert M6 X 1.0

250100242

Unavailable

18

Hex. Flange Screw M6 X 25

207662544

$0.64

19

Flat Washer

224060201

$1.26

20

Rubber Washer

293830037

$2.68

21

Quick Attach 90°

275500700

$16.49

22

Female Quick Fitting Ass'y

709000125

$15.49

23

Locking Clip

513033135

$5.89

24

Y-Fitting, 5/16''

293710136

$6.49

25

Polyurethane Hose 10000Mm Long

219704410

$56.99

26

Filter

709000330

$7.79

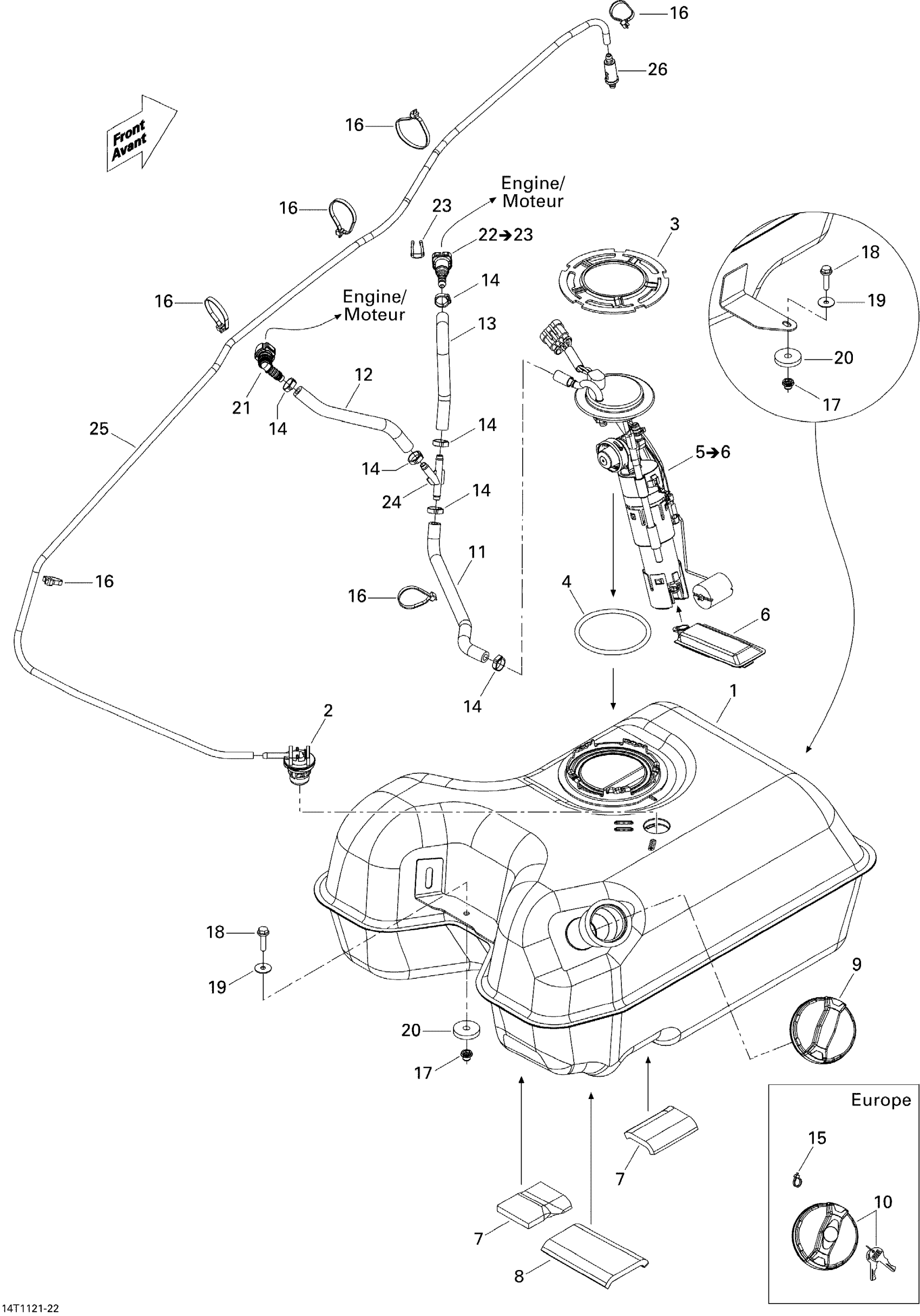

Can-Am Commander 800, 2011 02- Fuel System Diagram

Fuel Tank

Rollover Valve

Ring

O-Ring

Fuel Pump | Includes 5 to 6

Fuel Pre-Filter Kit

Neoprene Pad

NEOPRENE PAD - Call your local BRP dealership

Fuel Cap | Except Europe

Not Available As Spare Parts

Was 709000163 Fuel Line

Was 709000163 Fuel Line

Was 709000163 Fuel Line

Oetiker Clamp

Not Available As Spare Parts

Tie-Rap 180 mm

Threaded Insert M6 X 1.0

Hex. Flange Screw M6 X 25

Flat Washer

Rubber Washer

Quick Attach 90°

Female Quick Fitting Ass'y

Locking Clip

Y-Fitting, 5/16''

Polyurethane Hose 10000Mm Long

Filter
