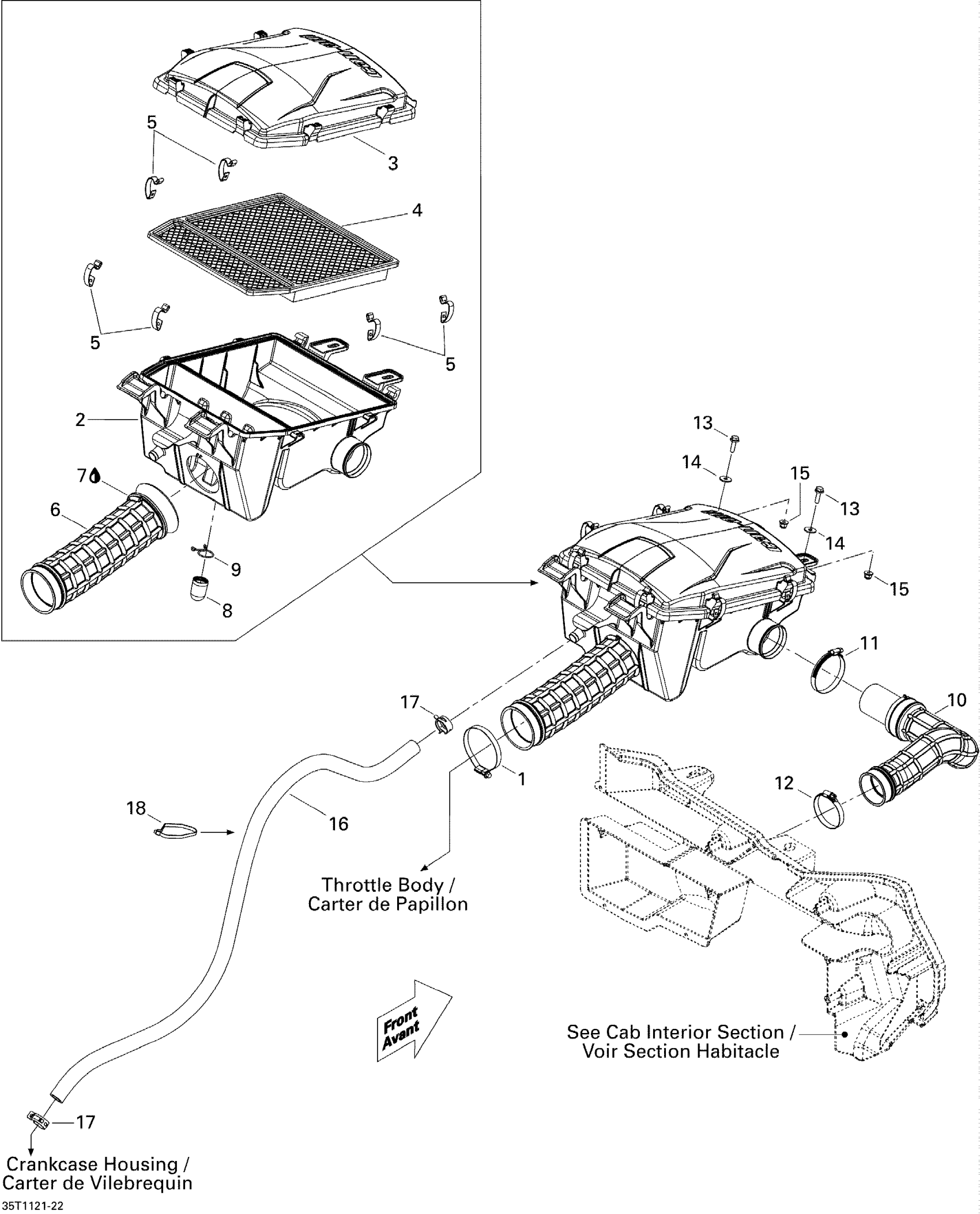

Can-Am Commander 800, 2011 Air Intake Diagram

#

Description
Price

1

Norma Clamp

293650091

$11.12

2

Air Intake Silencer Base

707800517

$54.99

3

Air Intake Silencer Cover

707800326

$33.99

4

Air Filter

707800327

$52.99

5

Cover Bracket

707800249

$9.39

6

Intake Adaptor

707800329

$48.99

7

Loctite 5910, 300 ml

293800081

$57.99

8

Drain Tube

707800080

$8.29

9

Retainer Clip

707800278

$13.99

10

Intake Adaptor

707800322

$61.99

11

Norma Clamp

293650079

$11.60

12

Norma Clamp

293650077

$7.41

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

Flat Washer

250200082

$0.42

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Was 707800411 Hose 15.88 mm

219704438

$12.99

17

Norma Spring Clamp

293650213

$3.17

18

Tie Wrap 368 mm

293750008

$1.04
