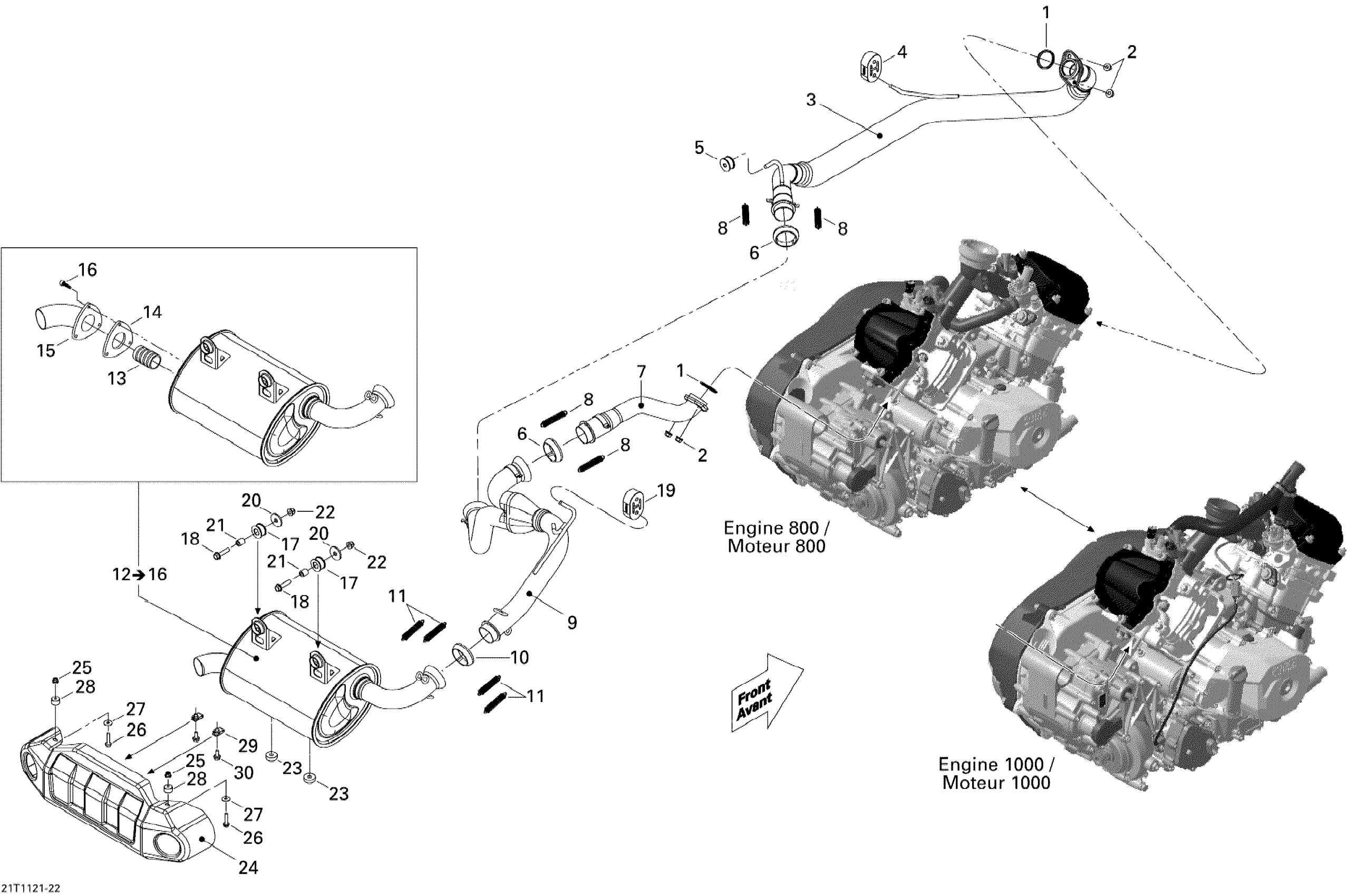

Can-Am Commander 800, 2011 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$10.52

2

Hex. Flange Nut M8

233081416

$1.63

3

Front Head Pipe

707601203

$258.43

4

Rubber Bumper

707600638

$14.37

5

Anti-Vibration Rubber

707600702

$8.34

6

Exhaust Gasket

707601033

$13.29

7

Rear Head Pipe

707601018

$147.66

8

Spring

415107100

$6.20

9

Link Head Pipe

707601020

$258.43

10

Exhaust Gasket

707601033

$13.29

11

Spring

415107100

$6.20

12

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | Includes 12 to 16

707600545

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Spark Arrestor

707601803

$50.74

14

Gasket

715900090

$11.83

15

Muffler Outlet End Piece

715900091

$36.89

16

Socket Head Screw M6 X 20

205062060

$1.92

17

Vibration Damper

707603323

$11.98

18

Hex. Flange Screw M8 X 35

207683544

$1.39

19

Rubber Bumper

707600638

$14.37

20

Washer

503032900

$3.20

21

Bushing

293900106

$4.42

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

Grommet

709200285

$7.09

24

Deflector

707600675

$41.51

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

26

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

27

Flat Washer

250200082

$0.35

28

Bushing

707000882

$3.85

29

Panel Nut M6 X 1.0

250100198

$1.73

30

Hex. Flange Screw M6 X 16

207661644

$0.61
