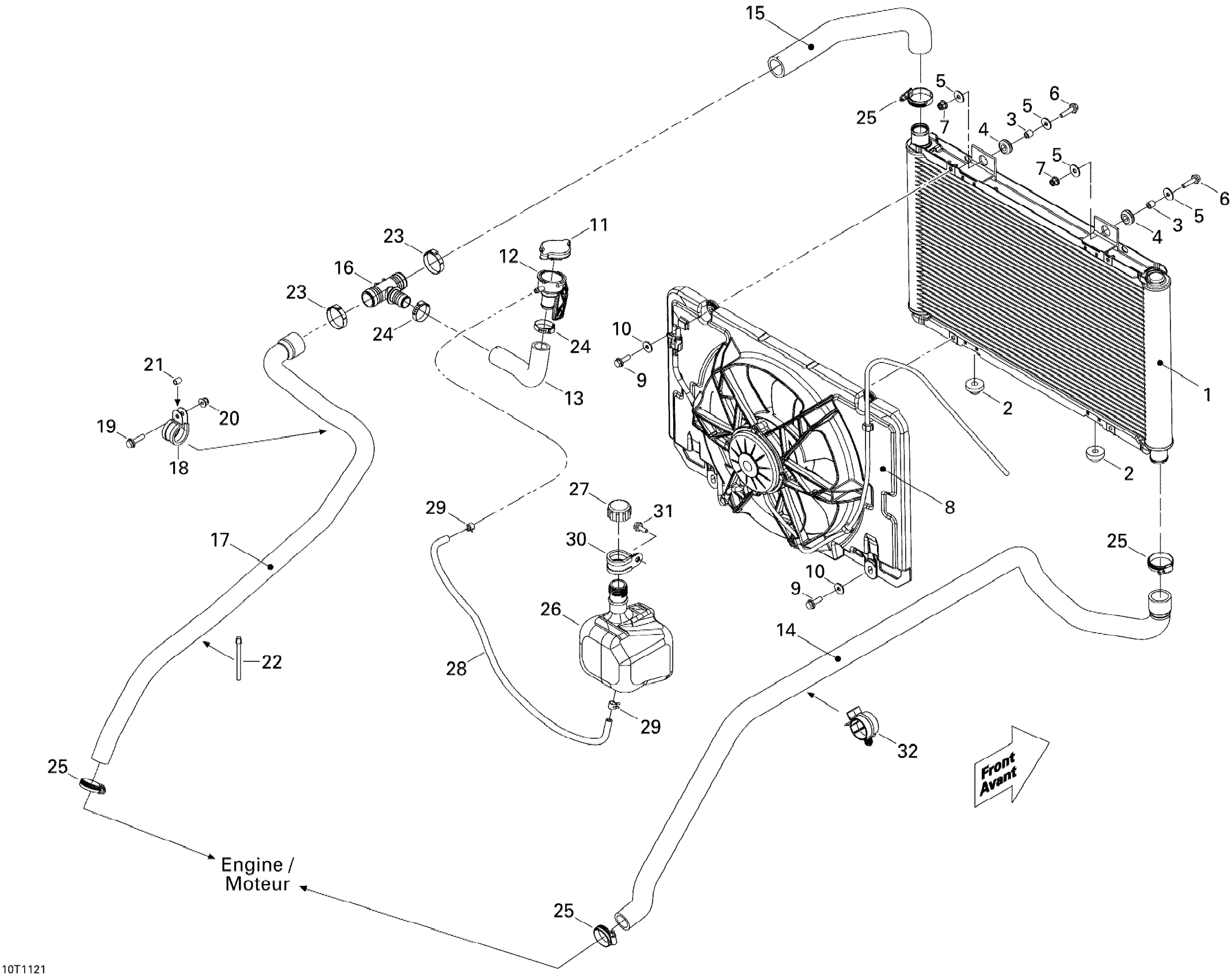

Can-Am Commander 800, 2011 Cooling System Diagram

#

Description
Price

1

Radiator

709200395

$370.99

2

Grommet

709200285

$9.69

3

Bushing

293900105

$7.65

4

Grommet

709000582

$4.69

5

Flat Washer

250200082

$0.42

6

Hex. Flange Screw M6 X 25

207662534

$2.11

7

Flange Elastic Nut M6

233261434

$4.44

8

Fan Ass'y

709200566

$279.99

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Flat Washer 6 mm

234062410

$0.77

11

Radiator Pressure Cap

709200207

$25.49

12

Filler Neck

709200179

$18.49

13

Filler Neck Hose

709200264

$11.07

14

Radiator Inlet Hose

709200355

$65.49

15

Radiator Outlet Hose

709200265

$12.63

16

T-Fitting

509000372

$10.33

17

Intermediate Hose

709200295

$41.49

18

Hose Anchor

709200036

$11.12

19

Hex. Flange Screw M6 X 25

207662534

$2.11

20

Flange Elastic Nut M6

233261434

$4.44

21

Spacer

707000065

$6.67

22

Tie Wrap 368 mm

293750008

$1.04

23

Oetiker Gear Clamp 36.1MM

509000045

$8.29

24

Crimp Clamp

293650099

$4.29

25

Norma Gear Clamp

293650098

$4.44

26

Coolant Tank Ass'y

709200624

$27.99

27

Tank Cap

709200587

$5.40

28

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

29

Spring Clamp

414554800

$0.88

30

Hose Anchor

709200036

$11.12

31

Hex. Flange Screw M6 X 16

207661644

$0.74

32

Retainer

275500590

$9.69
