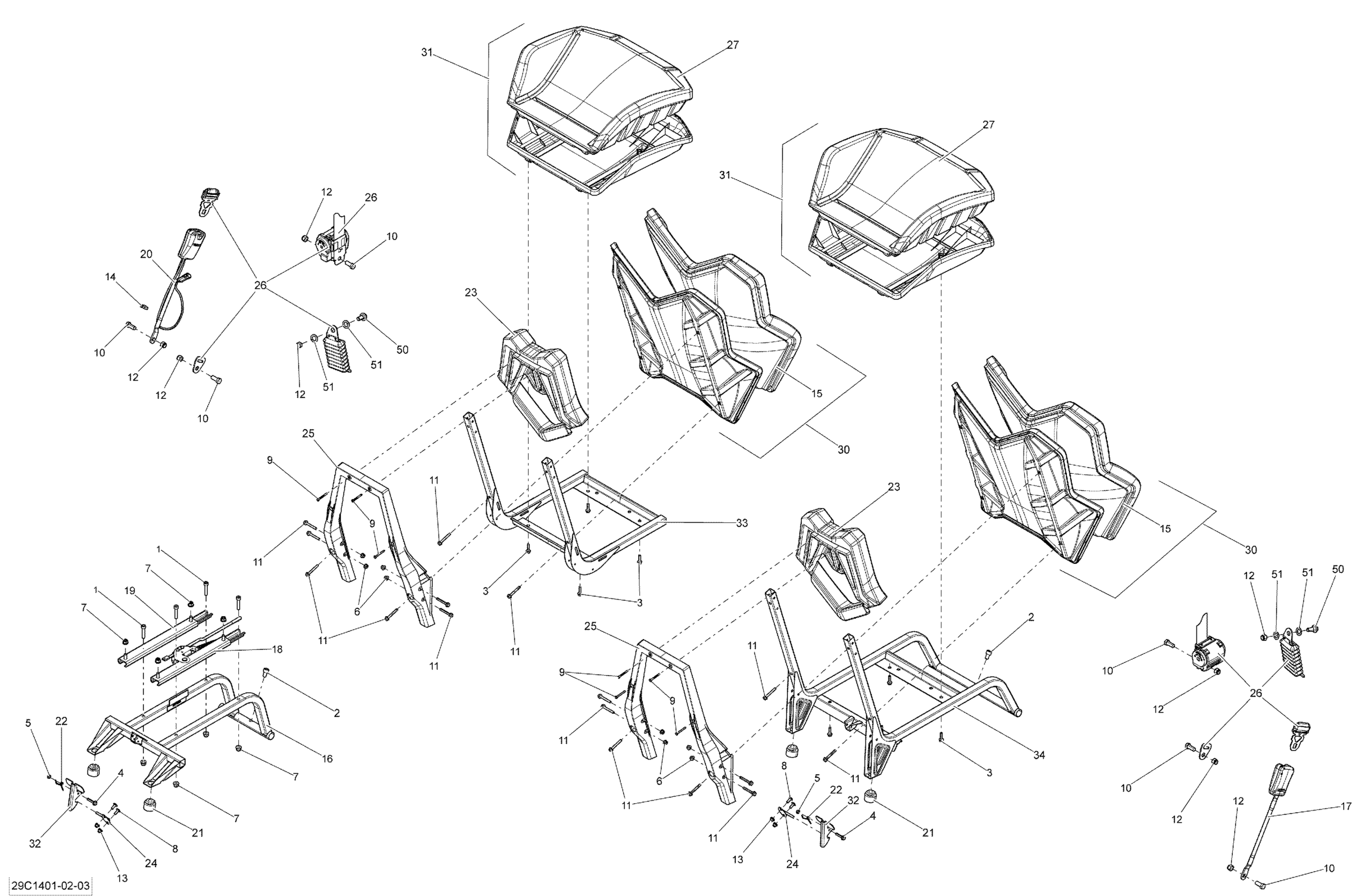

Can-Am Commander 1000 STD, DPS, XT, XT-P, 2014 Seat Diagram

#

Description
Price

1

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

2

Socket Screw M10 X 16

205501644

$3.38

3

Hex. Flange Screw M6 X 25

207562544

$1.39

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

5

Hex. Elastic Stop Nut M6

232561600

$0.92

6

Hex. Elastic Flange Nut M6

233161464

$0.83

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Torx Screw M6 X 16

250000223

$1.74

9

HEX. WASHER HEAD SCREW PT K50 X 40 - Call your local BRP dealership

250000490

Unavailable

10

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

11

Hex. Flange Screw M6

250000672

$1.74

12

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

13

Threaded Insert M6 X 1.0

250100242

Unavailable

14

Tie Wrap 368 mm

293750008

$0.85

15

Backrest Cover

708000675

$92.28

16

Seat Member

708000667

$55.35

17

Passenger Buckle Side

708000844

$50.74

17

PASSENGER BUCKLE SIDE - Call your local BRP dealership | Europe

708000857

Unavailable

18

RH RAIL - Call your local BRP dealership

708000846

Unavailable

19

LH Rail

708000848

$50.74

20

Driver Buckle Side | Europe

708000856

Unavailable

20

Driver Buckle Side

708002061

$69.20

21

Rubber Bumper

708001671

$2.31

22

Spring

708000921

$1.15

23

Head Rest

708001074

$96.89

24

RETAINING ROD - Call your local BRP dealership

708001238

Unavailable

25

Seat Support

708001245

$27.66

26

SAFETY BELT - Call your local BRP dealership | Europe

708001130

Unavailable

26

Safety Belt

708001302

$272.28

27

Seat Cover

708001103

$110.74

30

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

31

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

32

Seat Latch

708001355

$2.75

33

Operator Seat Frame

708001356

$313.82

34

Passenger Seat Frame

708001357

$304.58

50

Safety Belt Screw

708000890

$3.68

51

Position Washer

708000891

$1.15
