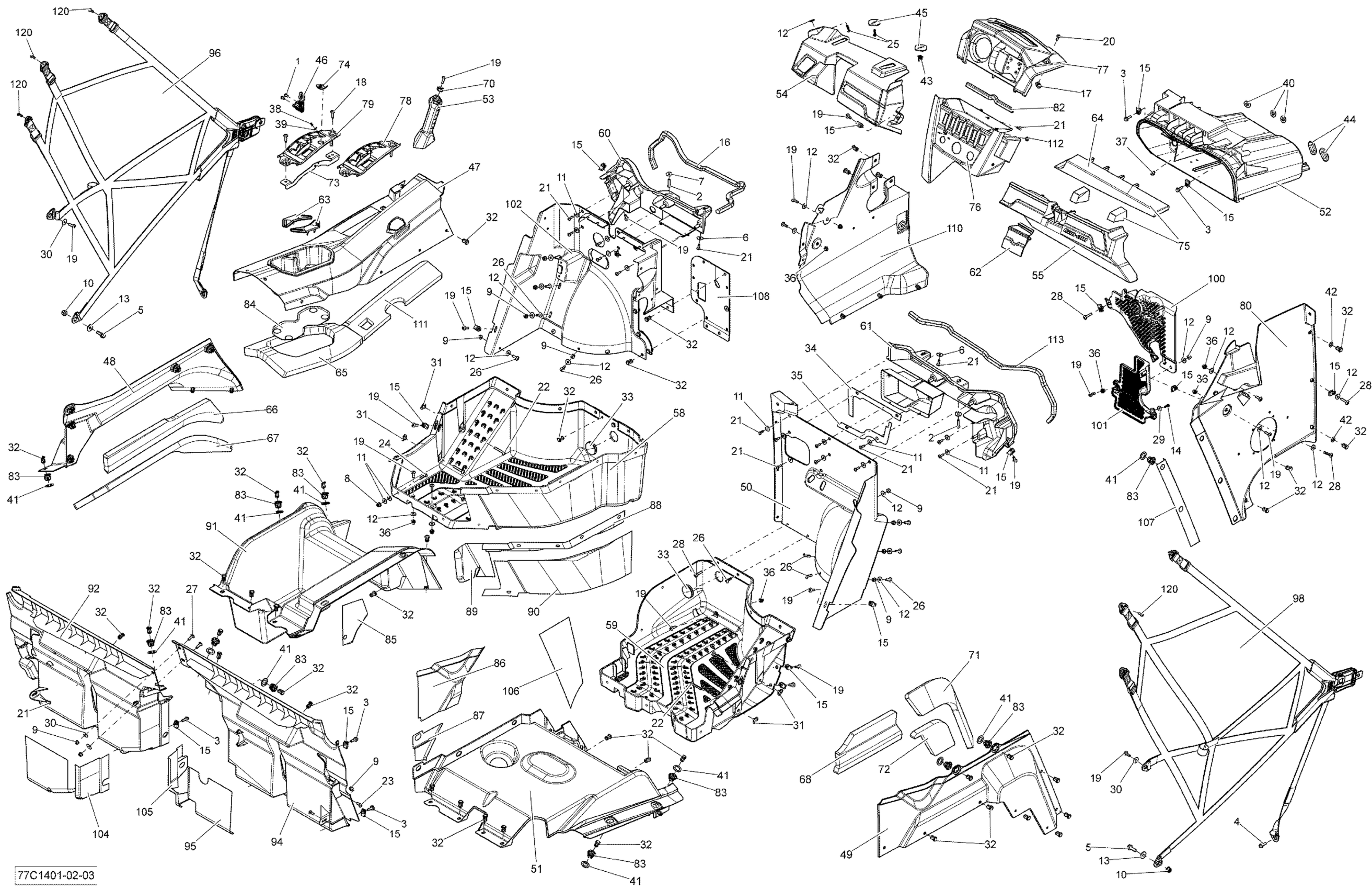

Can-Am Commander 1000 STD, DPS, XT, XT-P, 2014 Cab Interior Diagram

#

Description
Price

1

Socket Head Screw M5 X 10

205951046

$2.38

2

Hex. Screw M6 X 25

207162544

$1.05

3

Hex. Flange Screw M6 X 20

207662034

$1.74

4

Hex. Flange Screw M6 X 20

207662044

$1.66

5

Hex. Flange Screw M8 X 25

207682544

$0.90

6

Flat Washer

224060201

$1.15

7

Flat Washer

224061201

$1.11

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

9

Hex. Flange Elastic Nut M6

233261494

$1.26

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Flat Washer 6 mm

234062410

$0.64

12

Stainless Steel Flat Washer

234062670

$1.74

13

Flat Washer 8 mm

234082410

$1.11

14

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

15

Panel Nut M6 X 1.0

250100198

$1.73

16

Was 293200017 Neoprene Seal

219704365

$118.27

17

Panel Nut M5 X 0.8

250000958

$3.48

18

Torx Screw M6 X 25 | XT Models

250000728

$3.61

19

Torx Screw M6 X 20

250000722

$1.34

20

Torx Screw M5 X 20

250000724

$1.39

21

Torx Screw K50 X 16

250000720

$1.39

22

Torx Screw M6 X 45

250000215

$1.56

23

Torx Screw M6 X 16

250000755

$0.72

24

Torx Screw M6 x 25

250000284

$1.74

25

Truss Head Torx Screw K50 X 20

250000297

$2.06

26

Hex. Socket Screw M6 X 20

250000770

$1.63

27

Torx Truss Screw M6 X 20

250000350

$4.39

28

Torx Truss Screw M6 X 30

250000843

$1.74

29

Washer M5

250200025

$0.61

30

Flat Washer

250200040

$1.82

31

Nut Welded, M6

293100003

$6.32

32

Tuflok Plastic Rivet

293150230

$1.21

33

Rubber Cover

293250242

$5.38

34

Upper Seal

293250252

$2.75

35

Bottom Seal

293250253

$2.99

36

Threaded Insert M6 X 1.0

250100242

Unavailable

37

Rubber Bumper

293830005

$5.33

38

Rivet

390401400

$0.51

39

WASHER - Call your local BRP dealership

391301000

$0.65

40

CAP - Call your local BRP dealership

414859400

Unavailable

41

Washer

503189273

$3.20

42

Washer

506151252

$3.11

43

Edge Clip

517302785

$0.70

44

Oblong Grommet

705003668

$4.54

45

Support Plate

705003841

$0.91

46

Padlock with Key

707000666

$27.66

47

Central Console Ass'y

715001247

$226.12

47

CENTRAL CONSOLE ASS'Y - Call your local BRP dealership | Europe

715001249

Unavailable

48

LH Side Console

707900001

$41.51

49

RH Side Console

707900002

$36.89

50

RH Front Floor

707900004

$78.43

51

RH Under Seat Plate

707900006

$106.12

52

Storage Bin

707900009

$110.74

52

Storage Bin | XT

707900046

$96.89

53

Passenger Handle

707900011

$12.91

54

Dashboard Ass'y

715001250

$78.43

55

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

58

LH Lower Floor

707900022

$253.82

59

RH Lower Floor

707900023

$184.58

60

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

$11.98

61

SUPPORT_PANEL RH - Call your local BRP dealership

707900030

Unavailable

62

Latch

707900031

$8.29

63

Cup Retainer

707900036

$6.45

64

Trim Glove Box

707900062

$17.66

65

REAR CENTRAL CONSOLE FOAM - Call your local BRP dealership

707900042

Unavailable

66

Left Upper Lateral Console Foam

707900620

$15.35

67

LH Lower Lateral Console Foam

707900621

$20.74

68

RH Lateral Console Foam

707900622

$15.35

70

Connector Tube

707900048

$6.45

71

RH Lateral Console Foam

707900623

$15.35

72

RH Lateral Console Foam

707900624

$15.35

73

LOCK SUPPORT - Call your local BRP dealership | Europe

707900303

Unavailable

74

CAP - Call your local BRP dealership | Europe

707900060

Unavailable

75

Trim Glove Box

707900062

$17.66

76

Central Dashboard Ass'y

715001265

$59.97

76

Lower Central Dashboard Ass'y | Europe

707900019

$41.51

77

Not Available As Spare Parts

XXX

Unavailable

78

Lever Indicator

707900070

$14.75

79

Lever Indicator | Europe

707900071

$14.75

80

RH Fixe Side Console

707900021

$73.82

82

Was 271000110 Protection Trim

219704353

$15.03

83

Insert

707900133

$2.75

84

Heat Sheet

707900145

$11.06

85

Heat Sheet

707900146

$11.06

86

Heat Sheet

707900147

$8.98

87

Heat Sheet

707900148

$7.37

88

Heat Sheet

707900149

$8.98

89

Heat Sheet

707900150

$1.37

90

Heat Sheet

707900151

$10.14

91

LH Under Seat Plate Kit

715002356

Unavailable

92

LH Rear Deflector

707900164

$92.28

92

LH Rear Deflector

707900164

$92.28

94

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

95

Heat Shield

707900167

$8.45

96

Front LH Safety Net

707900237

$124.58

98

Front RH Safety Net

707900238

$124.58

100

Grille

707900178

$9.18

101

Grille

707900180

$9.18

102

LH Front Floor

707900181

$78.43

103

Heat Shield

707900182

$8.98

104

Heat Shield

707900183

$5.52

105

Heat Shield

707900184

$5.52

106

Heat Sheet

707900190

$8.45

107

Heat Sheet

707900191

$1.37

108

Deflector

707900108

$16.89

108

Deflector

707900192

$16.89

110

Front Side Dash Panel

707900193

$69.20

111

Front Central Console Foam

707900619

$16.12

112

Not Available As Spare Parts

XXX

Unavailable

113

Was 293200017 Neoprene Seal

219704365

$118.27

120

Torx Screw M5 X 14

250000742

$1.20
