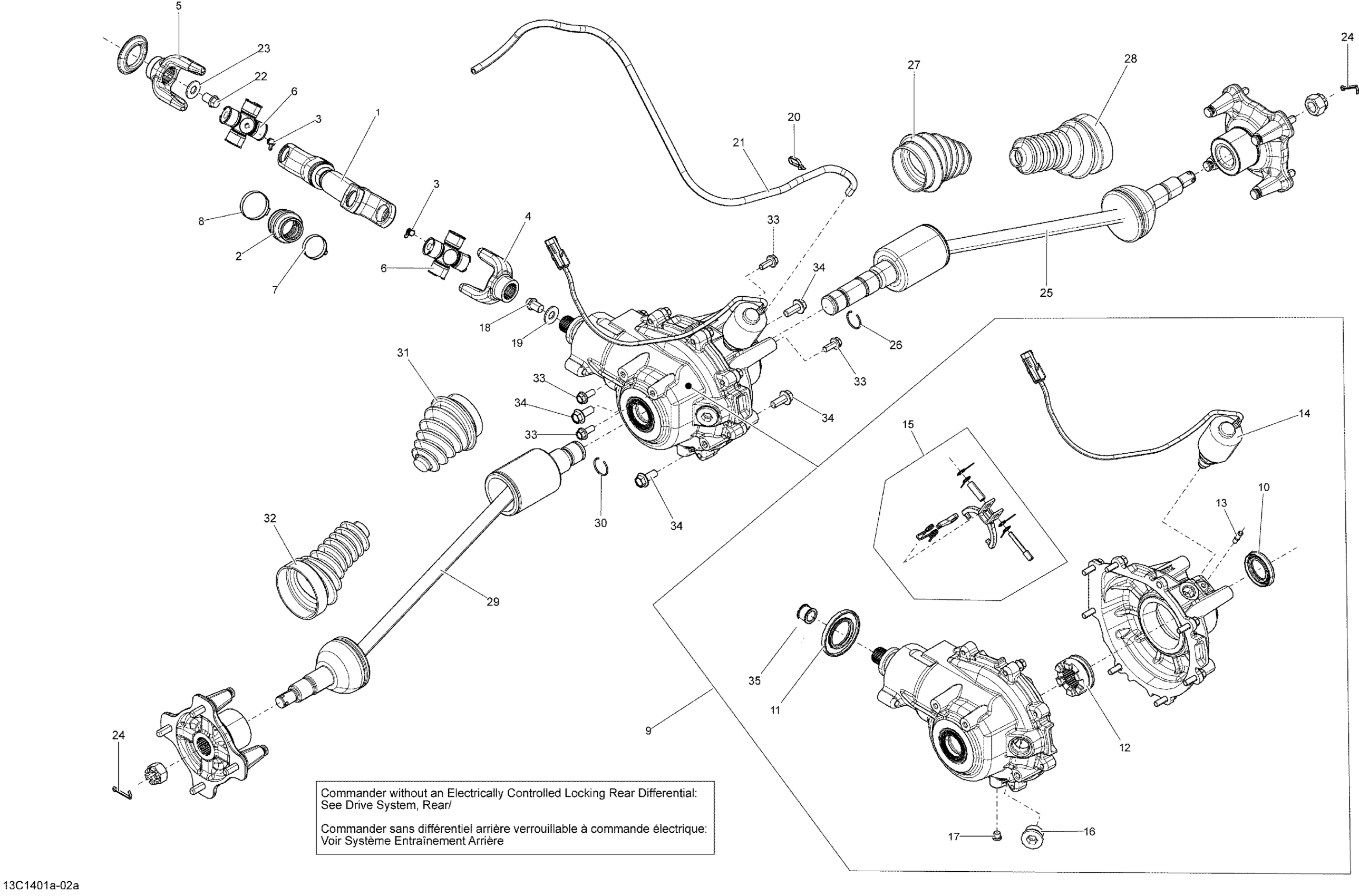

Can-Am Commander 1000 STD, DPS, XT, XT-P, 2014 Drive System, Rear - With Locking Rear Differential_13C1402a Diagram

#

Description
Price

1

DRIVE AXLE ASS'Y - Call your local BRP dealership | Includes 9a to 9h

705502149

Unavailable

2

Rubber Boot

715900118

$13.28

3

Grease Fitting

715900184

$4.09

4

Fixe Yoke

715900101

$26.84

5

Fixed Joint

715900129

$23.10

6

Universal Joint

715900326

$64.15

7

Oetiker Gear Clamp 36.1MM

509000045

$4.07

8

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

9

Rear Differential Ass'y | Includes 30 to 30j

705501942

$1,924.60

10

SEAL - Call your local BRP dealership | 4X4

705501824

Unavailable

11

SEAL - Call your local BRP dealership

705501975

Unavailable

12

GEAR - Call your local BRP dealership

705501825

Unavailable

13

VENT VALVE - Call your local BRP dealership

705501826

Unavailable

14

SOLENOID - Call your local BRP dealership

710003430

Unavailable

15

SHIFT YOKE KIT - Call your local BRP dealership

705501829

Unavailable

16

FILL PLUG - Call your local BRP dealership

705501828

Unavailable

17

Drain Plug

705501827

$13.03

18

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

19

Flat Washer M12

250200102

$2.00

20

Tie Wrap 142 mm

293750002

$1.01

21

Polyurethane Hose 10000Mm Long

219704410

$52.96

22

Hex Flange Screw M12 X 16

250001039

$2.00

23

Flat Washer M12

250200102

$2.00

24

Cotter Pin

250400036

$2.00

25

RH HALF SHAFT - Call your local BRP dealership | Includes 25 to 28

705501967

Unavailable

26

CIRCLIP - Call your local BRP dealership | 4X4

705501832

Unavailable

27

BOOT_CV JOINT KIT - Call your local BRP dealership

705501830

Unavailable

28

BOOT_CV JOINT KIT - Call your local BRP dealership | 4X4

705501831

Unavailable

29

LH HALF SHAFT - Call your local BRP dealership | Includes 240 to 240c

705501968

Unavailable

30

CIRCLIP - Call your local BRP dealership | 4X4

705501832

Unavailable

31

BOOT_CV JOINT KIT - Call your local BRP dealership

705501830

Unavailable

32

BOOT_CV JOINT KIT - Call your local BRP dealership | 4X4

705501831

Unavailable

33

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

34

Hex. Flange Screw M10 X 25

207502546

$2.00

35

SLEEVE - Call your local BRP dealership

705502247

Unavailable
