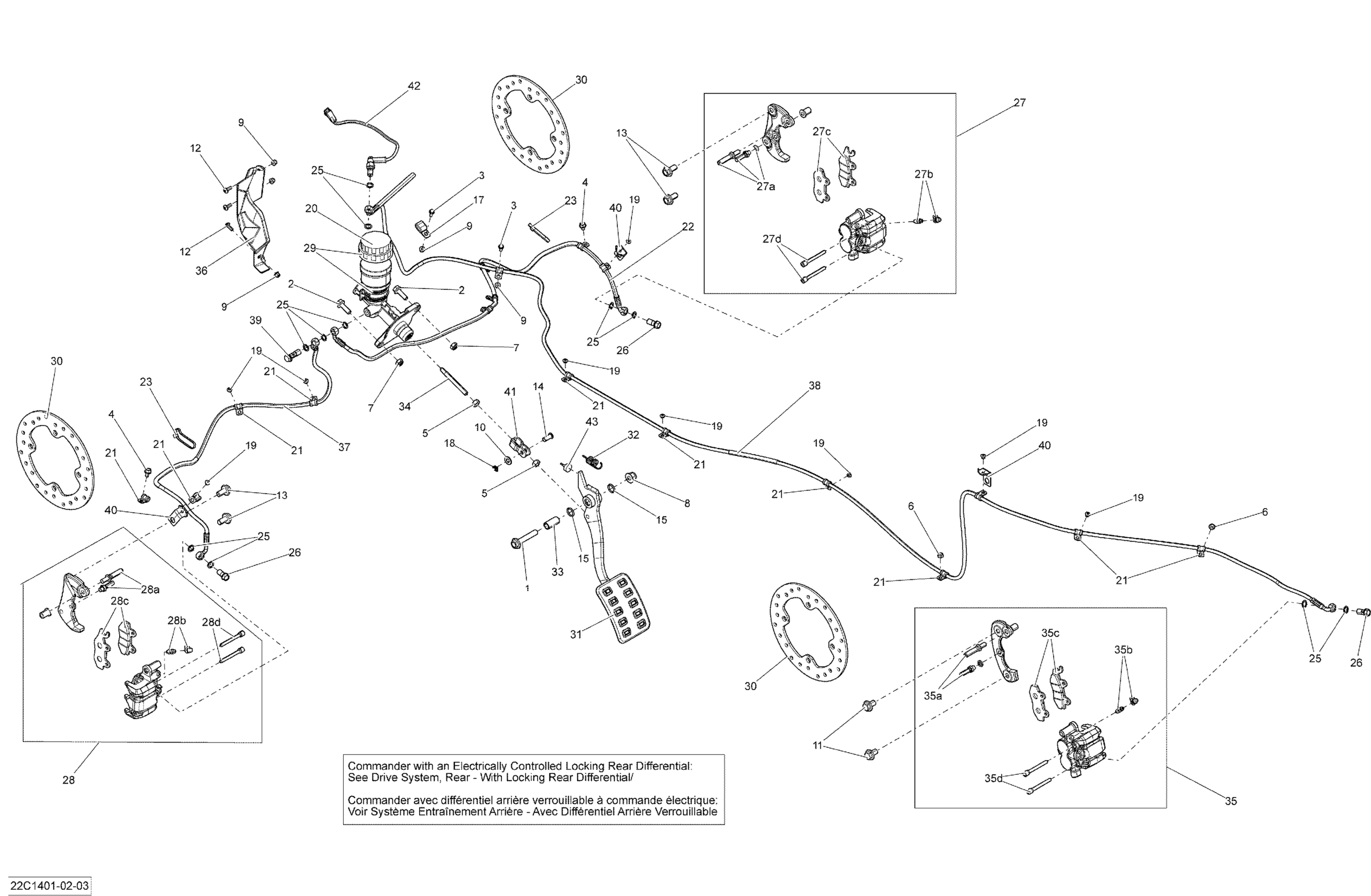

Can-Am Commander 1000 STD, DPS, XT, XT-P, 2014 Brakes Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 55

207605544

$3.38

2

Hex. Flange Screw M8 X 25

207682544

$1.35

3

Hex. Forming Screw M5 X 16

210251650

$1.15

4

Hex. Flange Screw M6 X 10

210261040

$1.48

5

Hex. Nut M8

232081414

$0.72

6

Elastic Stop Nut M6

232561414

$0.55

7

Hex. Elastic Stop Nut M8

232581414

$0.56

8

Hex. Flange Elastic Nut M10

233201414

$1.58

9

Elastic Flange Nut M5

233251494

$2.11

10

Flat Washer M8

234081430

$2.11

11

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

12

Torx Screw M5 X 14

250000742

$1.47

13

Hex. Flange Screw M10 X 20, Scotch Grip

250000601

$3.91

14

Pin | Not Shown

250400058

$8.29

15

O-Ring

293300144

$3.82

17

Clamp

293650220

$0.90

18

Cotter Pin

371800700

$1.01

19

Pop Rivet 3/16"

390402200

$0.35

20

Diaphragm Cap Kit

715500332

$29.49

21

Clamp

293650256

$5.49

22

RH Front Hose | Includes 17 to 18

705601265

$86.99

23

Tie-Rap 180 mm

414115200

$0.11

25

Copper Washer

705601628

$4.44

26

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

27

RH Caliper | Includes 1 to 5

705600678

$317.99

27a

Spring Boot Bolt Kit

715500383

$17.59

27b

Bleeding Screw

705600080

$16.87

27c

RH Brake Pad Kit

715500336

$51.99

27d

Sliding Pin Kit

715500337

$20.49

28

LH Caliper | Includes 6 to 10

705600679

$317.99

28a

Spring Boot Bolt Kit

715500383

$17.59

28b

Bleeding Screw

705600080

$16.87

28c

LH Brake Pad Kit

715500335

$51.99

28d

Sliding Pin Kit

715500337

$20.49

29

Master Cylinder Ass'y | Includes 11 to 13

705601505

$244.99

30

Brake Disc

705600684

$43.49

31

Brake Pedal

705600724

$57.99

32

Brake Pedal Spring

705600792

$9.10

33

Inner Spacer

705600815

$11.60

34

Master Cylinder Rod

705600833

$20.49

35

Rear Caliper | Includes 36 to 40

705600872

$291.49

35a

Spring Boot Bolt Kit

715500383

$17.59

35b

Bleeding Screw

705600080

$16.87

35c

RH Brake Pad Kit

715500336

$51.99

35d

Sliding Pin Kit

715500337

$20.49

36

LH Front Deflector

705600917

$7.90

37

LH Front Hose | Includes 15 to 16

705600943

$79.49

38

Rear Flexible Hose | Includes 23 to 24

705600945

$148.49

39

Banjo Bolt

705600958

$6.35

40

Bracket

705601337

$2.69

41

Yoke | Not Shown

705601142

$15.36

42

Brake Switch

705601250

$59.49

43

Rubber Stopper

708000759

$4.19
