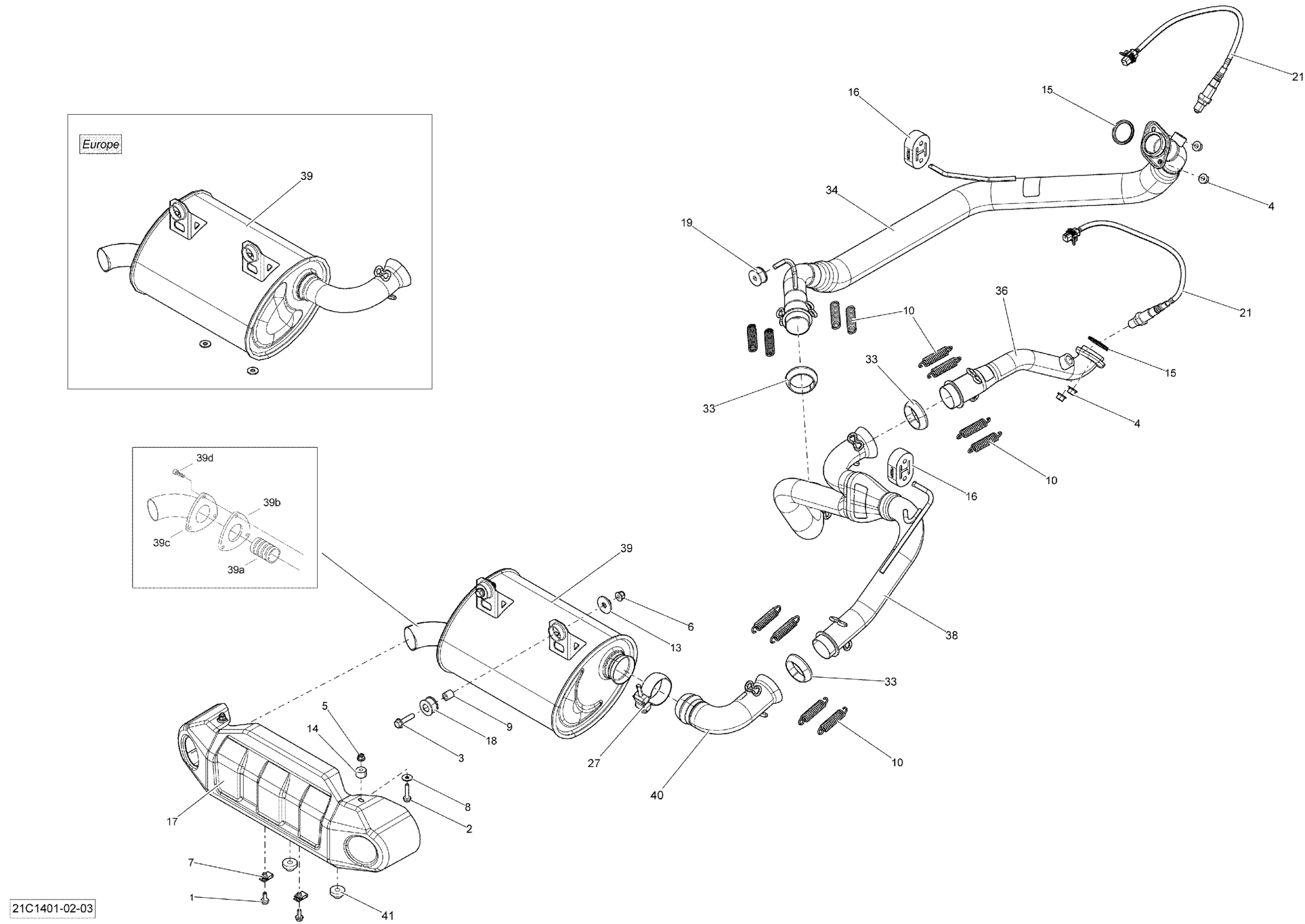

Can-Am Commander 1000 STD, DPS, XT, XT-P, 2014 Exhaust System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

3

Hex. Flange Screw M8 X 35

207683544

$1.39

4

Hex. Flange Nut M8

233081416

$1.63

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Hex. Flange Elastic Nut M8

233281414

$1.14

7

Panel Nut M6 X 1.0

250100198

$1.73

8

Flat Washer

250200082

$0.35

9

Bushing

293900106

$4.42

10

Spring

415107100

$6.20

10

Spring

415107100

$6.20

13

Washer

503032900

$3.20

14

Bushing

707000882

$3.85

15

Gasket

707600317

$10.52

16

Rubber Bumper

707600638

$14.37

17

Deflector

707600675

$41.51

18

Vibration Damper

707603323

$11.98

19

Anti-Vibration Rubber

707600702

$8.34

21

Oxygen Sensor

707600872

$115.67

27

Exhaust Clamp

707600980

$23.05

33

Exhaust Gasket

707601033

$13.29

34

Front Head Pipe

707601013

$258.43

34

Front Head Pipe | Except Model-Europe

707601204

$258.43

36

Rear Head Pipe

707601016

$258.43

36

Rear Head Pipe | Except Model-Europe

707601206

$258.43

38

Link Head Pipe

707601020

$258.43

38

Link Head Pipe | Except Model-Europe

707601207

$258.43

39

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | (Before January 2014) Except Model- Europe, Includes 39a To 39d

707601245

Unavailable

39

Muffler Ass'y | (February 2014 and After) Except Model- Europe, Includes 39a To 39d

707601442

$830.74

39

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | Europe, Includes 12 to 16

707600753

Unavailable

39a

Spark Arrestor

707601803

$50.74

39b

Gasket

715900090

$11.83

39c

Muffler Outlet End Piece

715900091

$36.89

39d

Socket Head Screw M6 X 20

205062060

$1.92

40

LINK HEAD PIPE - Call your local BRP dealership

707601327

Unavailable

41

Grommet

709200285

$7.09
