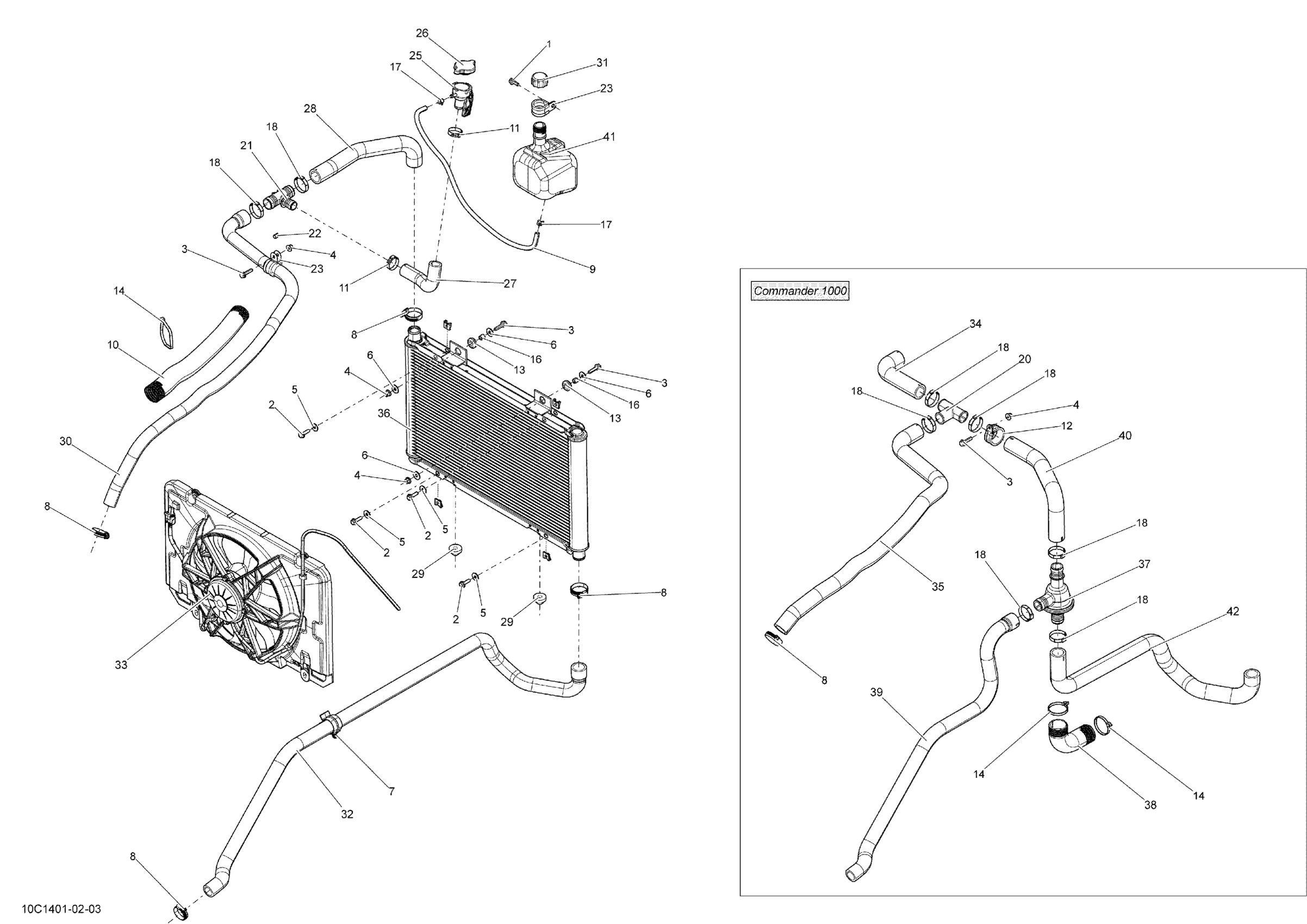

Can-Am Commander 1000 STD, DPS, XT, XT-P, 2014 Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Hex. Flange Screw M6 X 20

207662044

$1.66

3

Hex. Flange Screw M6 X 25

207662534

$1.74

4

Flange Elastic Nut M6

233261434

$3.61

5

Flat Washer 6 mm

234062410

$0.64

6

Flat Washer

250200082

$0.35

7

Retainer

275500590

$7.18

8

Norma Gear Clamp

293650098

$4.28

9

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

10

Tubing 35 MM 1000MM Long

219704428

$8.57

11

Crimp Clamp

293650099

$4.60

12

Hose Retainer

293650218

$8.45

13

Grommet

709000582

$4.38

14

Tie Wrap 368 mm

293750008

$0.85

16

Bushing

293900105

$6.26

17

Spring Clamp

414554800

$0.83

18

Gear Clamp

509000162

$5.84

20

T-Fitting

509000219

$15.35

21

T-Fitting

509000372

$7.87

22

Not Available As Spare Parts

XXX

Unavailable

23

Hose Anchor

709200036

$10.83

25

Filler Neck

709200179

$17.66

26

Radiator Pressure Cap

709200207

$18.82

27

Filler Neck Hose

709200264

$10.14

28

Radiator Outlet Hose

709200265

$10.98

29

Grommet

709200285

$7.09

30

Not Available As Spare Parts

XXX

Unavailable

31

Tank Cap

709200587

$5.29

32

Not Available As Spare Parts

XXX

Unavailable

33

Fan Ass'y

709200566

$267.66

34

Intermediate Hose

709200904

$23.05

35

Intermediate Hose

709200382

$27.66

36

Radiator

709200395

$359.97

37

Thermostat

709200406

$77.32

38

Tubing 35 MM 1000MM Long

219704428

$8.57

39

Pump Hose

709200441

$36.89

40

Hose

709200447

$24.58

41

Coolant Tank Ass'y

709200624

$96.89

42

Hose_Radiator In

709200909

$23.05
