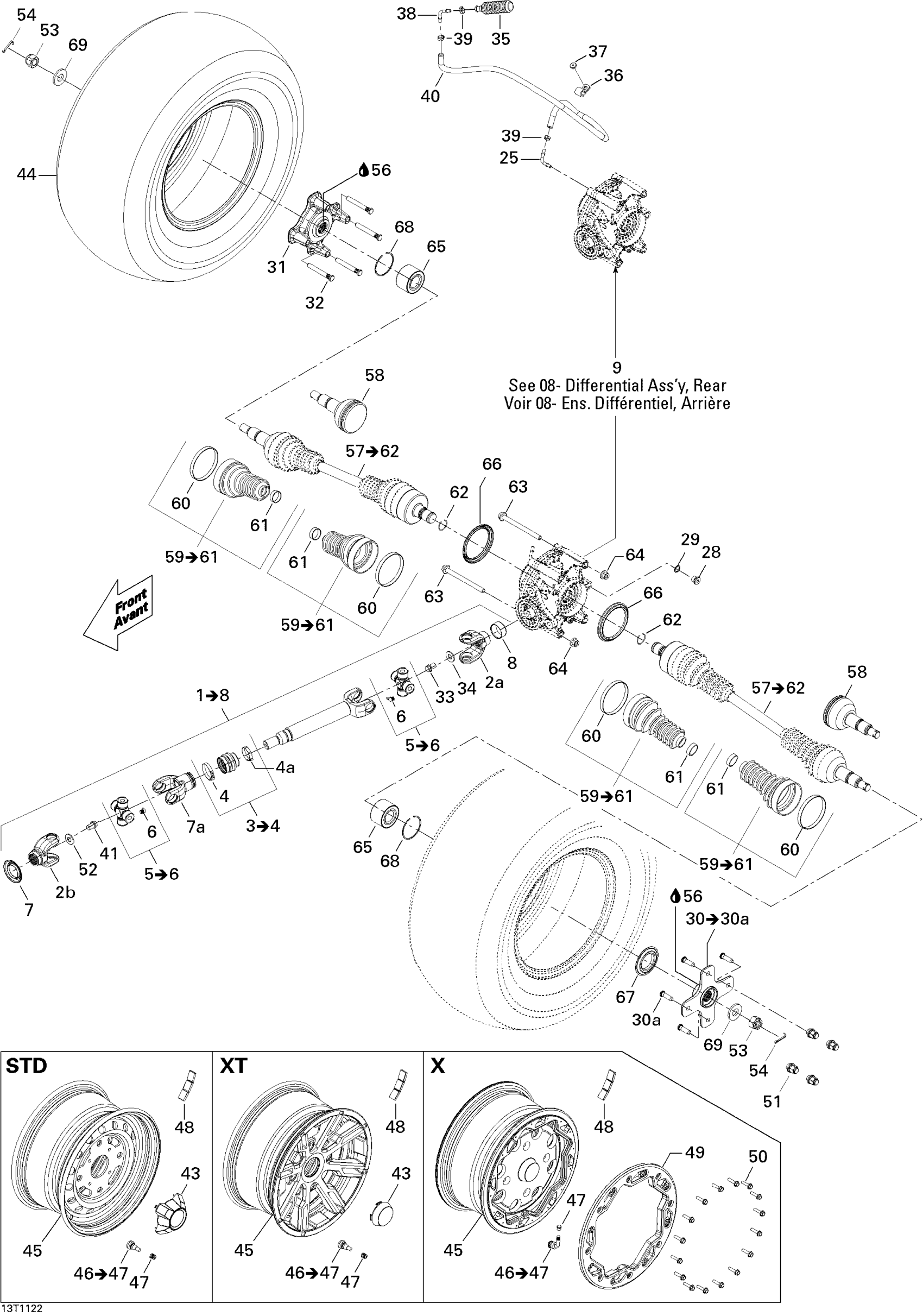

Can-Am Commander 1000, 2011 Drive System, Rear Diagram

#

Description
Price

1

Rear Propeller Shaft Kit | Includes 1 to 8

703500805

$378.43

2a

Fixe Yoke

715900101

$27.66

2b

Fixed Joint

715900129

$23.05

3

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

4

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

5

Universal Joint

715900326

$69.20

6

GREASE FITTING - Call your local BRP dealership

705500841

Unavailable

7

Protector

705501123

$7.37

7a

SLIDING JOINT - Call your local BRP dealership

705501072

Unavailable

8

Wear Ring | 4X4

705400036

$25.35

9

Not Available As Spare Part - Friction Washer

Unavailable

28

Fill Level Plug | 4X4

705500504

$7.61

29

Copper Washer | 4X4

705500506

$0.36

30

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

30a

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

31

Wheel Hub

705401314

$129.20

32

Wheel Stud

705401964

$10.14

33

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

34

Flat Washer M12

250200102

$1.74

35

Rubber Bellow | 4X4

705400552

$6.02

36

Hose Retainer 13 mm

705600232

$11.06

37

Pop Rivet 3/16"

390406500

$0.70

38

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

39

Oetiker Gear Clamp

293650025

$2.46

40

Hose

219704549

$47.66

41

Hex Flange Screw M12 X 16

250001039

$1.74

42

Loctite 271, 10 ml

293800005

$20.77

43

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

43

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

43

Wheel Cap | STD

705400921

$12.91

44

27X11R14 Rear Tire

705502665

$244.58

44

27X11R14 Rear Tire

705502665

$244.58

44

Rear Tire | STD

705501129

$137.66

44

Rear Tire 27X11X12 | X

705502938

$221.51

44

27X11R14 Rear Tire

705502665

$244.58

44

Rear Tire | XT Europe

705501295

$248.43

45

RIM 14 INCH X 8,5 - Call your local BRP dealership | XT International Except Camo

705501812

Unavailable

45

RIM 14 INCH X 8,5 - Call your local BRP dealership | XT International Except Camo

705501812

Unavailable

45

RIM_12 INCH X 8 - Call your local BRP dealership | STD

705501249

Unavailable

45

Rear Rim

705501137

$139.97

45

Rear Rim | XT Camo

705501814

$199.97

45

RIM 14 INCH X 8,5 - Call your local BRP dealership | XT International Except Camo

705501812

Unavailable

46

Rim Valve With Cap

705400193

$6.69

46

VALVE_TIRE WITH CAP FORMED - Call your local BRP dealership | Xxc

705400872

Unavailable

47

Valve Cap

293000110

$1.18

47

VALVE CAP - Call your local BRP dealership

293000111

Unavailable

48

1/2 Oz Weight

219704465

$4.35

49

REINFORCEMENT DISC PLATE - Call your local BRP dealership

705401248

Unavailable

50

Hex. Flange Screw M6 X 25

207662554

$1.48

51

Steel Wheel Nut

250100042

$2.48

51

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

51

Black, Wheel Nut M10 X 1.25

250100184

$2.48

51

Black, Wheel Nut M10 X 1.25

250100184

$2.48

52

Flat Washer M12

250200102

$1.74

53

Hex. Flange Castellated Nut M18

232291413

$2.82

54

Cotter Pin

250400036

$1.74

56

Synthetic Grease, 400 G

293550010

Unavailable

57

Joint Assemble *Half Shaft | Includes 63 to 68

705502359

$232.74

58

CV JOINT - Call your local BRP dealership

705500980

Unavailable

59

Boot Kit

705500870

$41.51

60

OETIKER CLAMP - Call your local BRP dealership

293650204

Unavailable

61

Oetiker Clamp (27,5mm)

293650203

$10.14

62

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

63

Hex. Flange Screw M10 X 125

230602546

$6.08

64

Hex. Flange Elastic Nut M10

233201436

$1.74

65

Ball Bearing

293350150

$51.93

66

Wear Ring

705501124

$7.28

67

Wear Sleeve | 4X4

705501121

$7.28

68

Circlip

293370019

$4.98

69

Conical Spring Washer M18

250200171

$5.28
