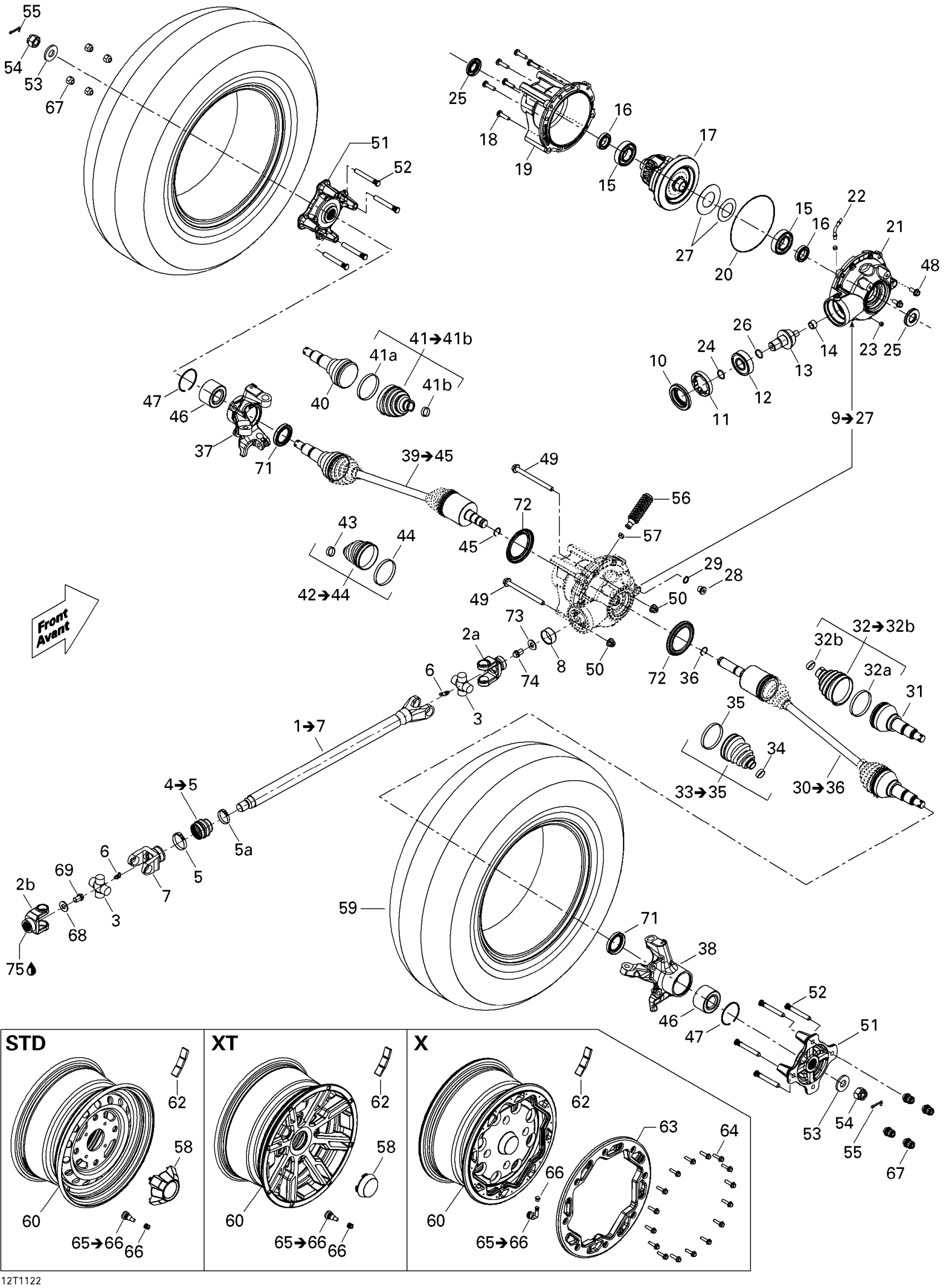

Can-Am Commander 1000, 2011 Drive System, Front Diagram

#

Description
Price

1

Axle Drive Ass'y | Includes 1 to 7

705400915

$286.54

2a

Fixed Yoke Joint

715900116

$55.19

2b

FIX JOINT - Call your local BRP dealership

705400782

Unavailable

3

Ens. Croix*U-Joint Cross Kit

715900325

$65.64

4

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

5a

Collar | 4X4

705400148

Unavailable

6

GREASE FITTING - Call your local BRP dealership

715900067

Unavailable

7

Slip Joint

705500762

Unavailable

8

Wear Ring | 4X4

705400036

$24.60

9

Front Differential | Includes 8 to 31

703500907

$1,410.42

10

Oil Seal | 4X4

705401481

$17.88

11

Nut | 4X4

705401603

$33.55

12

Ball Bearing | 4X4

705500260

$29.82

13

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

14

Needle Bearing

705501408

$64.90

15

Ball Bearing | 4X4

705401606

$47.73

16

Ball Bearing | 4X4

293350044

$29.82

17

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

18

Screw | 4X4

705401601

$8.67

19

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

20

Seal | 4X4

705500265

$15.64

21

FRONT COVER - Call your local BRP dealership

705401136

Unavailable

22

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

23

Drain Plug | 4X4

705500894

$10.24

24

O-Ring | 4X4

705500267

$6.06

25

Gasket | 4X4

705401618

$17.13

26

Pinion Gear Shim 1.67 mm

705502061

$15.64

26

Pinion Gear Shim .022"

705500075

Unavailable

26

Pinion Gear Shim

705501162

$14.72

26

Pinion Gear Shim

705501162

$14.72

27

Shim | 4X4

705401604

$51.46

27

Shim | 4X4

705401604

$51.46

28

Fill Level Plug | 4X4

705500504

$8.73

29

Copper Washer | 4X4

705500506

$0.42

30

RH Front - Premium CV Axle | Includes 30 to 36

705401872

$226.84

31

CV Joint

705501238

Unavailable

32

Wheel Boot Kit

705500907

$39.52

32a

OETIKER CLAMP 71,1MM - Call your local BRP dealership

715900139

Unavailable

32b

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

33

Differential Boot Kit

705400512

$39.52

34

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

35

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

36

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

37

LH KNUCKLE - Call your local BRP dealership

705401008

Unavailable

38

RH KNUCKLE - Call your local BRP dealership

705401009

Unavailable

39

LH Front - Premium CV Axle | Includes 39 to 45

705401871

$226.84

40

CV Joint

705501238

Unavailable

41

Wheel Boot Kit

705500907

$39.52

41a

OETIKER CLAMP 71,1MM - Call your local BRP dealership

715900139

Unavailable

41b

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

42

Differential Boot Kit

705400512

$39.52

43

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

44

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

45

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

46

Ball Bearing

293350150

$50.34

47

Circlip

293370019

$4.68

48

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

49

Hex. Flange Screw M10 X 125

230602546

$6.99

50

Hex. Flange Elastic Nut M10

233201436

$2.00

51

Wheel Hub

705401314

$123.10

52

Wheel Stud

705401964

$9.34

53

Conical Spring Washer M18

250200171

$6.06

54

Hex. Flange Castellated Nut M18

232291413

$3.24

55

Cotter Pin

250400036

$2.00

56

Rubber Bellow | 4X4

705400552

$5.84

57

Oetiker Clamp

293650042

$2.82

58

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

58

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

58

Wheel Cap | STD

705400921

$4.36

59

Front Tire

705402168

$228.33

59

Front Tire

705402168

$228.33

59

TIRE_27X9R12 F - Call your local BRP dealership | STD

705400781

Unavailable

59

Front Tire 27X9X12 | X

705402560

$192.51

59

Front Tire

705402168

$228.33

59

Front Tire | XT Europe

705400961

$231.31

59

TIRE_27X9R12 F - Call your local BRP dealership | STD

705400781

Unavailable

60

Front Rim | XT International Except CAMO

705401378

$167.13

60

Front Rim | XT International Except CAMO

705401378

$167.13

60

RIM_12 INCH X 6 - Call your local BRP dealership | STD

705400910

Unavailable

60

Front Rim

705400945

Unavailable

60

Front Rim | XT CAMO

705401379

$199.97

60

Front Rim | XT International Except CAMO

705401378

$167.13

60

RIM_12 INCH X 6 - Call your local BRP dealership | STD

705400910

Unavailable

62

1/2 Oz Weight

219704465

$4.22

63

REINFORCEMENT DISC PLATE - Call your local BRP dealership

705401248

Unavailable

64

Hex. Flange Screw M6 X 25

207662554

$1.43

65

Rim Valve With Cap

705400193

$6.49

65

VALVE_TIRE WITH CAP FORMED - Call your local BRP dealership | Xxc

705400872

Unavailable

66

Valve Cap

293000110

$1.15

66

VALVE CAP - Call your local BRP dealership

293000111

Unavailable

67

Steel Wheel Nut

250100042

$3.07

67

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.15

67

Black, Wheel Nut M10 X 1.25

250100184

$3.54

67

Black, Wheel Nut M10 X 1.25

250100184

$3.54

68

Flat Washer M12

250200102

$2.00

69

Hex Flange Screw M12 X 16

250001039

$2.00

70

Loctite 271, 10 ml

293800005

$23.85

71

O-Ring

293250246

$6.96

72

Wear Sleeve

705400780

$6.73

73

Flat Washer M12

250200102

$2.00

74

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

75

Synthetic Grease, 400 G

293550010

Unavailable
