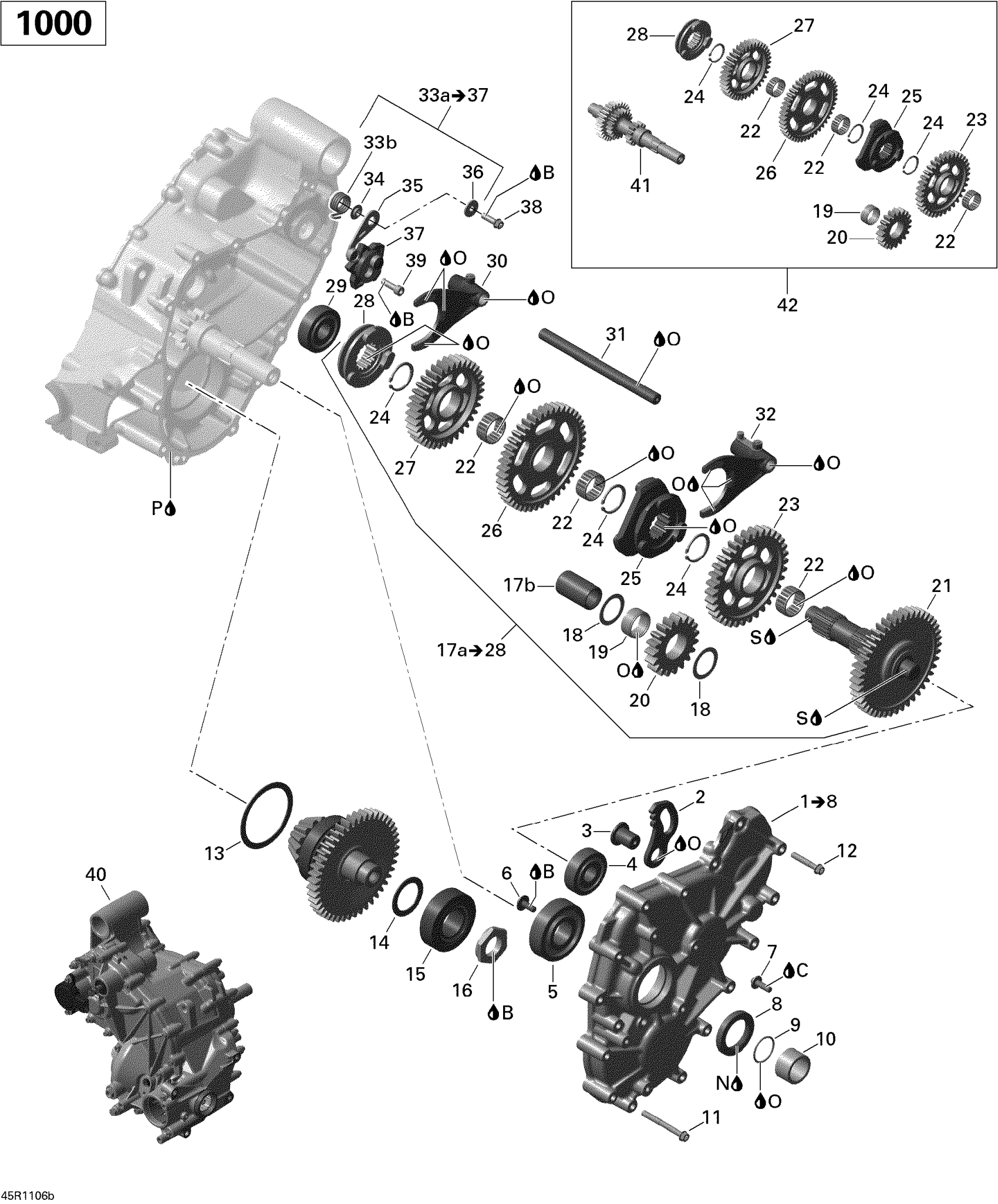

Can-Am Commander 1000, 2011 Gear Box 2_(Type 684788) (Type 684789) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Parking Lock Lever

420257659

$78.43

3

Collar Sleeve

420647123

$36.89

4

Ball Bearing

420932816

$40.37

5

Ball Bearing

420932822

$28.97

6

Torx Screw M6 X 16

420241529

$1.56

7

Distance Screw M6

420441433

$3.68

8

Oil Seal

420950089

$18.43

9

O-Ring

420631612

$3.52

10

Distance Ring

420247118

Unavailable

11

Torx Flange Screw M6 X 55

420440702

$2.54

12

Torx Flange Screw M6 X 35

420641258

$2.78

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17a

Not Available As Spare Part - Friction Washer

Unavailable

17b

Not Available As Spare Part - Friction Washer

Unavailable

18

Thrust Washer

420427011

$5.52

19

Needle Bearing

420932930

$26.12

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Needle Bearing

420632070

$23.05

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Retaining Ring

420845772

$6.98

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Ball Bearing

420932816

$40.37

30

Shift Fork

420657365

$110.74

31

Pivot

420258394

$23.05

32

Shift Fork Ass'y

420657355

$119.97

33a

Not Available As Spare Part - Friction Washer

Unavailable

33b

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Torx Flange Screw M6 X 20

420440207

$2.54

39

Allen Screw M6 X 20

420241939

$0.68

40

GEAR BOX - Call your local BRP dealership

421000698

Unavailable

41

Countershaft

420637705

$364.58

42

Gear Set | Includes 19, 20, 22, 23, 24, 25, 26, 27, 28, 41

420281155

$719.97

B

Loctite 243, 10 ml

293800060

$20.77

C

Sealant Loctite 648

219703000

$35.72

N

Grease, Super Lube

293550030

$24.67

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99

S

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
