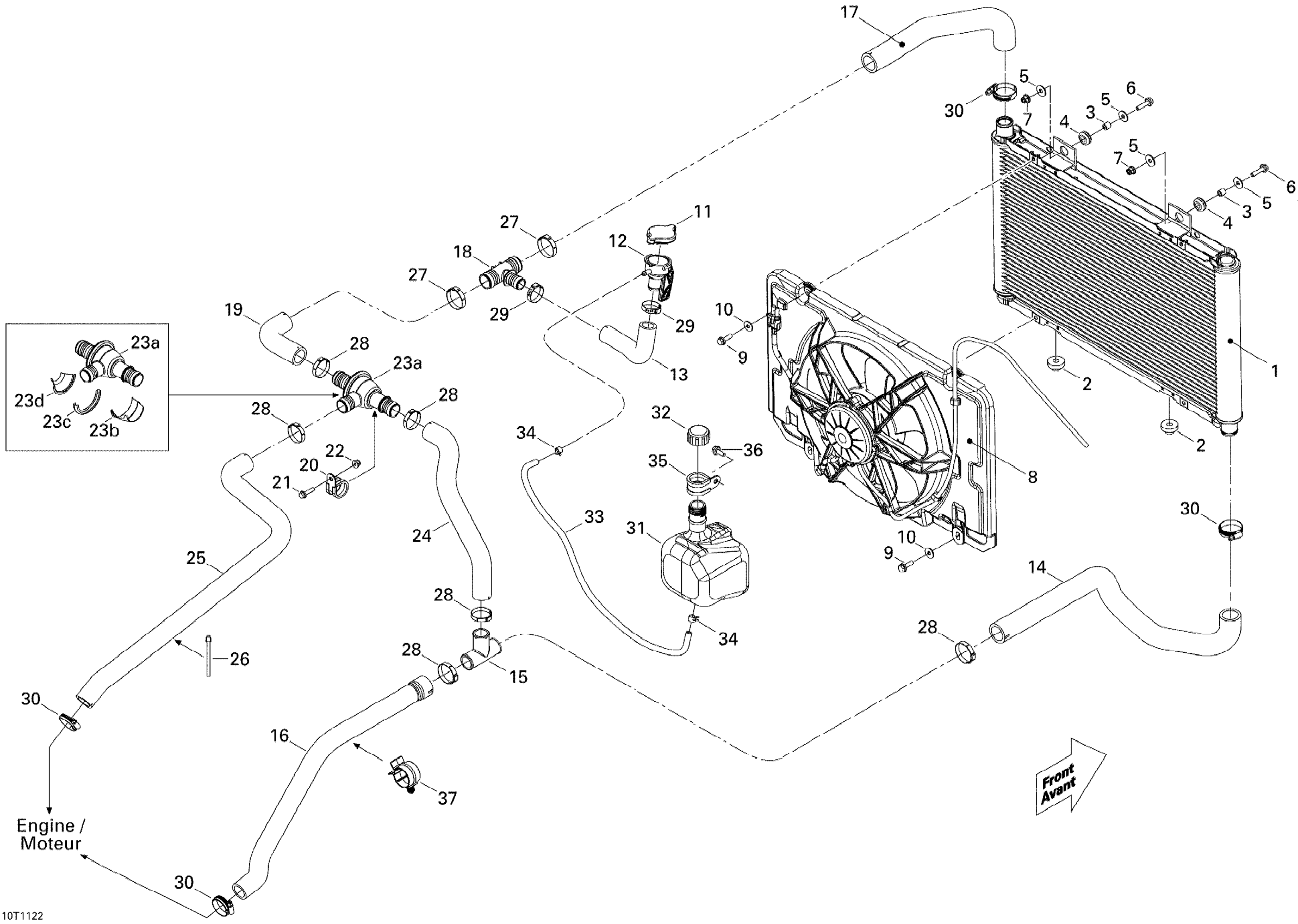

Can-Am Commander 1000, 2011 Cooling System, Until Sept 1st 2010 Diagram

#

Description
Price

1

Radiator

709200395

$359.97

2

Grommet

709200285

$7.09

3

Bushing

293900105

$6.26

4

Grommet

709000582

$4.38

5

Flat Washer

250200082

$0.35

6

Hex. Flange Screw M6 X 25

207662534

$1.74

7

Flange Elastic Nut M6

233261434

$3.61

8

Fan Ass'y

709200566

$267.66

9

Hex. Flange Screw M6 X 20

207662044

$1.66

10

Flat Washer 6 mm

234062410

$0.64

11

Radiator Pressure Cap

709200207

$18.82

12

Filler Neck

709200179

$17.66

13

Filler Neck Hose

709200264

$10.14

14

RADIATOR INLET HOSE - Call your local BRP dealership

709200263

Unavailable

15

T-Fitting

509000219

$15.35

16

PUMP HOSE - Call your local BRP dealership

709200356

Unavailable

17

Radiator Outlet Hose

709200265

$10.98

18

T-Fitting

509000372

$7.87

19

INTERMEDIATE HOSE - Call your local BRP dealership

709200290

Unavailable

20

Hose Retainer

293650218

$8.45

21

Hex. Flange Screw M6 X 25

207662534

$1.74

22

Flange Elastic Nut M6

233261434

$3.61

23a

Thermostat

709200406

$77.32

23b

REFLECTOR - Call your local BRP dealership

709200385

Unavailable

23c

REFLECTOR - Call your local BRP dealership

709200386

Unavailable

23d

REFLECTOR - Call your local BRP dealership

709200387

Unavailable

24

RECIRCULATION HOSE - Call your local BRP dealership

709200266

Unavailable

25

INTERMEDIATE HOSE - Call your local BRP dealership

709200268

Unavailable

26

Tie Wrap 368 mm

293750008

$0.85

27

Oetiker Gear Clamp 36.1MM

509000045

$3.55

28

Oetiker Gear Clamp 36.1MM

509000045

$3.55

29

Crimp Clamp

293650099

$4.60

30

Norma Gear Clamp

293650098

$4.28

31

Coolant Tank Ass'y

709200624

$96.89

32

Tank Cap

709200587

$5.29

33

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

34

Spring Clamp

414554800

$0.83

35

Hose Anchor

709200036

$10.83

36

Hex. Flange Screw M6 X 16

207661644

$0.61

37

Retainer

275500590

$7.18
