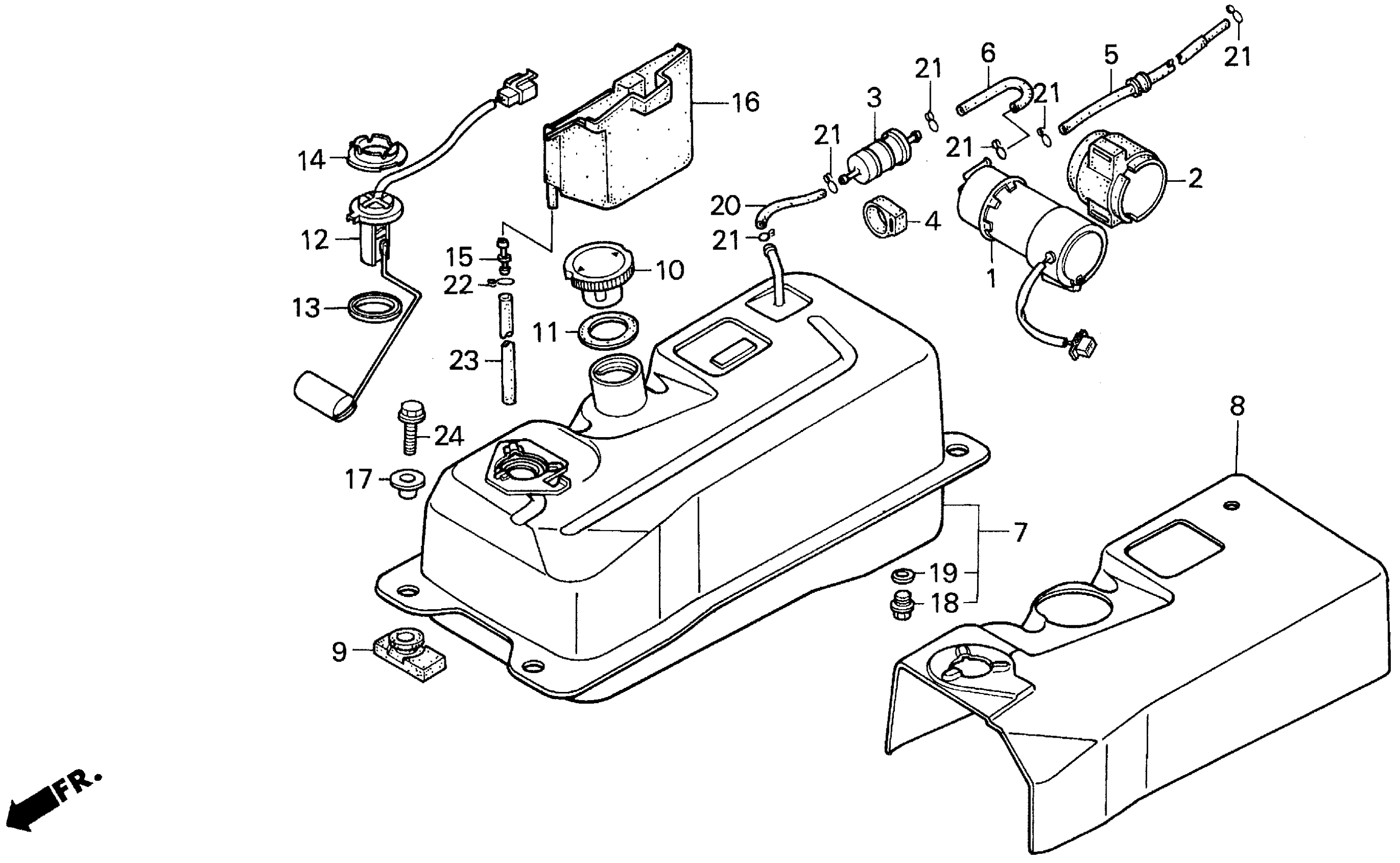

Honda CN250AC (86) HELIX, JPN, VIN# JH2MF021-GK000011 TO JH2MF021-GK002815 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL (MSDS) This part replaces 16710-KS4-005.

16710-KS4-015

$252.48

1

PUMP ASSY., FUEL (MSDS)

16710-KS4-015

$252.48

2

RUBBER, FUEL PUMP MOUNTING

16711-KS4-000

Unavailable

3

FILTER, FUEL

16900-371-004

$30.23

4

CUSHION, FUEL STRAINER

16905-MG7-000

$7.95

5

TUBE, FUEL PUMP (A)

17301-KS4-000

$17.18

6

TUBE, FUEL PUMP (B)

17302-KS4-000

$11.72

7

TANK, FUEL This part replaces 17500-KS4-750.

17500-KS4-751

$401.80

7

TANK, FUEL

17500-KS4-751

$401.80

8

INSULATOR, FUEL TANK

17505-KS4-750

Unavailable

9

RUBBER, FUEL TANK

17613-KS4-000

Unavailable

10

CAP, FUEL FILLER

17620-GE1-871

Unavailable

10

CAP, FUEL FILLER This part replaces 17620-KJ9-870.

17620-GE1-871

Unavailable

11

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

11

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

12

FUEL UNIT (NIPPON SEIKI) | Use up to Frame SN GK004958 This part replaces 37800-KS4-008.

37800-KS4-018

$83.47

12

FUEL UNIT (NIPPON SEIKI)

37800-KS4-018

$83.47

13

GASKET, BASE

37801-GA7-700

$5.17

14

RETAINER, FUEL UNIT

37802-GA7-700

$5.17

15

JOINT, OIL TUBE

55102-166-000

$4.08

16

TRAY, FUEL CAP

64311-KS4-000

Unavailable

17

COLLAR (6.2X13)

90501-MA3-720

$4.78

18

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

19

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

20

BULK HOSE, FUEL (5.5X3000) (5.5X60)

95001-55003-60M

$47.32

21

CLIP, TUBE (B10)

95002-02100

$1.90

22

CLIP, TUBE (C9)

95002-50000

$1.49

23

BULK HOSE, VINYL (7X11X8000) (7X11X180)

95003-19008-60M

Unavailable

24

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

24

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
