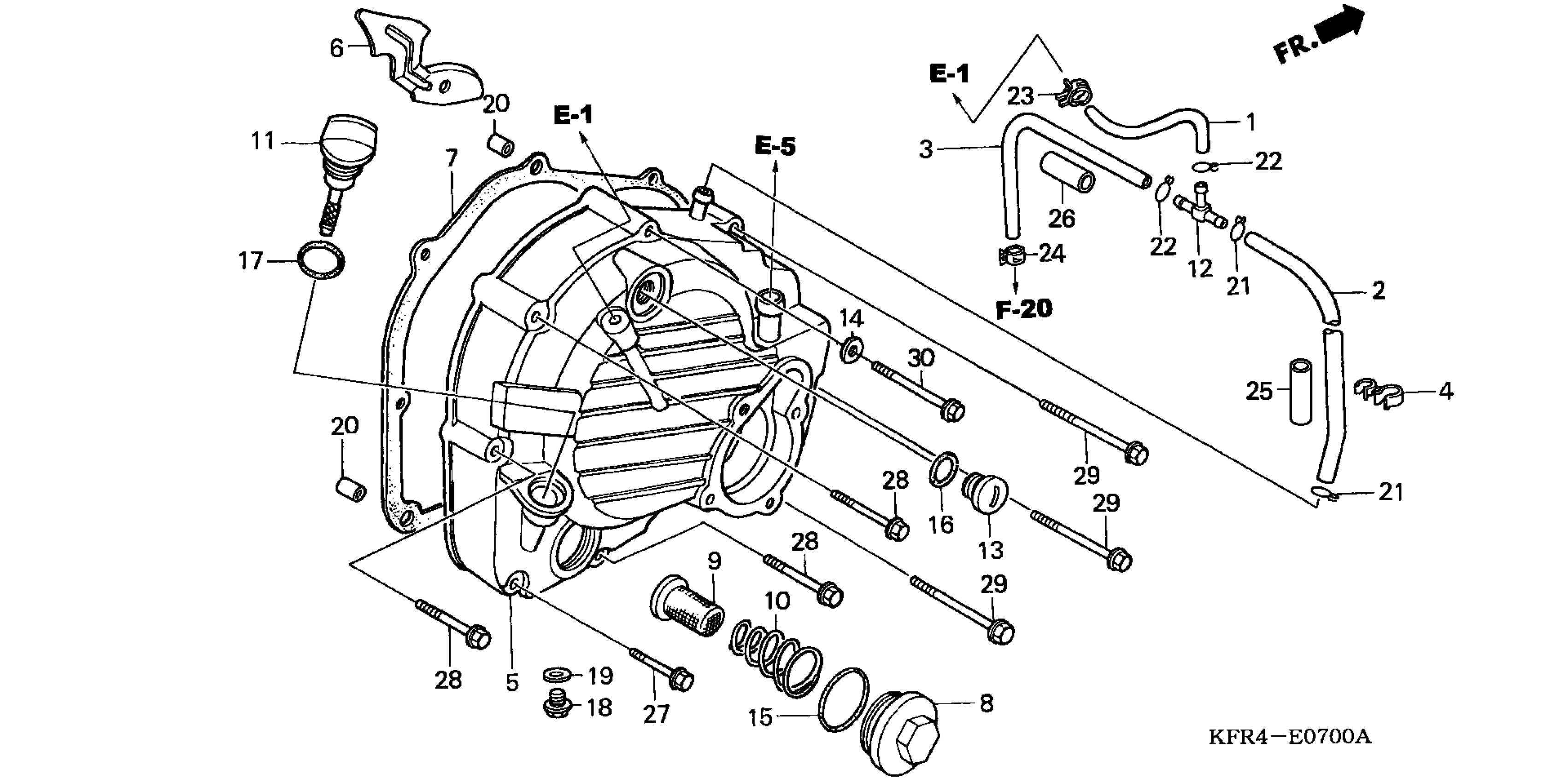

Honda CN250A (99) HELIX, JPN, VIN# JH2MF020-XK400001 TO JH2MF020-XK499999 RIGHT CRANKCASE COVER Diagram

TUBE, BREATHER

11107-KS4-000

Unavailable

TUBE B, BREATHER

11108-KS4-000

Unavailable

TUBE C, BREATHER

11109-KS4-000

$11.90

CLAMP, PIPE

11152-KS4-003

$7.13

COVER, R.

11330-KS4-000

Unavailable

PLATE, BREATHER

11338-KM1-010

$4.44

GASKET, R. COVER This part replaces 11394-KS4-690.

11394-KS4-692

$14.77

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

CAP, VALVE ADJ.

12361-300-000

Unavailable

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

SCREEN, OIL FILTER

15421-107-000

$6.31

SPRING, OIL FILTER SCREEN

15426-KM1-003

Unavailable

DIPSTICK, OIL

15651-KM1-000

$12.66

JOINT, FUEL TUBE

16958-MB1-000

Unavailable

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

CAP, ALTERNATOR

90084-471-000

Unavailable

WASHER A (6MM)

90478-700-000

$1.49

O-RING (30.8MM)

91302-001-020

$3.75

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (18X3)

91307-035-000

$2.92

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (B12)

95002-02120

$2.00

CLAMP, TUBE (D12)

95002-41200-08

$2.34

CLAMP, TUBE (D12.5)

95002-41250-08

$2.34

BULK HOSE, VINYL (11X13X3000) (11X13X170)

95003-36003-10M

Unavailable

BULK HOSE, VACUUM (14X1000) (14X35)

95005-14001-30M

$22.48

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

BOLT, FLANGE (6X80)

96001-06080-00

$2.21
