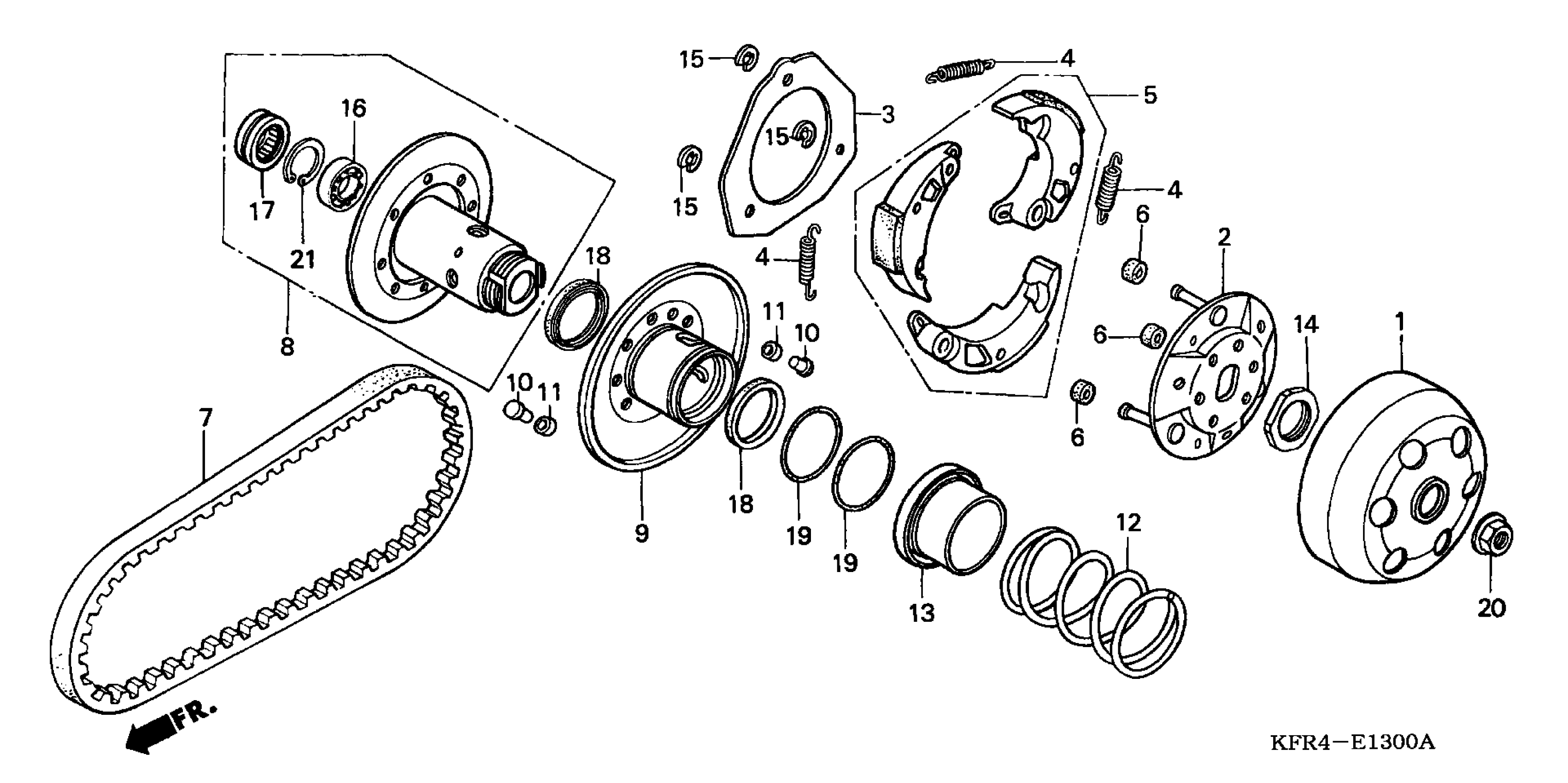

Honda CN250A (99) HELIX, JPN, VIN# JH2MF020-XK400001 TO JH2MF020-XK499999 DRIVEN FACE ('98-'99) Diagram

CLUTCH (OUTER)

22101-KS4-772

$114.08

PLATE, DRIVE

22350-KS4-010

Unavailable

PLATE, CLUTCH SIDE

22361-KAB-000

Unavailable

SPRING, CLUTCH

22401-KM1-670

$4.21

WEIGHT SET, CLUTCH

22535-KS4-306

$74.68

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

BELT, DRIVE

23100-KM1-671

$118.78

FACE SET, DRIVEN

23205-KM1-315

Unavailable

FACE SET, MOVABLE DRIVEN

23221-KM1-305

Unavailable

PIN, ROLLER GUIDE

23225-KM1-010

$2.92

ROLLER, GUIDE

23226-KM1-010

$4.15

SPRING, DRIVEN FACE

23233-KM1-000

Unavailable

COLLAR, SEAL

23237-KS4-000

Unavailable

NUT, SPECIAL (30MM)

90202-KM1-000

$6.69

CIRCLIP (7MM)

90605-166-720

$1.80

BEARING, RADIAL BALL (6902U) (NTN)

91002-GA7-701

$24.58

BEARING, RADIAL BALL (6902U) (NTN) This part replaces 91002-GA7-702.

91002-GA7-701

$24.58

BEARING, NEEDLE (22X29X18) This part replaces 91002-KAB-003.

91002-KFG-003

$11.38

BEARING, NEEDLE (22X29X18)

91002-KFG-003

$11.38

SEAL, DRIVEN FACE (40X47X4)

91211-KM1-005

$8.66

O-RING (47X1.9) (NOK)

91352-KM1-003

$2.92

O-RING (47X1.9) (ARAI)

91352-KM1-005

$2.92

NUT, FLANGE (12MM)

94050-12000

$1.49

CIRCLIP (INNER) (28MM)

94520-28000

$1.49
