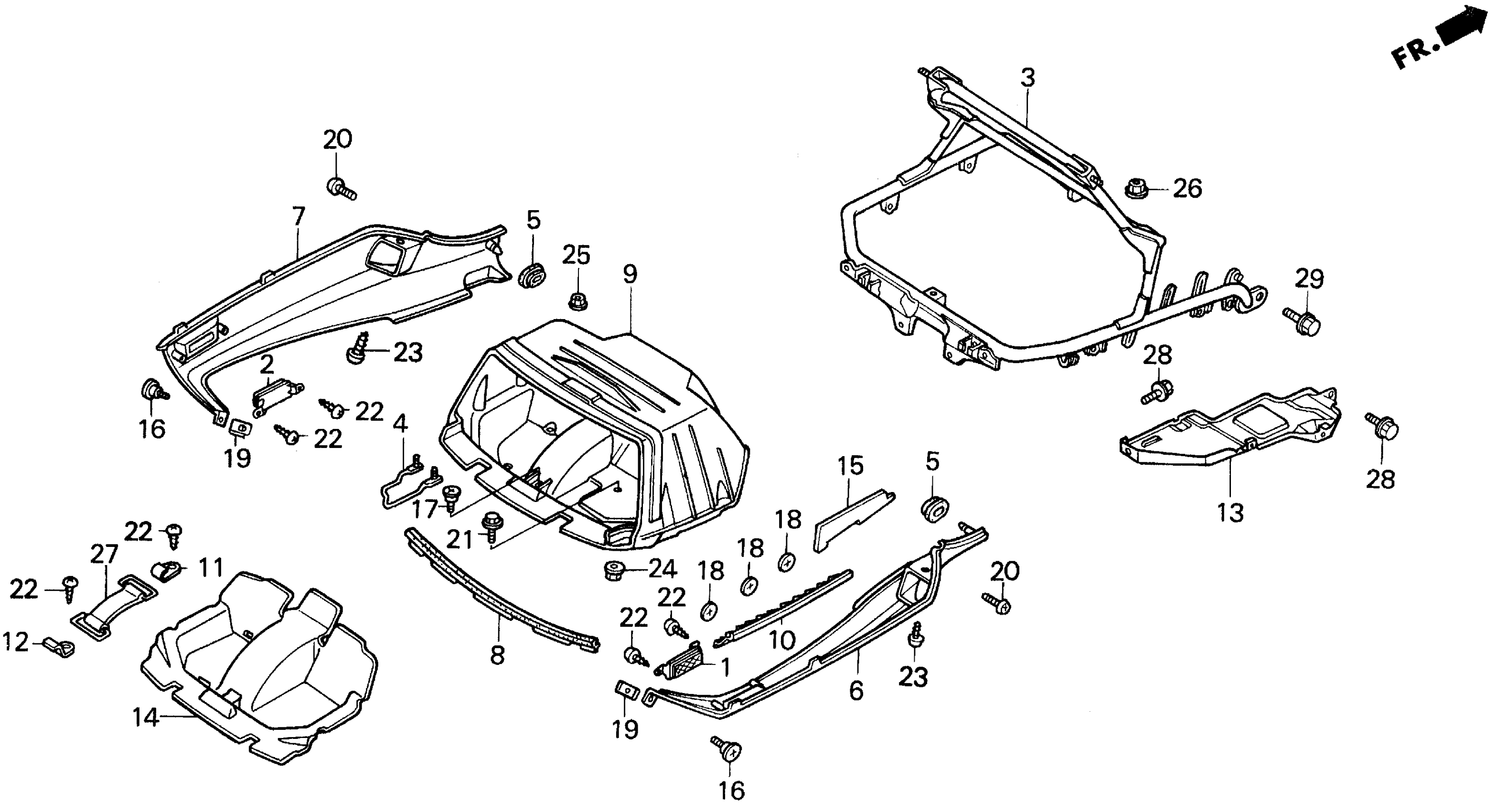

Honda CN250A (97) HELIX, JPN, VIN# JH2MF020-VK200001 TRUNK LOWER COVER Diagram

#

Description
Price

1

REFLECTOR, R. RR. REFLEX

33741-KS4-671

$22.08

2

REFLECTOR, L. RR. REFLEX

33742-KS4-671

Unavailable

3

PIPE, TRUNK (LOWER)

50158-KS4-770

$887.72

4

STRIKER, TRUNK LOCK This part replaces 81308-KS4-010.

81308-KS4-020

$18.41

4

STRIKER, TRUNK LOCK

81308-KS4-020

$18.41

5

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

6

COVER, R. TRUNK (LOWER) *NH266R* (FORMAL GRAY)

83601-KS4-770ZD

Unavailable

7

COVER, L. TRUNK (LOWER) *NH266R* (FORMAL GRAY)

83602-KS4-770ZD

Unavailable

8

SEAL, TRUNK LID

83609-KS4-770

Unavailable

9

TRUNK ASSY. (INNER)

83611-KS4-771

Unavailable

10

INSULATOR B, TRUNK COVER (LOWER)

83617-KS4-000

Unavailable

11

PLATE A, TOOL BAG HOLDER

83622-KS4-000

Unavailable

12

PLATE B, TOOL BAG HOLDER

83623-KS4-000

Unavailable

13

INSULATOR, HEAT

83625-KS4-770

$100.72

14

MAT, TRUNK (LOWER) (INNER) This part replaces 83630-KS4-770.

83630-KS4-771

Unavailable

14

MAT, TRUNK (LOWER) (INNER)

83630-KS4-771

Unavailable

15

INSULATOR A, TRUNK COVER (LOWER)

87603-KS4-000

Unavailable

16

BOLT, COVER SETTING

90142-GC8-000

$5.34

17

BOLT, COVER SETTING

90142-KG8-000

$3.89

18

NUT, SPEED (3MM)

90313-567-000

$3.97

19

NUT, CLIP (6MM)

90344-692-003

$5.55

20

SCREW, PAN (6X14)

93500-06014-0G

$1.49

20

SCREW, PAN (6X14) This part replaces 93500-06014-1G.

93500-06014-0G

$1.49

21

SCREW-WASHER (5X18)

93891-05018-00

Unavailable

22

SCREW, TAPPING (4X12)

93903-24380

$1.49

23

SCREW, TAPPING (4X16)

93903-24480

$1.49

24

NUT, FLANGE (5MM)

94050-05000

$1.49

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

NUT, FLANGE (8MM)

94050-08000

$1.49

27

BAND B1, BATTERY

95012-12001

$5.90

28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

29

BOLT, FLANGE (10X16)

95701-10016-00

$1.49
