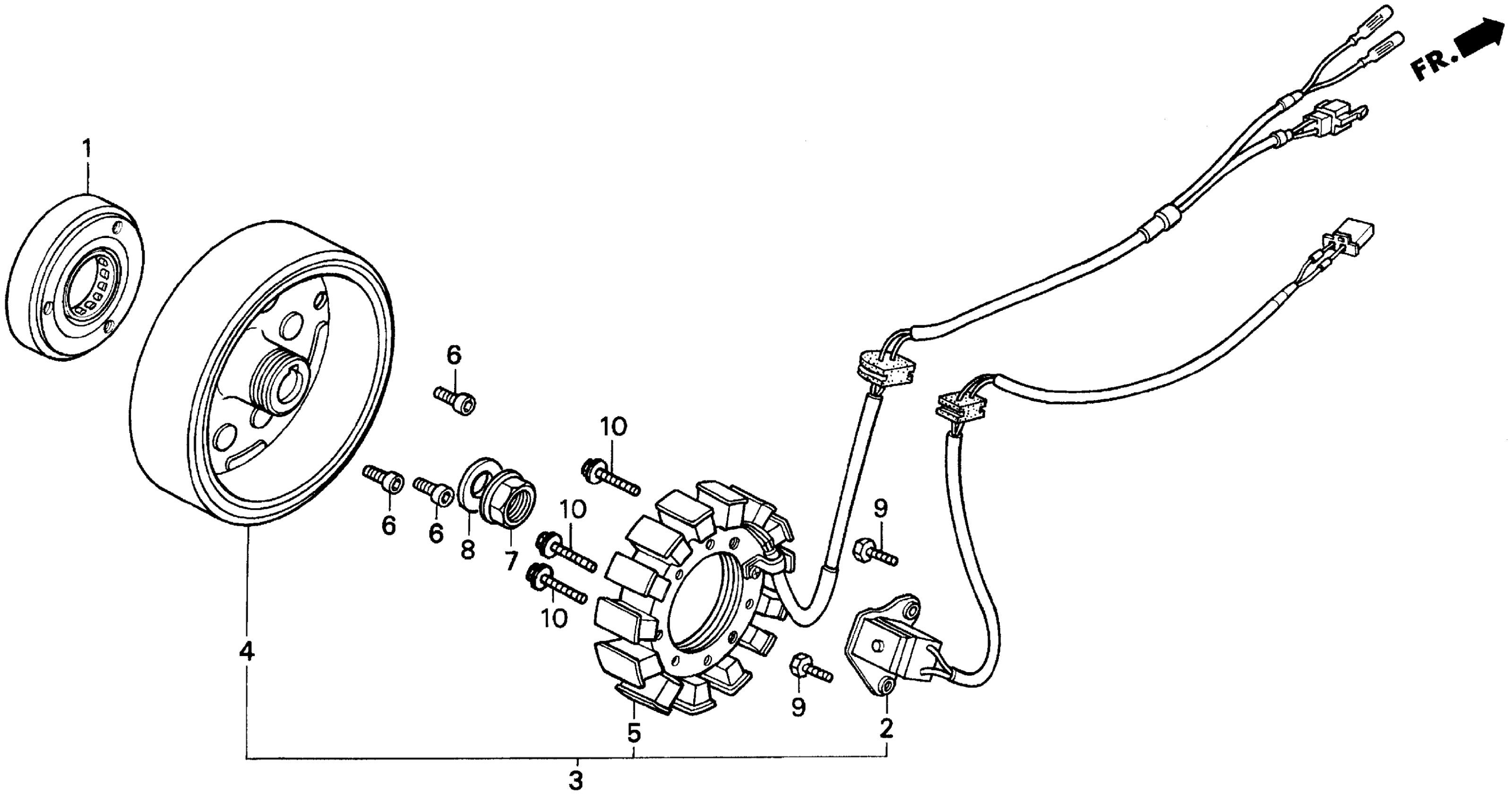

Honda CN250A (97) HELIX, JPN, VIN# JH2MF020-VK200001 ALTERNATOR Diagram

#

Description
Price

1

CLUTCH ASSY., STARTER ONE-WAY

28120-KM1-013

Unavailable

2

GENERATOR ASSY., PULSE

30300-KM1-014

Unavailable

4

FLYWHEEL

31110-KM1-024

Unavailable

5

STATOR

31120-KS4-004

Unavailable

6

BOLT, SOCKET (8X18)

90010-KM1-000

$4.85

7

NUT, FLANGE (16X1.0) This part replaces 90203-KM1-020.

90203-KRJ-791

$3.90

7

NUT, FLANGE (16X1.0)

90203-KRJ-791

$3.90

8

WASHER, THRUST (16.2X30X2.0)

90431-KM1-010

$3.75

9

BOLT, HEX. (5X16)

92101-05016-0A

$0.69

10

BOLT, FLANGE (6X32)

96001-06032-00

$1.29
