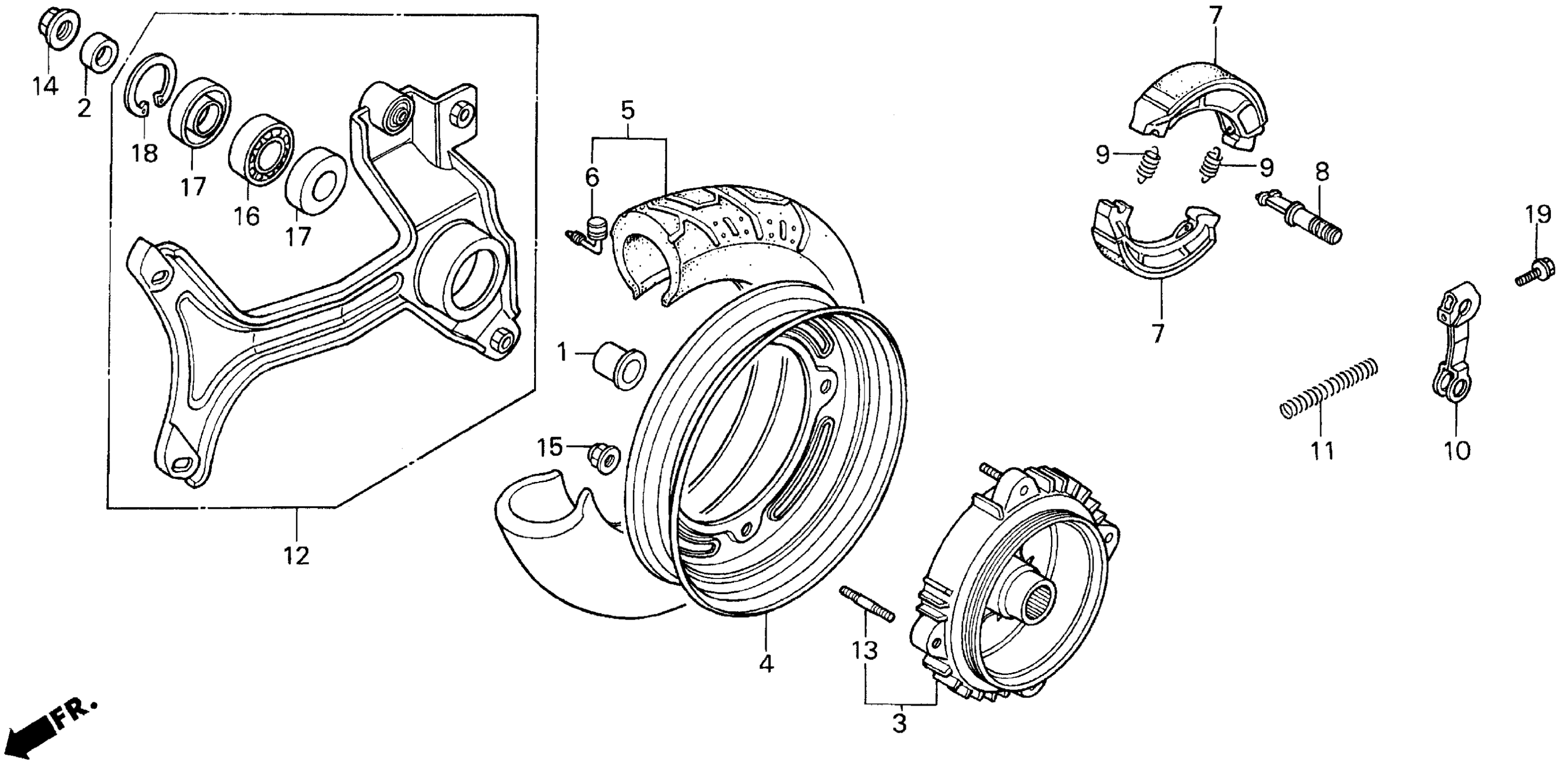

Honda CN250A (87) HELIX, JPN, VIN# JH2MF020-HK100005 TO JH2MF020-HK105132 REAR WHEEL 86-87 Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

06430-KS4-651

$33.71

NI

SHOE KIT, BRAKE This part replaces 431A0-KS4-670.

06430-KS4-651

$33.71

1

COLLAR A, RR. AXLE

42311-KM1-000

Unavailable

2

COLLAR B, RR. AXLE

42312-KM1-000

$6.32

3

HUB SET *NH132M* This part replaces 42610-KS4-305ZA.

42610-KS4-305ZB

Unavailable

4

RIM, RR. *NH132M* | Use up to Frame SN HK101353 This part replaces 42702-KS4-000ZA.

42702-KS4-020ZB

Unavailable

4

RIM, RR. *NH132M* | Use from Frame SN HK101354 This part replaces 42702-KS4-010ZA.

42702-KS4-020ZB

Unavailable

5

TIRE, RR. (120/90-10) (66J K488) (DUNLOP) This part replaces 42710-KS4-014.

42711-KS4-064

Unavailable

5

TIRE, RR. (120/90-10) (66J K488) (DUNLOP) | Use from Frame SN HK104420 This part replaces 42710-KS4-024.

42711-KS4-064

Unavailable

5

TIRE, RR. (120/90-10) (66J K488) (DUNLOP) | Use from Frame SN HK104420 This part replaces 42710-KS4-034.

42711-KS4-064

Unavailable

5

TIRE, RR. (120/90-10) (66J K488) (DUNLOP) This part replaces 42711-KS4-034.

42711-KS4-064

Unavailable

5

TIRE, RR. (120/90-10) (69J MA16A) (BS) This part replaces 42710-KS4-003.

42711-KS4-053

$103.51

5

TIRE, RR. (120/90-10) (69J MA16A) (BS) This part replaces 42711-KS4-013.

42711-KS4-053

$103.51

5

TIRE, RR. (120/90-10) (69J MA16A) (BS) This part replaces 42711-KS4-023.

42711-KS4-053

$103.51

5

TIRE, RR. (120/90-10) (69J MA16A) (BS) This part replaces 42711-KS4-033.

42711-KS4-053

$103.51

5

TIRE, RR. (120/90-10) (69J MA16A) (BS) This part replaces 42711-KS4-043.

42711-KS4-053

$103.51

5

TIRE, RR. (120/90-10) (69J MA16A) (BS)

42711-KS4-053

$103.51

6

VALVE, RIM (BS)

42753-KJ9-003

$16.06

6

VALVE, RIM (DUNLOP)

42753-KJ9-004

$14.92

6

VALVE, RIM (IRC)

42753-KJ9-005

$16.18

7

SHOE KIT, BRAKE

06430-KS4-651

$33.71

7

SHOE KIT, BRAKE This part replaces 43120-KS4-013.

06430-KS4-651

$33.71

7

SHOE KIT, BRAKE This part replaces 43120-KS4-016.

06430-KS4-651

$33.71

8

CAM, RR. BRAKE

43141-KS4-000

$16.21

9

SPRING, BRAKE SHOE

43151-329-000

$2.66

10

ARM, RR. BRAKE (NOT AVAILABLE)

43410-KS4-000

Unavailable

11

SPRING, RR. BRAKE ARM

43472-KG8-000

$3.56

12

SWINGARM ASSY., RR. This part replaces 52000-KS4-010.

52000-KS4-020

Unavailable

12

SWINGARM ASSY., RR.

52000-KS4-020

Unavailable

13

BOLT 2, STUD (8X22)

90110-KG8-900

Unavailable

14

NUT, FLANGE (16MM)

90305-ME5-003

$4.07

15

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.19

15

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

16

BEARING, RADIAL BALL (6303)

91051-KS4-003

$35.18

17

SEAL (25X47X5)

91259-KM1-003

$7.97

18

CIRCLIP (INNER) (47MM)

94521-47000

$2.21

18

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.21

19

BOLT, FLANGE (6X32)

95701-06032-00

$1.88

19

BOLT, FLANGE (6X32) This part replaces 95900-06032-00.

95701-06032-00

$1.88
