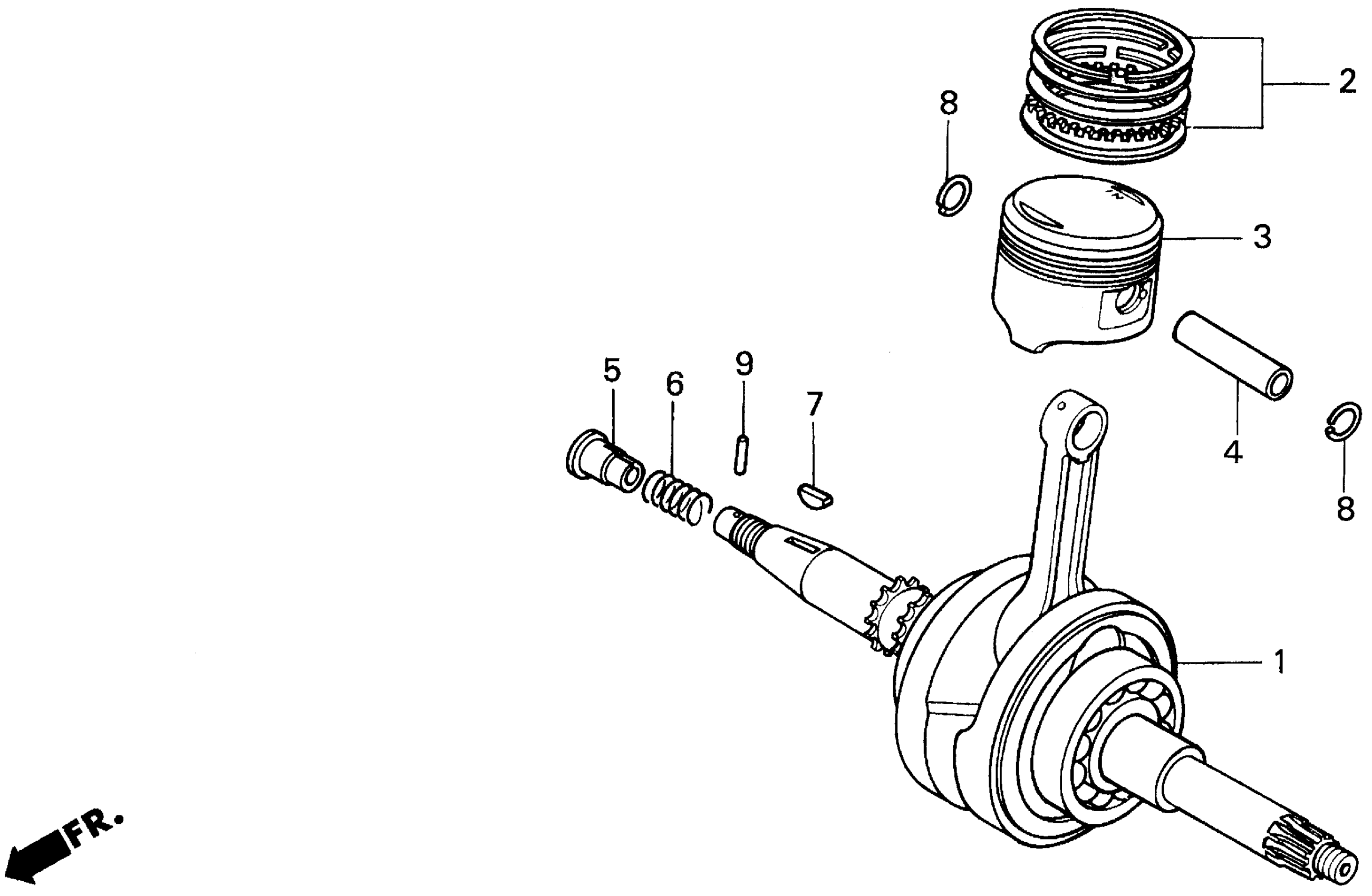

Honda CN250A (87) HELIX, JPN, VIN# JH2MF020-HK100005 TO JH2MF020-HK105132 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-KS4-000.

13000-KS4-305

Unavailable

1

CRANKSHAFT This part replaces 13000-KS4-010.

13000-KS4-305

Unavailable

1

CRANKSHAFT

13000-KS4-305

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-KAB-305.

13011-KFR-700

Unavailable

2

RING SET, PISTON (STD)

13011-KFR-700

Unavailable

2

RING SET, PISTON (STD) | Use up to Engine SN 5103860 This part replaces 13011-KS4-305.

13011-KFR-700

Unavailable

2

RING SET, PISTON (STD) This part replaces 13011-KS4-315.

13011-KFR-700

Unavailable

2

RING SET, PISTON (0.25) (RIKEN) | (Optional).

13021-KAB-305

Unavailable

2

RING SET, PISTON (0.25) (RIKEN) | (Optional). Use up to Engine SN 5103860 This part replaces 13021-KS4-305.

13021-KAB-305

Unavailable

2

RING SET, PISTON (0.25) (RIKEN) | (Optional). This part replaces 13021-KS4-315.

13021-KAB-305

Unavailable

2

RING SET, PISTON (0.50) (RIKEN) | (Optional).

13031-KAB-305

Unavailable

2

RING SET, PISTON (0.50) (RIKEN) | (Optional). Use up to Engine SN 5103860 This part replaces 13031-KS4-305.

13031-KAB-305

Unavailable

2

RING SET, PISTON (0.50) (RIKEN) | (Optional). This part replaces 13031-KS4-315.

13031-KAB-305

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) | (Optional).

13041-KAB-305

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) | (Optional). Use up to Engine SN 5103860 This part replaces 13041-KS4-305.

13041-KAB-305

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) | (Optional). This part replaces 13041-KS4-315.

13041-KAB-305

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13051-KAB-305

Unavailable

2

RING SET, PISTON (1.00) | (Optional). Use up to Engine SN 5103860 This part replaces 13051-KS4-305.

13051-KAB-305

Unavailable

2

RING SET, PISTON (1.00) | (Optional). This part replaces 13051-KS4-315.

13051-KAB-305

Unavailable

3

PISTON (STD)

13101-KS4-030

Unavailable

3

PISTON (OS 0.25) | (Optional). Use up to Engine SN 5103860 This part replaces 13102-KS4-305.

13102-KS4-335

Unavailable

3

PISTON (OS 0.50) | (Optional). Use up to Engine SN 5103860 This part replaces 13103-KS4-305.

13103-KS4-335

Unavailable

3

PISTON (OVER SIZE) (0.75) | (Optional). Use up to Engine SN 5103860 This part replaces 13104-KS4-305.

13104-KS4-335

Unavailable

3

PISTON (OVER SIZE) (0.75) | (Optional).

13104-KS4-335

Unavailable

3

PISTON (1.00) | (Optional). Use up to Engine SN 5103860 This part replaces 13105-KS4-305.

13105-KS4-335

Unavailable

3

PISTON (1.00) | (Optional).

13105-KS4-335

Unavailable

3

PISTON (OS 0.25) | (Optional). Use from Engine SN 5103861 This part replaces 13102-KS4-315.

13102-KS4-335

Unavailable

3

PISTON (OS 0.50) | (Optional). Use from Engine SN 5103861 This part replaces 13103-KS4-315.

13103-KS4-335

Unavailable

3

PISTON (OVER SIZE) (0.75) | (Optional). Use from Engine SN 5103861 This part replaces 13104-KS4-315.

13104-KS4-335

Unavailable

3

PISTON (OVER SIZE) (0.75) | (Optional). Use from Engine SN 5103861 This part replaces 13104-KS4-325.

13104-KS4-335

Unavailable

3

PISTON (1.00) | (Optional). Use from Engine SN 5103861 This part replaces 13105-KS4-315.

13105-KS4-335

Unavailable

3

PISTON (1.00) | (Optional). Use from Engine SN 5103861 This part replaces 13105-KS4-325.

13105-KS4-335

Unavailable

4

PIN, PISTON

13111-KM1-000

$20.97

5

THROUGH, OIL

15441-149-000

$10.12

6

SPRING, OIL THROUGH

15447-149-000

$2.92

7

KEY, WOODRUFF (25X14X4) | Use up to Engine SN 5101367 This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

7

KEY, WOODRUFF (25X14X4) | Use up to Engine SN 5101367

90701-HB6-010

$3.78

7

KEY, WOODRUFF (4MM) | Use from Engine SN 5101368

90741-KS4-020

$2.79

8

CLIP, PISTON PIN (17MM)

94601-17000

$1.56

9

ROLLER (2X13.8)

96220-20138

$1.49
