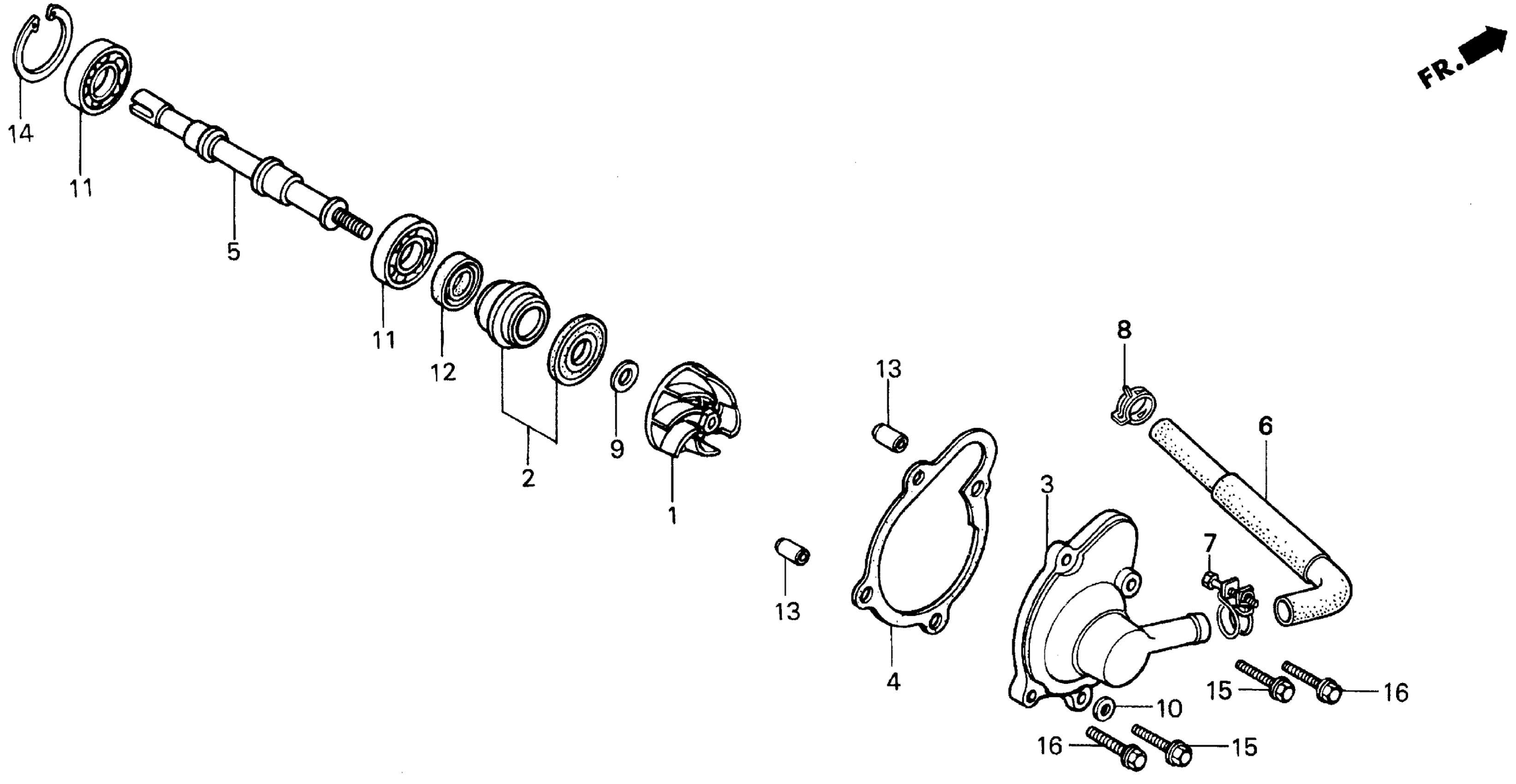

Honda CN250A (86) HELIX, JPN, VIN# JH2MF020-GK000016 TO JH2MF020-GK008681 WATER PUMP Diagram

#

Description
Price

1

IMPELLER, WATER PUMP This part replaces 19215-KM1-000.

19215-KM1-010

Unavailable

1

IMPELLER, WATER PUMP

19215-KM1-010

Unavailable

2

SEAL, MECHANICAL

19217-657-023

$53.27

3

COVER, WATER PUMP

19221-KM1-000

Unavailable

4

GASKET, WATER PUMP This part replaces 19229-KJ9-000.

19229-KJ9-306

Unavailable

4

GASKET, WATER PUMP

19229-KJ9-306

Unavailable

5

SHAFT, WATER PUMP

19231-KM1-010

Unavailable

6

HOSE A, WATER | Use up to Engine SN 5001778 This part replaces 19501-KS4-000.

19501-KS4-020

Unavailable

6

HOSE A, WATER This part replaces 19501-KS4-010.

19501-KS4-020

Unavailable

6

HOSE A, WATER

19501-KS4-020

Unavailable

7

CLAMP, WATER HOSE (25MM)

19506-KM1-003

$8.69

8

CLIP B, HOSE

19514-ME9-003

$5.64

9

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.34

10

WASHER A (6MM)

90478-700-000

$1.49

11

BEARING, RADIAL BALL (6800) (TOYO)

91004-KM1-003

Unavailable

11

BEARING, RADIAL BALL (6800) (TOYO) This part replaces 91004-KM1-004.

91004-KM1-003

Unavailable

11

BEARING, RADIAL BALL (6800) (TOYO) This part replaces 91004-KM1-005.

91004-KM1-003

Unavailable

12

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-KM1-003.

91202-HC0-003

$3.54

12

OIL SEAL (10X20X5) (ARAI) This part replaces 91201-KM1-005.

91202-HC0-003

$3.54

12

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.54

13

PIN, DOWEL (8X14)

94301-08140

$2.25

14

CIRCLIP (INNER) (19MM)

94520-19000

Unavailable

15

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

15

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

16

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
