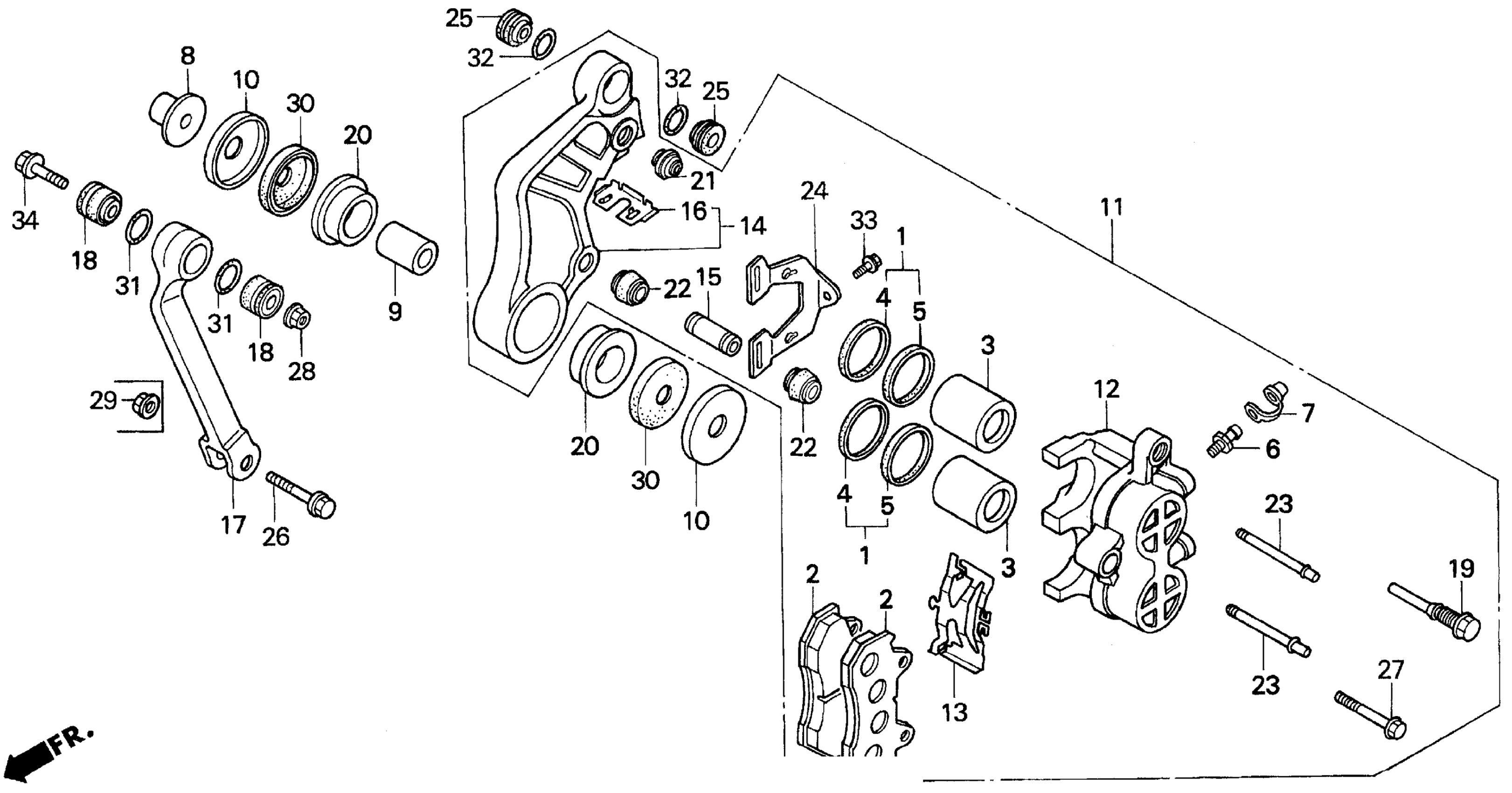

Honda CN250A (86) HELIX, JPN, VIN# JH2MF020-GK000016 TO JH2MF020-GK008681 FRONT BRAKE CALIPER 86-93 Diagram

#

Description
Price

NI

PAD SET This part replaces 431A0-MJ6-724.

06455-MM9-405

$36.44

NI

PAD SET This part replaces 45105-KL8-405.

06455-MM9-405

$36.44

2

PAD, FR. This part replaces 43105-MJ6-721.

45105-MM9-782

$24.40

2

PAD, FR. This part replaces 43105-MJ6-722.

45105-MM9-782

$24.40

2

PAD, FR. This part replaces 43105-MJ6-723.

45105-MM9-782

$24.40

2

PAD, FR. This part replaces 43105-MJ6-724.

45105-MM9-782

$24.40

2

PAD, FR. This part replaces 45105-KL8-712.

45105-MM9-782

$24.40

2

PAD, FR.

45105-MM9-782

$24.40

3

PISTON

43107-MA3-006

$32.99

4

DUST SEAL

43109-MA3-006

$5.73

5

SEAL, PISTON

43209-MA3-006

$7.04

6

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

7

CAP, BLEEDER

43353-461-771

$5.05

8

COLLAR A, FR. BRAKE

44312-KM1-000

Unavailable

9

COLLAR B, FR. BRAKE

44313-KM1-000

Unavailable

10

CAP, FR. BRACKET SEAL

44314-KM1-000

Unavailable

11

CALIPER ASSY., L. FR. (NISSIN) This part replaces 45100-KS4-006.

45100-KS4-405

Unavailable

11

CALIPER ASSY., L. FR. (NISSIN) This part replaces 45100-KS4-016.

45100-KS4-405

Unavailable

11

CALIPER ASSY., L. FR. (NISSIN) This part replaces 45100-KS4-026.

45100-KS4-405

Unavailable

11

CALIPER ASSY., L. FR. (NISSIN)

45100-KS4-405

Unavailable

12

CALIPER, L. (NOT AVAILABLE)

45101-KS4-006

Unavailable

13

SPRING, PAD

45108-MA3-006

$6.28

14

BRACKET, L. FR.

45110-KS4-006

Unavailable

15

SLEEVE

45111-MA3-006

$13.38

16

RETAINER, BRACKET

45112-445-631

$8.98

17

LINK, TORQUE (NOT AVAILABLE)

45122-KS4-000

Unavailable

18

BUSH A, TORQUE LINK

45123-KM1-000

Unavailable

19

BOLT, PIN

45131-MA3-006

$17.59

20

BUSH, FR. BRAKE MASTER CYLINDER

45132-KM1-003

$16.11

21

BOOT B

45133-MA3-006

$5.46

22

BOOT, PIN

45133-166-016

$3.85

23

PIN, HANGER

45215-MA3-006

$12.77

24

PLATE

45217-MJ0-006

Unavailable

25

BUSH, CALIPER BRACKET

51315-KM1-000

$12.49

26

BOLT, FLANGE (8X40)

90103-KS4-000

Unavailable

27

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

27

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07

28

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

29

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

29

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

30

OIL SEAL (31.8X40X4) | Use up to Frame SN GK004958 This part replaces 91256-KM1-003.

91256-KM1-004

$7.97

30

OIL SEAL (31.8X40X4) | Use up to Frame SN GK004958

91256-KM1-004

$7.97

30

OIL SEAL (31.8X40X4)

91256-KM1-004

$7.97

31

O-RING A, TORQUE LINK (NOK) This part replaces 91353-KM1-003.

91353-KM1-004

$2.33

31

O-RING A, TORQUE LINK (NOK)

91353-KM1-004

$2.33

32

O-RING (17.8X1.9) (NOK)

91322-PT0-003

$2.58

32

O-RING (17.8X1.9) (NOK) This part replaces 91354-KM1-003.

91322-PT0-003

$2.58

32

O-RING (17.8X1.9) (NOK) This part replaces 91354-KM1-004.

91322-PT0-003

$2.58

33

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

33

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

34

BOLT, FLANGE (10X45) This part replaces 95800-10045-00.

95801-10045-00

$2.16

34

BOLT, FLANGE (10X45)

95801-10045-00

$2.16
