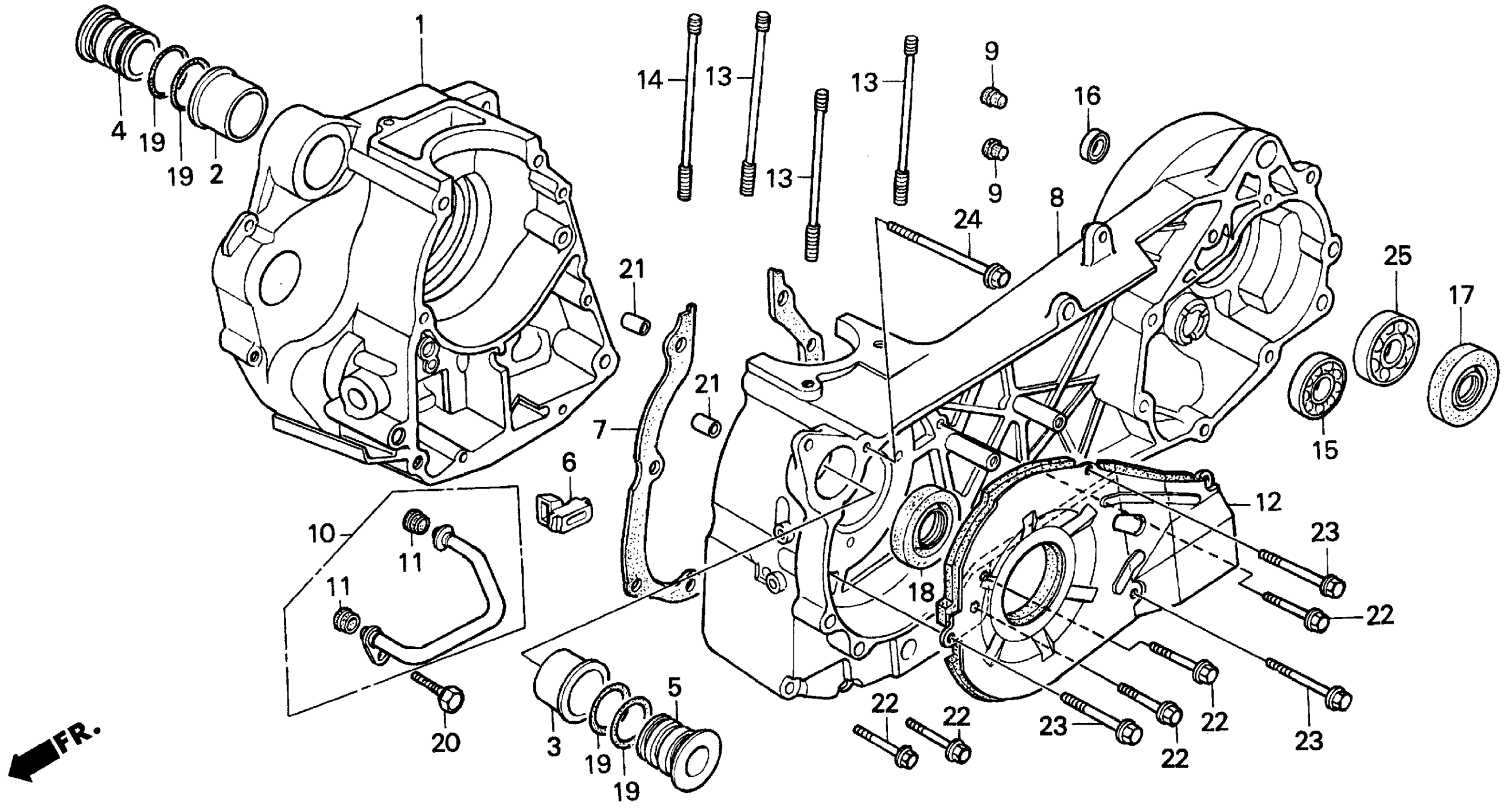

Honda CN250A (86) HELIX, JPN, VIN# JH2MF020-GK000016 TO JH2MF020-GK008681 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-KS4-000.

11100-KS4-010

Unavailable

1

CRANKCASE, R.

11100-KS4-010

Unavailable

2

BUSH, R. ENGINE HANGER (OUTER)

11103-KJ9-750

$15.67

3

BUSH, L. ENGINE HANGER (OUTER) This part replaces 11104-KJ9-750.

11104-KJ9-751

$15.50

3

BUSH, L. ENGINE HANGER (OUTER)

11104-KJ9-751

$15.50

4

BUSH, ENGINE HANGER (INNER)

11105-KJ9-750

$19.18

5

BUSH, ENGINE HANGER (INNER)

11105-KJ9-750

$19.18

5

BUSH, ENGINE HANGER (INNER) | Use from Engine SN 5000350 This part replaces 11105-KS4-000.

11105-KJ9-750

$19.18

6

RUBBER, OIL FENCE

11121-KM1-000

Unavailable

7

GASKET, R. CRANKCASE This part replaces 11191-KM1-010.

11191-KS4-690

$8.75

7

GASKET, R. CRANKCASE This part replaces 11191-KM1-306.

11191-KS4-690

$8.75

7

GASKET, R. CRANKCASE

11191-KS4-690

$8.75

8

CRANKCASE, L. This part replaces 11200-KS4-000.

11200-KS4-010

Unavailable

8

CRANKCASE, L.

11200-KS4-010

Unavailable

9

RUBBER, SPRING GUIDE

11202-GC7-300

Unavailable

10

PIPE B, OIL

15520-KM1-000

$22.66

11

SEAL, RUBBER

15525-KM1-000

$3.43

12

INSULATOR, HEAT (NOT AVAILABLE)

19600-KS4-671

Unavailable

13

BOLT A, STUD (8MM) This part replaces 90031-KM1-000.

90031-KM1-010

$7.70

13

BOLT A, STUD (8MM)

90031-KM1-010

$7.70

14

BOLT B, STUD (8MM) This part replaces 90032-KM1-000.

90032-KM1-010

Unavailable

14

BOLT B, STUD (8MM)

90032-KM1-010

Unavailable

15

BEARING, RADIAL BALL (6301) (NTN CORP.) This part replaces 91003-KS4-000.

91003-KS4-003

$26.75

15

BEARING, RADIAL BALL (6301TMB) (NTN)

91003-KS4-003

$26.75

16

OIL SEAL (14X20X3.2)

91201-434-003

$4.26

16

OIL SEAL (14X20X3.2) This part replaces 91201-434-005.

91201-434-003

$4.26

17

OIL SEAL (34X52X5) (NOK) This part replaces 91253-KM1-000.

91253-KM1-003

$9.18

17

OIL SEAL (34X52X5) (NOK)

91253-KM1-003

$9.18

17

OIL SEAL (34X52X5) (NOK) This part replaces 91253-KM1-005.

91253-KM1-003

$9.18

18

OIL SEAL (27.9X40X8) (ARAI)

91261-KM1-003

$9.55

18

OIL SEAL (27.9X40X8) (ARAI) This part replaces 91261-KM1-005.

91261-KM1-003

$9.55

19

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

21

PIN A, DOWEL (10X14)

94301-10140

$2.28

22

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

22

BOLT, FLANGE (6X60) This part replaces 95900-06060-00.

95701-06060-00

$1.49

23

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

23

BOLT, FLANGE (6X70) This part replaces 95900-06070-00.

95701-06070-00

$2.19

24

BOLT, FLANGE (6X125)

95701-06125-00

Unavailable

24

BOLT, FLANGE (6X125) This part replaces 95900-06125-00.

95701-06125-00

Unavailable

25

BEARING, RADIAL BALL (6205UU)

96150-62053-10

Unavailable
