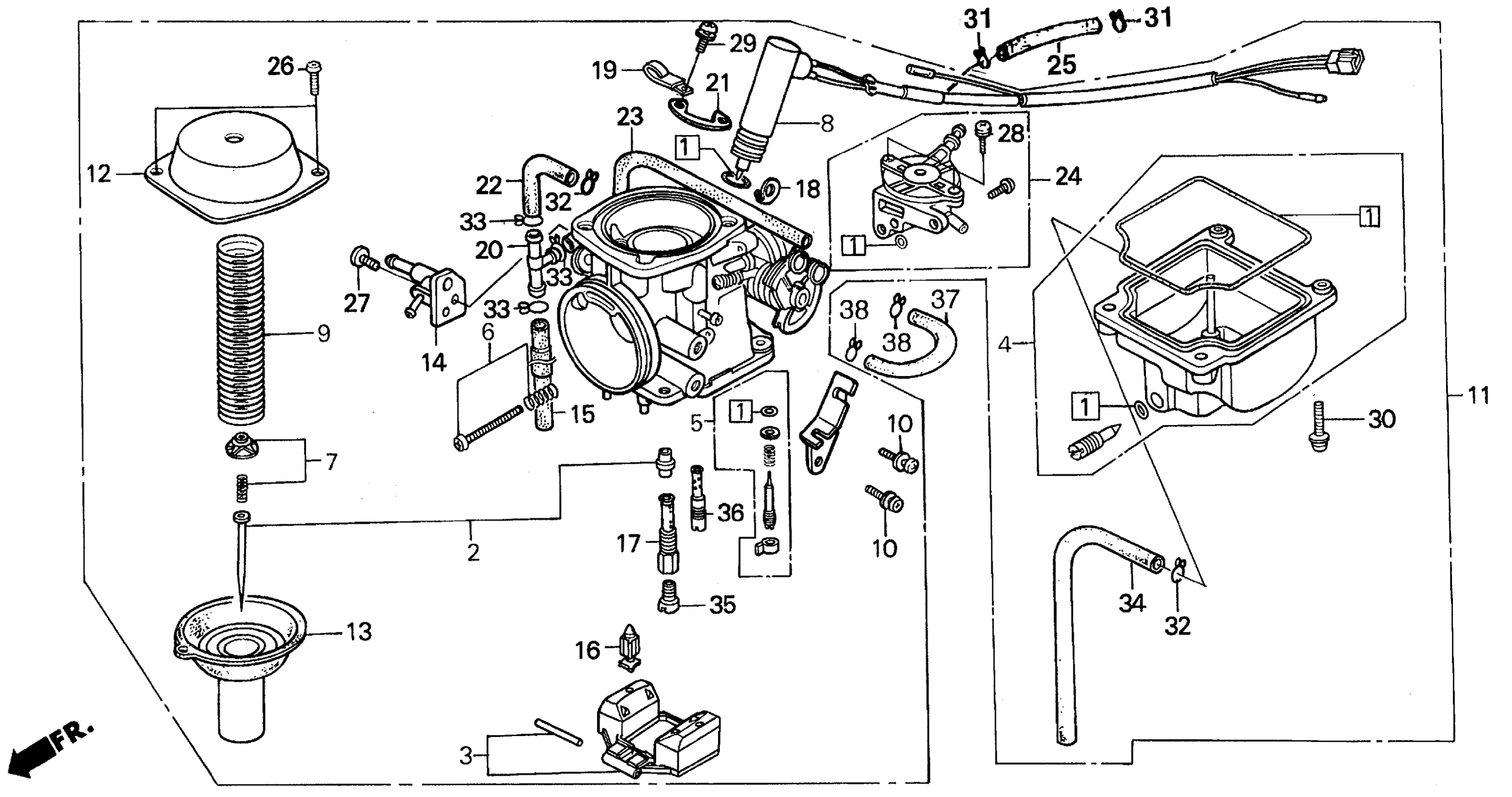

Honda CN250A (86) HELIX, JPN, VIN# JH2MF020-GK000016 TO JH2MF020-GK008681 CARBURETOR Diagram

#

Description
Price

1

GASKET SET A This part replaces 16010-KS4-003.

16010-KS4-305

$43.94

1

GASKET SET A

16010-KS4-305

$43.94

2

NEEDLE SET, JET

16012-KS4-721

Unavailable

3

FLOAT SET

16013-KR3-980

$55.27

3

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$55.27

4

CHAMBER SET, FLOAT

16015-KM1-013

Unavailable

5

SCREW SET This part replaces 16016-KR3-671.

16016-MY6-770

$21.27

5

SCREW SET This part replaces 16016-ME5-671.

16016-MY6-770

$21.27

5

SCREW SET

16016-MY6-770

$21.27

6

SCREW SET B

16028-KFR-701

Unavailable

6

SCREW SET B This part replaces 16028-KS4-003.

16028-KFR-701

Unavailable

7

PLATE SET, VALVE

16037-MA6-003

Unavailable

8

VALVE ASSY., STARTER ENRICHMENT THERMAL This part replaces 16046-KS4-003.

16046-KS4-840

$100.74

8

VALVE ASSY., STARTER ENRICHMENT THERMAL This part replaces 16046-KS4-013.

16046-KS4-840

$100.74

8

VALVE ASSY., STARTER ENRICHMENT THERMAL This part replaces 16046-KS4-023.

16046-KS4-840

$100.74

8

VALVE ASSY., STARTER ENRICHMENT THERMAL

16046-KS4-840

$100.74

9

SPRING

16051-MA6-003

Unavailable

10

SCREW, PAN (5X12)

16080-KJ9-003

$3.41

11

CARBURETOR ASSY. This part replaces 16100-KS4-673.

16100-KS4-678

Unavailable

12

TOP

16107-KM1-003

$43.80

13

PISTON, VACUUM This part replaces 16111-KS4-003.

16111-KS4-013

Unavailable

13

PISTON, VACUUM

16111-KS4-013

Unavailable

14

HEATER

16136-KM1-003

Unavailable

16

VALVE, FLOAT

16155-KM1-771

$27.70

17

HOLDER, NEEDLE JET

16165-449-771

$31.28

19

CLIP, PLATE

16179-ME9-751

$10.15

21

PLATE, SET

16186-GJ2-004

Unavailable

22

TUBE, AIR VENT

16199-GC8-004

Unavailable

24

VALVE ASSY., AIR CUT (NOT AVAILABLE)

16510-KS4-673

Unavailable

25

TUBE, AIR VENT This part replaces 16143-195-731.

16199-428-405

$3.10

25

TUBE, AIR VENT

16199-428-405

$3.10

26

SCREW, PAN (4X8)

93500-04008-0H

$1.49

26

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

27

SCREW, PAN (5X12)

93500-05012-0H

$1.49

27

SCREW, PAN (5X12) This part replaces 93500-05012-1H.

93500-05012-0H

$1.49

28

SCREW-WASHER (4X8)

93892-04008-08

$1.49

29

SCREW-WASHER (4X8)

93892-04008-08

$1.49

30

SCREW-WASHER (4X12)

93892-04014-00

$1.49

31

CLIP, TUBE (B7)

95002-02070

$1.80

31

CLIP, TUBE (B6.5)

95002-02659

$1.49

32

CLIP, TUBE (B8)

95002-02080

$1.80

34

BULK HOSE, VINYL (4.5X8X1000) (4.5X8X420)

95003-09001-60M

$3.45

35

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

35

JET (#110) This part replaces 99101-393-1100.

99101-MBA-1100

$9.11

36

JET, SLOW (#38) This part replaces 99103-MA1-0380.

99104-MAZ-0380

$18.02

36

JET, SLOW (#38)

99104-MAZ-0380

$18.02

37

TUBE, AIR VENT This part replaces 16143-195-731.

16199-428-405

$3.10

37

TUBE, AIR VENT

16199-428-405

$3.10

38

CLIP, TUBE (B6.5)

95002-02659

$1.49
