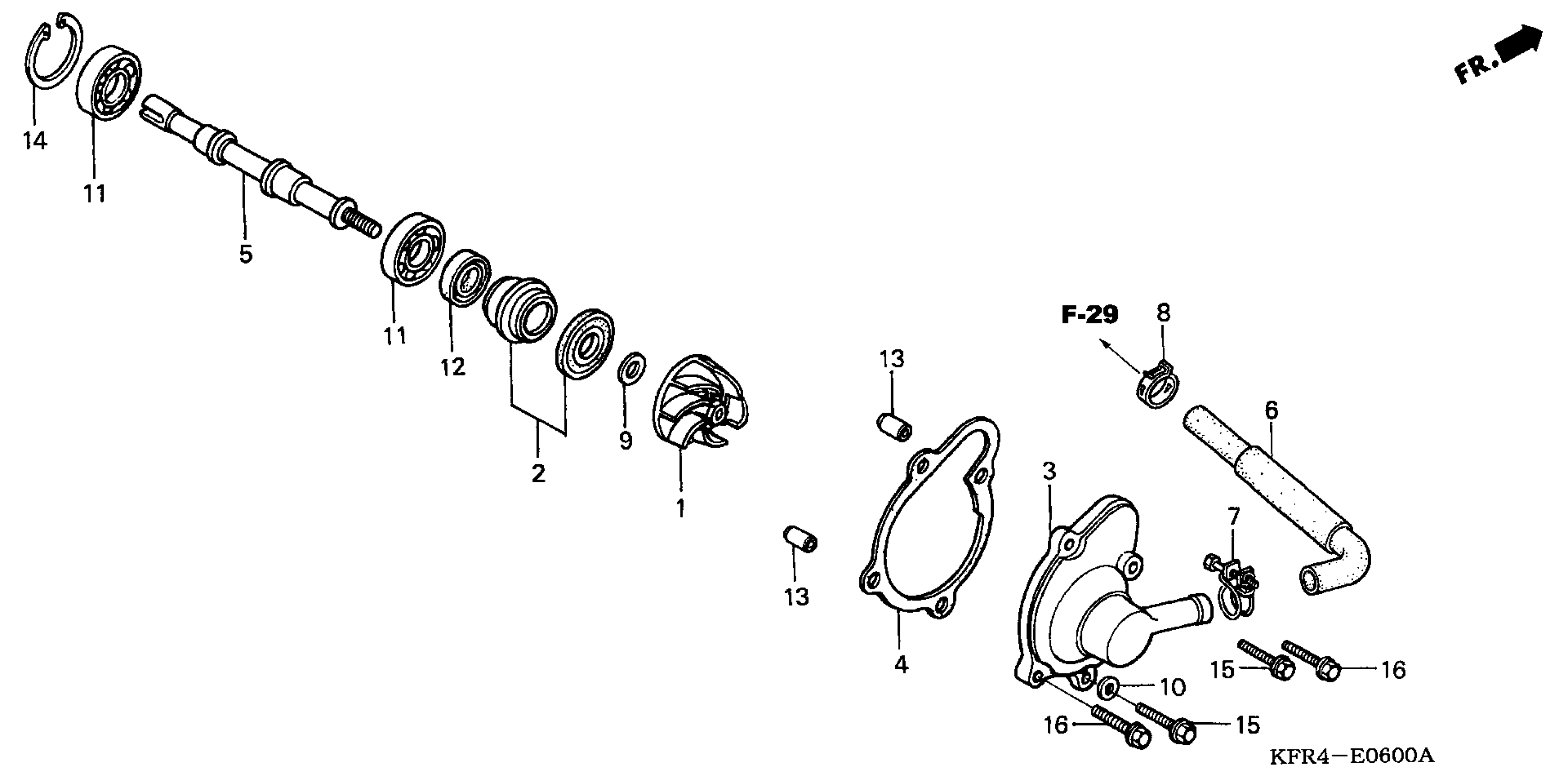

Honda CN250A (07) HELIX, JPN, VIN# JH2MF020-7K000001 WATER PUMP Diagram

IMPELLER, WATER PUMP

19215-KM1-010

Unavailable

SEAL, MECHANICAL

19217-657-023

$53.27

COVER, WATER PUMP

19221-KM1-000

Unavailable

GASKET, WATER PUMP

19229-KS4-690

$6.05

SHAFT, WATER PUMP

19231-KM1-010

Unavailable

HOSE A, WATER

19501-KS4-020

Unavailable

CLAMP, WATER HOSE (25MM)

19506-KM1-003

$8.69

CLIP B, HOSE

19514-ME9-003

$5.64

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.34

WASHER, SEALING

90463-KFR-700

$2.34

BEARING, RADIAL BALL (6800) (TOYO)

91004-KM1-003

Unavailable

OIL SEAL (10X20X5) (ARAI)

91202-HC0-003

$3.54

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (INNER) (19MM)

94520-19000

Unavailable

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
