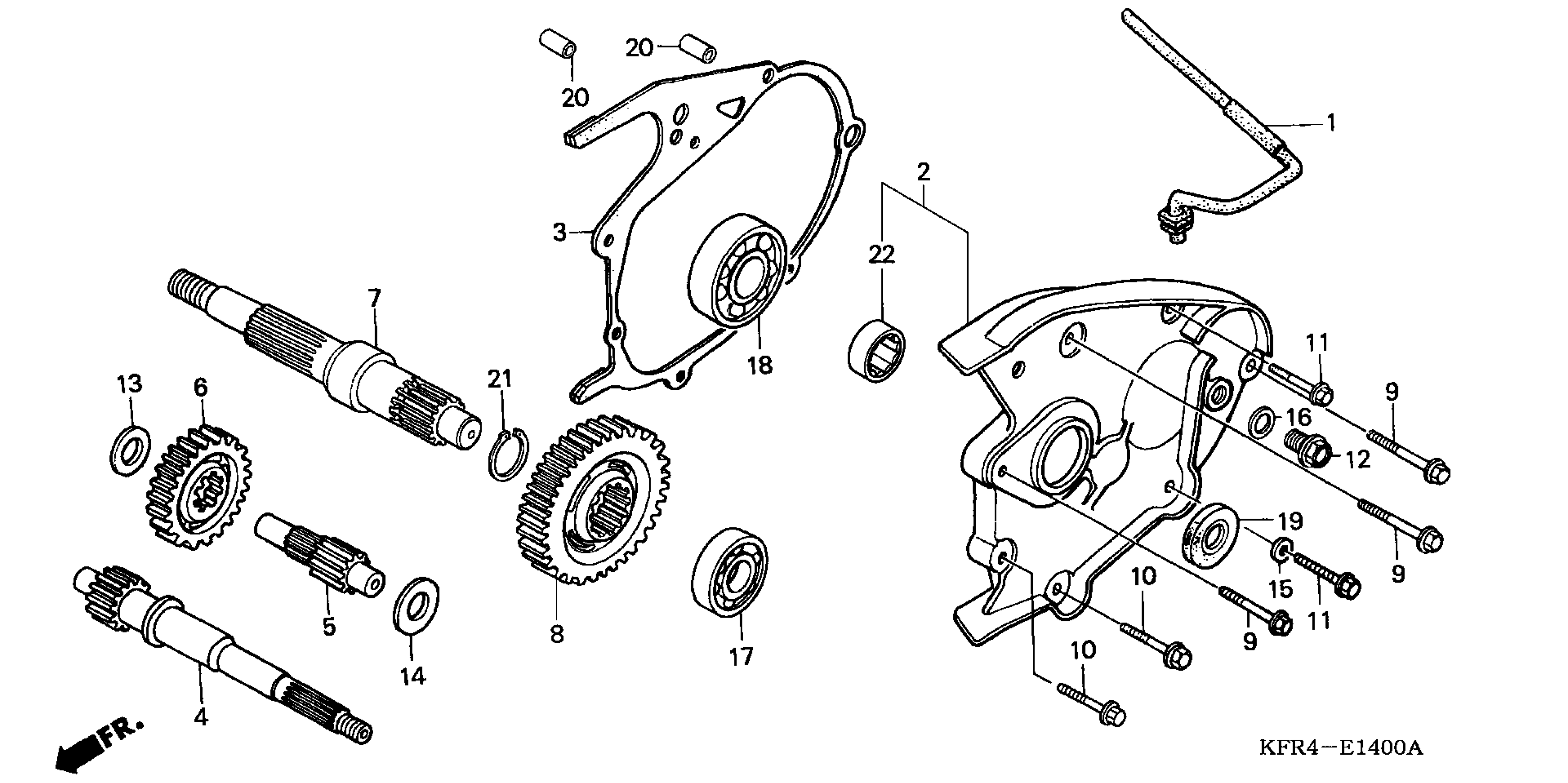

Honda CN250A (07) HELIX, JPN, VIN# JH2MF020-7K000001 TRANSMISSION Diagram

#

Description
Price

1

TUBE, TRANSMISSION BREATHER

11211-KS4-010

Unavailable

2

COVER, TRANSMISSION

21300-KM1-040

Unavailable

3

GASKET, TRANS CVR This part replaces 21395-KS4-690.

21395-KS4-692

Unavailable

3

GASKET, TRANS CVR This part replaces 21395-KS4-691.

21395-KS4-692

Unavailable

4

SHAFT, DRIVE (14T)

23410-KS4-010

Unavailable

5

COUNTERSHAFT (14T)

23421-KS4-000

Unavailable

6

GEAR, COUNTER (37T)

23422-KM1-000

$67.34

7

SHAFT, FINAL

23431-KAB-000

Unavailable

8

GEAR, FINAL (35T)

23432-KS4-000

Unavailable

9

BOLT, FLANGE (8X39)

90021-KM1-000

$4.43

10

BOLT, FLANGE (8X27)

90022-KM1-000

$3.30

11

BOLT, FLANGE (6X32) This part replaces 90023-KS4-000.

90038-MT3-000

Unavailable

12

CHECK BOLT, OIL LEVEL

90035-KZ1-000

Unavailable

13

WASHER, THRUST (14X32X1)

90411-KM1-000

$2.39

14

WASHER, THRUST (14MM)

90454-350-000

$3.74

15

WASHER A (6MM)

90478-700-000

$1.49

16

WASHER (10.2MM)

90481-001-020

$2.92

17

BEARING, RADIAL BALL (6304)

91001-GF6-004

$20.45

17

BEARING, RADIAL BALL (6304) This part replaces 91001-035-008.

91001-GF6-004

$20.45

18

BEARING, RADIAL BALL (62/22)

91005-KS4-003

$40.44

19

OIL SEAL (22X35X5)

91251-KM1-003

$6.96

20

PIN, DOWEL (10X16)

94301-10160

$2.28

21

CIRCLIP (OUTER) (24MM)

94510-24000

Unavailable

22

BEARING, NEEDLE (14X22X16)

91106-KM1-013

$19.13
